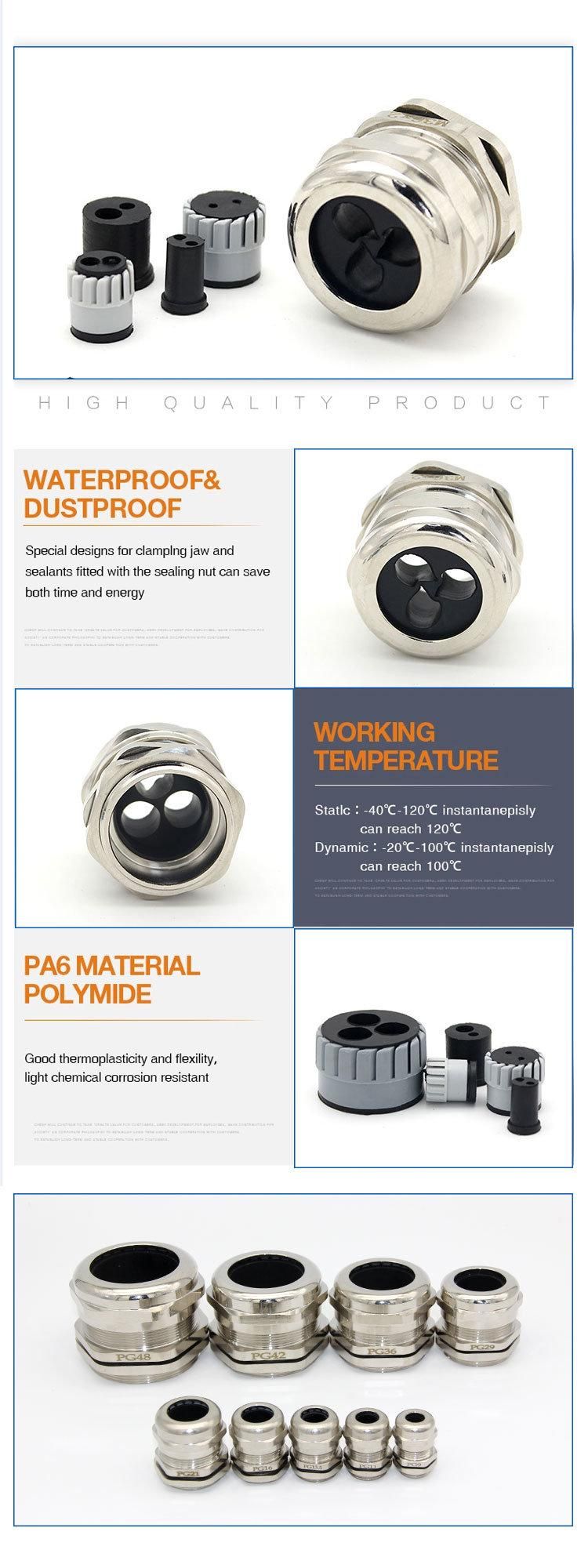

Multiple Hole Cable Gland, Brass with Nickel Plated, M Thread

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, ISO, CE
  • Surface Treatment：Nickel Plated
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M16*1.5
  • Seal Ring：NBR
  • Sealing Insert：NBR
  • Benefit：Free Samples
  • Function：Protect Wires Safely
  • Customization：Thread Can Be Increased
  • Accessories：Locknut, O-Ring
  • Warranty：1-2 Years
  • Transport Package：as Standard Carton
  • Specification：PG7-PG63
  • Trademark：Jixiang
  • Origin：Zhejiang Province, China
  • HS Code：8547901000
  • Production Capacity：1000 PCS , Week

Description

Material: Brass (with nickel plated)Claw: PASealing and Sealing Ring: NBRApprovals: ISO9001, CE (TUV)Protection Rate: IP68Temperature Resistance: -40 Degree to 100 degree, short time to 120 degreeFunction: Extremely easy installation, simply insert cable through the assembled gland and tighten gland locknut till cable is secured. These cable glands are designed to withstand water, dust, salt, acid-base, alcohol, oil and common solvent.


Multiple Hole Cable Gland, Brass with Nickel Plated, M Thread
