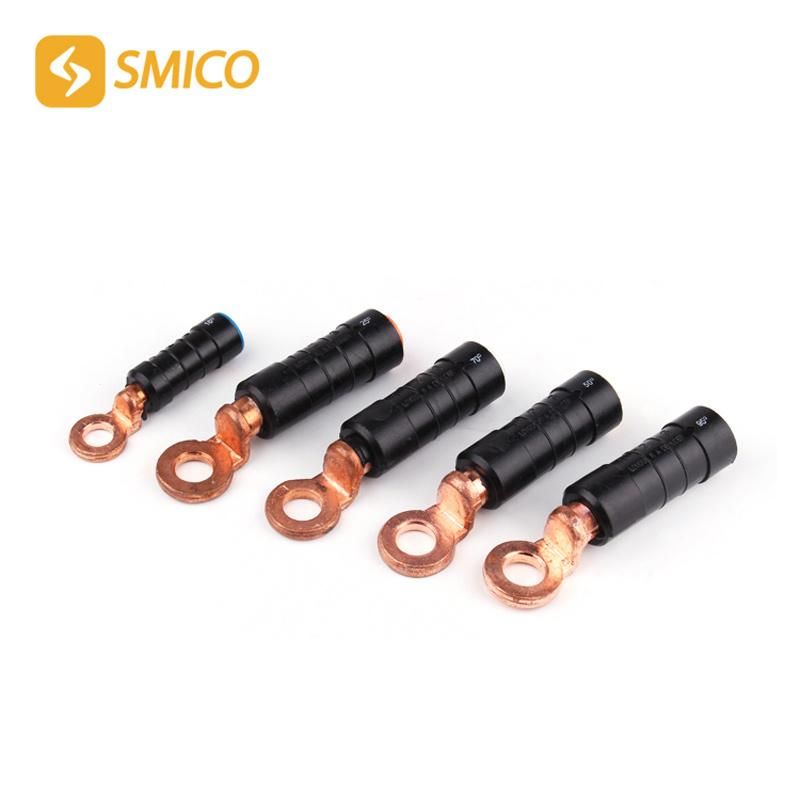

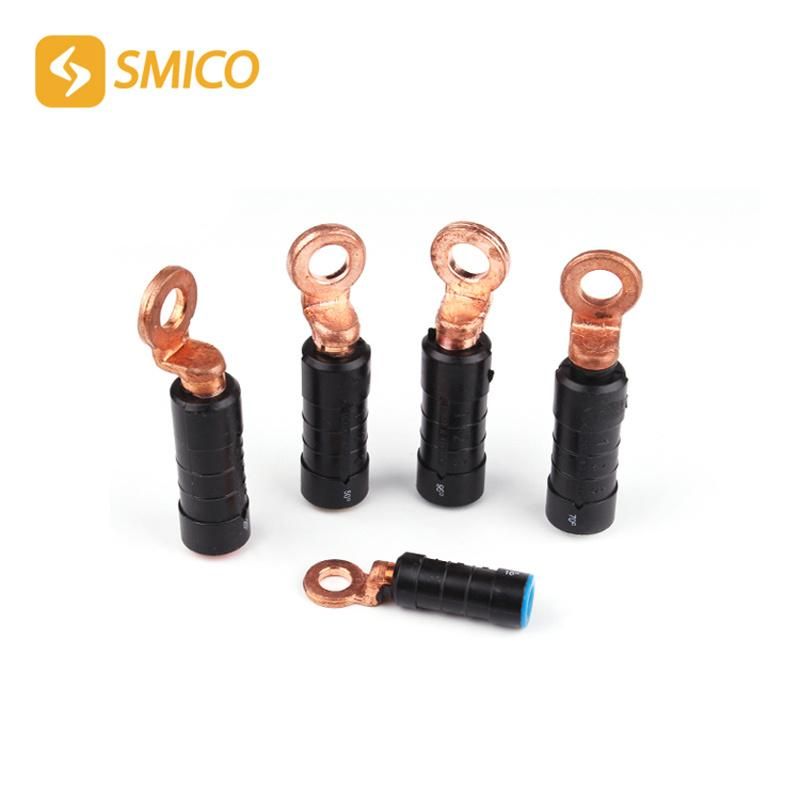

Cptau Crimp Types Pre Insulated Bimetal Cable Lug with PA66 Coating
ZHEJIANG SMICO ELECTRIC POWER EQUIPMENT CO., LTD.- Certification：CCC, CE
- Color：Black
- IP Rating：IP66
- Usage：Insulation Piercing Connector
- Material：PVC
- Type：Pre Insulated Sleeve
Base Info
- Model NO.：CPTAU
- Application：Low Voltage Power Fitting
- Body：POM
- Sleeve：Aluminium
- Cap：PVC
- Size：16-120 mm2
- Transport Package：Export Carton
- Specification：CPTAU16-120
- Trademark：SMICO
- Origin：China
- HS Code：8536909000
- Production Capacity：500, 000 PCS Per Month
Description
(Performance testing)
2.1 Mechanical performance:the grip force of the wire clamp is 1/10 bigger than the break force of the lead. It comply with GB2314-1997
2.2 Temperature rise performance: under the conditìon of big current, the temperature rise of connector is less than that of connection lead.
2.3 Heat circle performance:confirms to GB/T2317.3-2000,the beat circle trial standard for electric fitting.
2.4 Waterproof insulatìon performance:confirms to the relevant requirements in Part 2 of GB/TI3140.4-1998,
2.5 Resistance to corrosion performance: under the conditìon of SO, and salt fog, it can do three tìmes of fourteen days circle testìng.
2.6 Environmental aging performance:under the circumstance of ultraviolet, radiation, dry and moist, expose if with change of temperature and beat impulse for six weeks.
2.7 Fire-proof performance: insulation material of the connector withstands glowing filament test. Confirm to the requirements in Chapter4-1 0 of GBrr5169.4
