• Model NO.：NL- 35 , G
• HS Code：7326
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. NL- 35 / G HS Code 7326 Production Capacity 10000PCS/Month

Product Description

5 / 16 " dead end clamp for stay wire


Description:

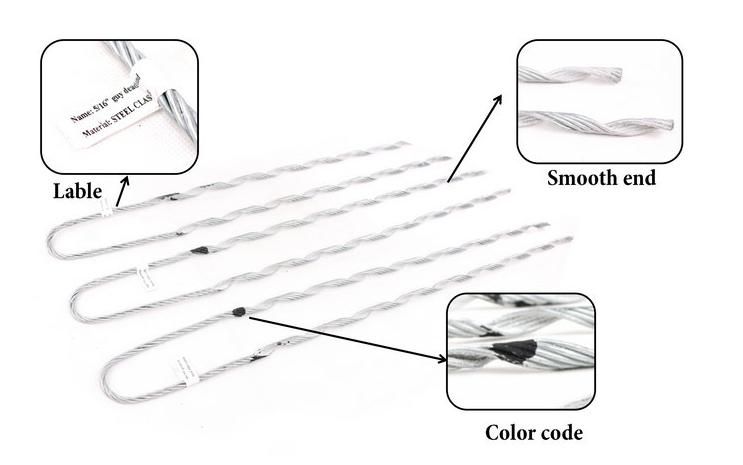

Product Name: Preformed tension clamp for stay wire, preformed guy grips
Model: NL

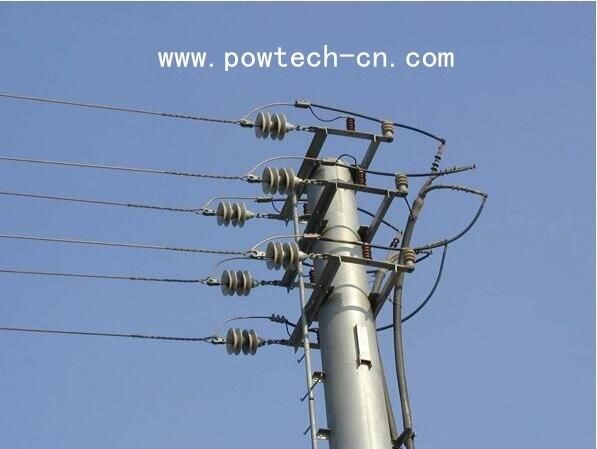

 The preformed guy grips are used for fixing terminals tower stay wire and where the large size stay wires are needed, such as electric transmission line, antenna, correspondence and lines etc, which can replace the common U-T clamps and wedge type clamps of line tower. The structure of preformed guy grip is simple. Two legs of preformed wire form an empty pipe, and its rear is a preformed stranding link. After coiled around the stay wire, the two legs of preformed wire can generate great grip strength, and stranding link is fixed on the earth anchor or tower. The unique theory and structure provide the clamp with particular function and vivid characters.

Structure and Raw Material: Rods are made into one subset with a layer of firm emery inside, in order to increase gripping power of Outer Reinforcing Rods while decreasing side pressure. Sets are color marked to reduce misalignment errors and to speed installation



Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Blue
NL-120/G	14.0	1460	120	2.2	Yellow

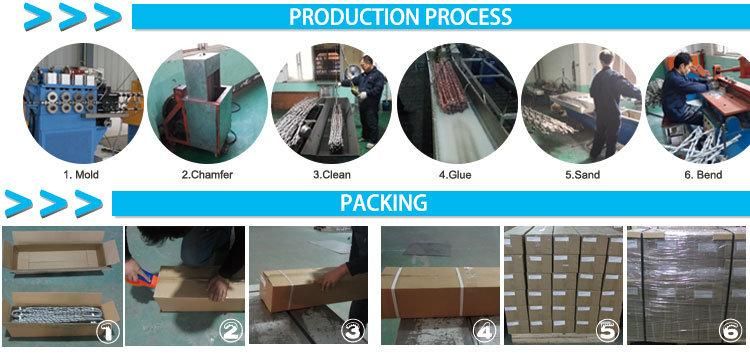

Production line:


Installation Guide:


Certificate:


Customer Company Visit:

Contact Information:
