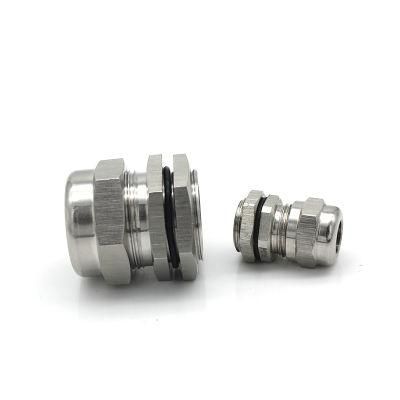

Pg7 Through Type Waterproof Brass Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：RoHS, ISO, CE, TUV
- Surface Treatment：Brass with Nickle Plated
- Color：Metallic
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：PG thread
- Claw：PA
- Approvals：IP68, ISO9000, TUV
- Sealing and Sealing Ring：NBR
- Advantages：Free Sample
- Customization：Available
- Protection Level：IP68
- Brand Name：Jixiang
- Transport Package：Standard Export Package
- Specification：36*26*19
- Trademark：Jixiang
- Origin：Zhejiang
- HS Code：854720000
- Production Capacity：500000,Month
Description
Metric Thread SeriesProduct Code Thread specification AG Avaiable cable range(mm) Thread O.D.(mm) Mounting Hole Diameter (mm) Thread length GL (mm) Spanner Size(mm) JX-M12-TR M12*1.5 6.5-3 12 12.12.2 7 14 JX-M14-TR M14*1.5 8-4 14 14-14.2 7 17 JX-M16-TR M16*1.5 8-4 16 16-16.2 8 18 JX-M18-TR M18*1.5 10-5 18 18-18.2 8 20 JX-M20-TR M20*1.5 12-6 20 20-20.2 8 22 JX-M22-TR M22*1.5 14-10 22 22-22.2 8 24 JX-M24-TR M24*1.5 14-10 24 24-24.2 9 24/27 JX-M25A-TR M25*1.5 14-10 25 25-25.2 9 24/27 JX-M25B-TR M25*1.5 16-8 25 25-25.2 9 27 JX-M25C-TR M25*1.5 18-13 25 25-25.2 9 30/27 JX-M27A-TR M27*1.5 18-13 27 27-27.2 9 30 JX-M27B-TR M27*2 18-13 27 27-27.2 9 30 JX-M28A-TR M28*1.5 18-13 28 28-28.2 9 30 JX-M28B-TR M28*2 18-13 28 28-28.2 9 30 JX-M30A-TR M30*1.5 18-13 30 30-30.2 9 30/32 JX-M30B-TR M30*2 18-13 30 30-30.2 9 30/32 JX-M32A-TR M32*1.5 22-15 32 32-32.2 10 35 JX-M32B-TR M32*1.5 20-16 32 32-32.2 10 35 JX-M32C-TR M32*2 22-15 32 32-32.2 10 35 JX-M33A-TR M33*1.5 22-15 33 33-33.2 10 35 JX-M33B-TR M33*2 22-15 33 33-33.2 10 35 JX-M36A-TR M36*1.5 25-18 36 36-36.2 10 40 JX-M36B-TR M36*2 25-18 36 36-36.2 10 40 JX-M37A-TR M37*1.5 25-18 37 37-37.2 10 40 JX-M37B-TR M37*2 25-18 37 37-37.2 10 40 JX-M40A-TR M40*1.5 25-18 40 40-40.2 11 40/45 JX-M40B-TR M40*2 25-18 40 40-40.2 11 40/45 JX-M40C-TR M40*1.5 30-22 40 40-40.2 11 45 ....... ...... ...... ...... ...... ...... ........ JX-M54A-TR M54*1.5 38-32 54 54-54.2 12 57 JX-M54B-TR M54*2 38-32 54 54-54.2 12 57 JX-M56A-TR M56*1.5 38-32 56 56-56.2 12 57/59 JX-M56B-TR M56*2 38-32 56 56-56.2 12 57/59 JX-M60A-TR M60*1.5 44-37 60 60-60.2 13 64 JX-M60B-TR M60*2 44-37 60 60-60.2 13 64 JX-M63A-TR M63*1.5 44-37 63 63-63.2 13 64/68 JX-M63B-TR M63*2 44-37 63 63-63.2 13 64/68 JX-M64A-TR M64*1.5 44-37 64 64-64.2 13 64/68 JX-M64B-TR M64*2 44-37 64 64-64.2 13 64/68 JX-M72-TR M72*2 52-42 72 72-72.2 15 78 JX-M75-TR M75*2 52-42 75 75-75.2 15 78 JX-M80-TR M80*2 62-50 80 80-80.2 15 86/88 JX-M88-TR M88*2 70-60 88 88-88.2 15 98 JX-M100-TR M100*2 80-70 100 100-100.2 15 110

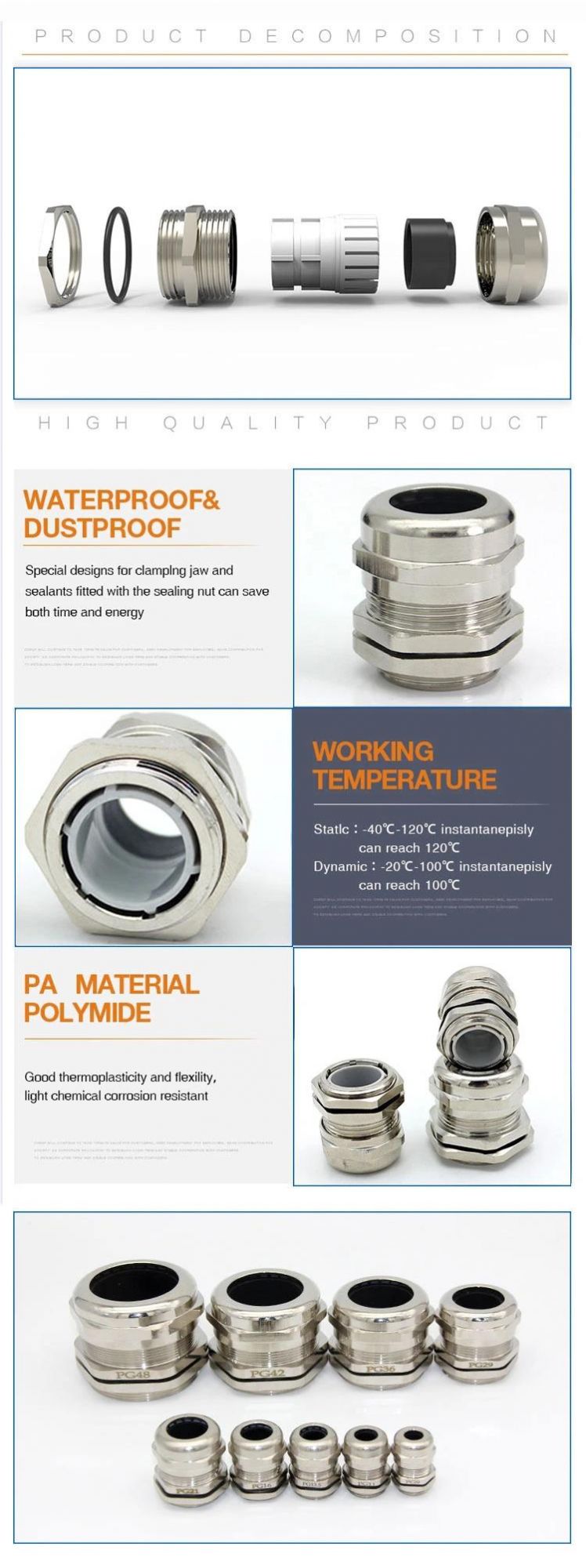

Nickel Plated Brass Cable Gland with Metric Thread and Waterproof Protection
Material: Body: brass,nickel plated
Approvals:IP68 ISO9000 TUK
Protection degree: Within the clamping range, and the use of O
sealing ring screw tight head, its protection degree can reach IP68.
Operating temperature: Static condition: -40oC to 100oC, short-time120oC.
Product Characteristics: special design of the clamp and seals, extremely easy installation, suit for the wide range of cable, strong stretching resistance, waterproof, dustproof, resist to salt, acid, alcohol, grease, and another solvent.
Applications: Waterproof cable connector cable accessory
