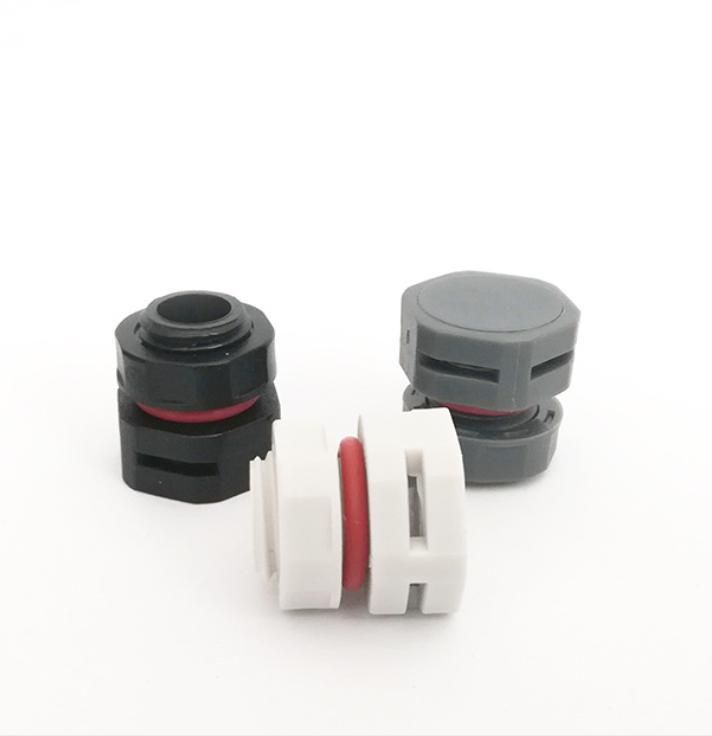

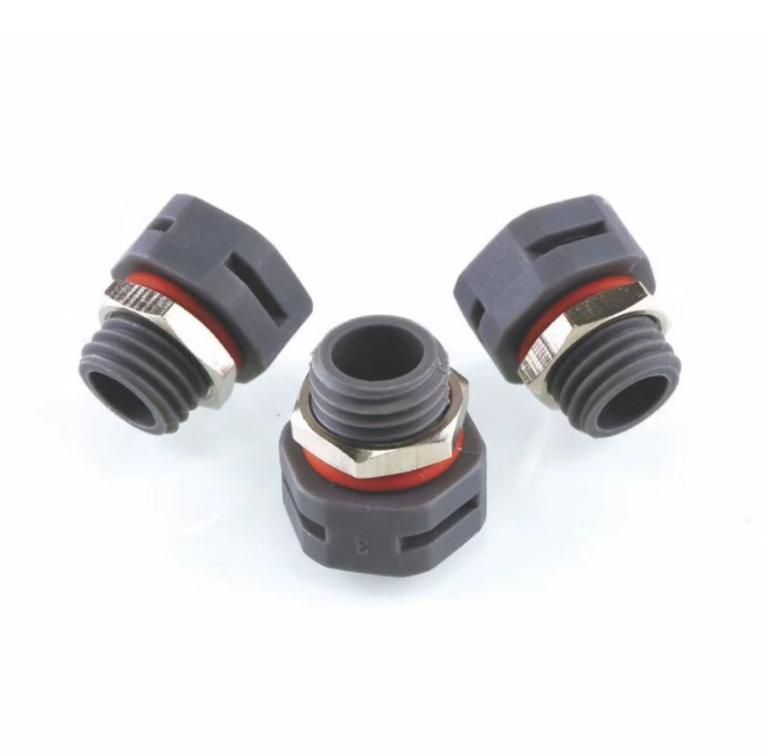

M8 M16 Plastic Breathable Vent Plug Metric Junction Box Type IP68 Vent Plug
TAIZHOU HAOCHENG ELECTRIC CO., LTD.- Certification：CCC, RoHS, ISO, CE, IP68 Certification
- Surface Treatment：PA
- Color：Grey
- IP Rating：IP68
- Material：PP,Nylon
- Type：Torsion Resistance
Base Info
- Transport Package：Standard Export Carton
- Specification：different size
- Trademark：OEM
- Origin：China
Description
Basic Info.
Transport Package Standard Export Carton Specification different size Trademark OEM Origin ChinaProduct Description

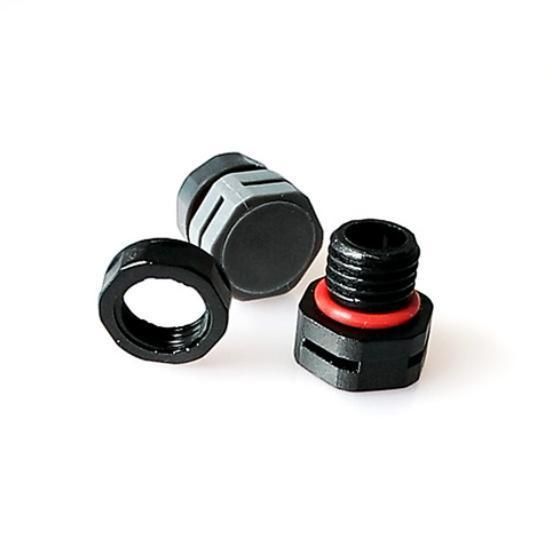

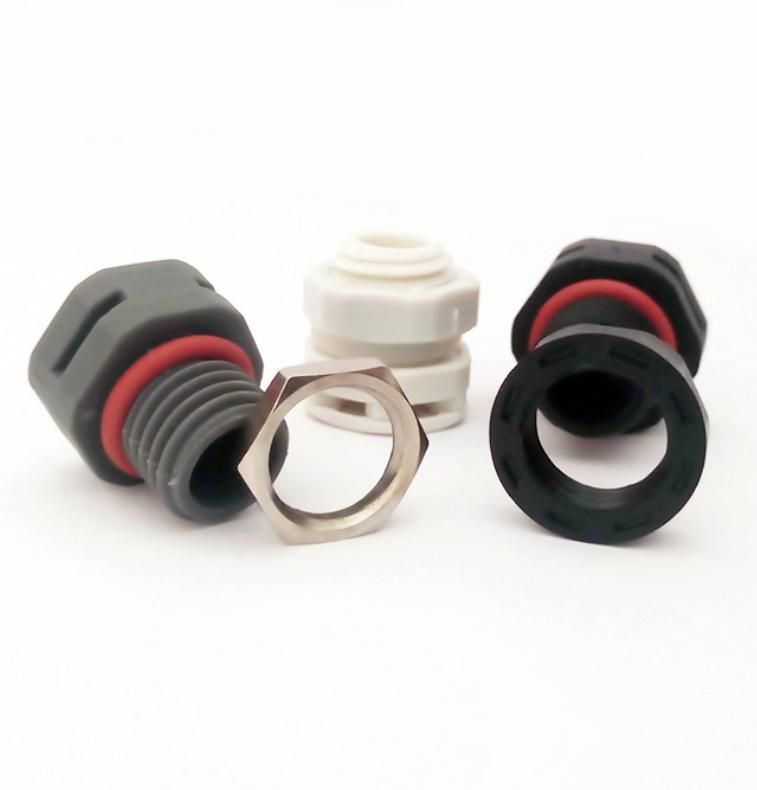

Data sheet of Black Plactic M12 Threaded Vent Valve:Screw in vents (Screw type vents) are made from over molding of ePTFE membrane and plastic particles in the mold. The design of screw can ensure the vent shave excellent sealing performance and not to separate from the housing in the process of installation and application. The durability design of screw invents can be applied to all kinds of complicated application environment. Creherit excellent process technology ensures the best service life of the vents.

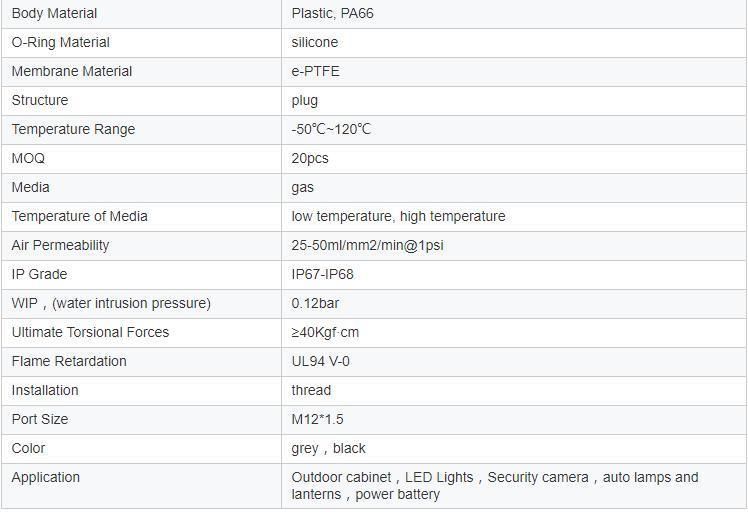

| Product Name | Lighting Application Hydrophobic IP 68 Air Permeable Black Plastic M12 Threaded Vent Valve |
| Material | Plastic PA6+ePTFE Membrane |
| Port Size | M12*1mm |
| Color | Black |
| Air Perm | 2300ml/min/cm² (Pressure=70 mbar) |
| Material of Membrane | ePTFE /(PET) |
| Character | Waterproof ,Breathable, Oleophobic |
| IP Rate | IP68 |
| Ring Material | SIL |
| Mut Material | Nickel Plated Brass |
