Double Wings Screw on Wire Connectors
Huatong (FATO) Group Co., Ltd.- Certification：ISO, CE
- Surface Treatment：Polishing
- Color：Grey Blue Orange Yellow Red
- IP Rating：IP65
- Material：Nylon
- Type：Torsion Resistance
Base Info
- Model NO.：FT-SP
- Usage：Peel Wire Coat,Insert The Wirein,Then Tighten
- Transport Package：Export Packing
- Specification：CE
- Trademark：FATO or OEM
- Origin：China
- HS Code：3926909090
- Production Capacity：300000 PCS
Description
Basic Info.
Model NO. FT-SP Usage Peel Wire Coat,Insert The Wirein,Then Tighten Transport Package Export Packing Specification CE Trademark FATO or OEM Origin China HS Code 3926909090 Production Capacity 300000 PCSProduct Description

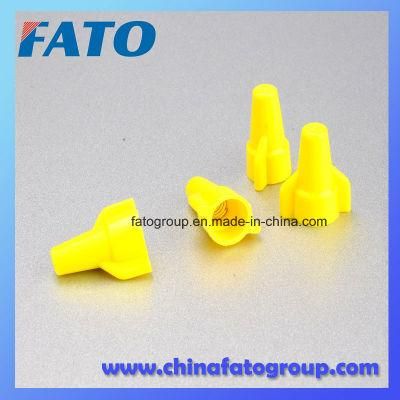

Product Description:Double Wings Screw On Wire Connectors
Mateial: UL Nylon66, with spring inside
Usage: Peel wire coat, insert the wire in, then tighten
Feature: Outer Wring make operation easilg
| ITEM. NO. | H(mm) | W(mm) | D(mm) | SUITABLE WIRES | COLOR |
| FT-SP1 | 22.0 | 19.0 | 9.8 | MIN#18× 2 MAX#12× 3 | Yellow |
| FT-P2 | 29.0 | 22.0 | 12.5 | MIN#14× 2 MAX#10× 4 | Red |
