Nylon Cable Gland United Structure -Pg Thread
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, IP68
- Surface Treatment：IP68
- Color：Metalic
- IP Rating：IP68
- Material：Brass
- Advantage：Free Samples; Special Customized
Base Info
- Model NO.：PG thread
- Transport Package：Polybag+Label Export Carton Box
- Trademark：Jixiang
- Origin：Zhejiang; China
Description

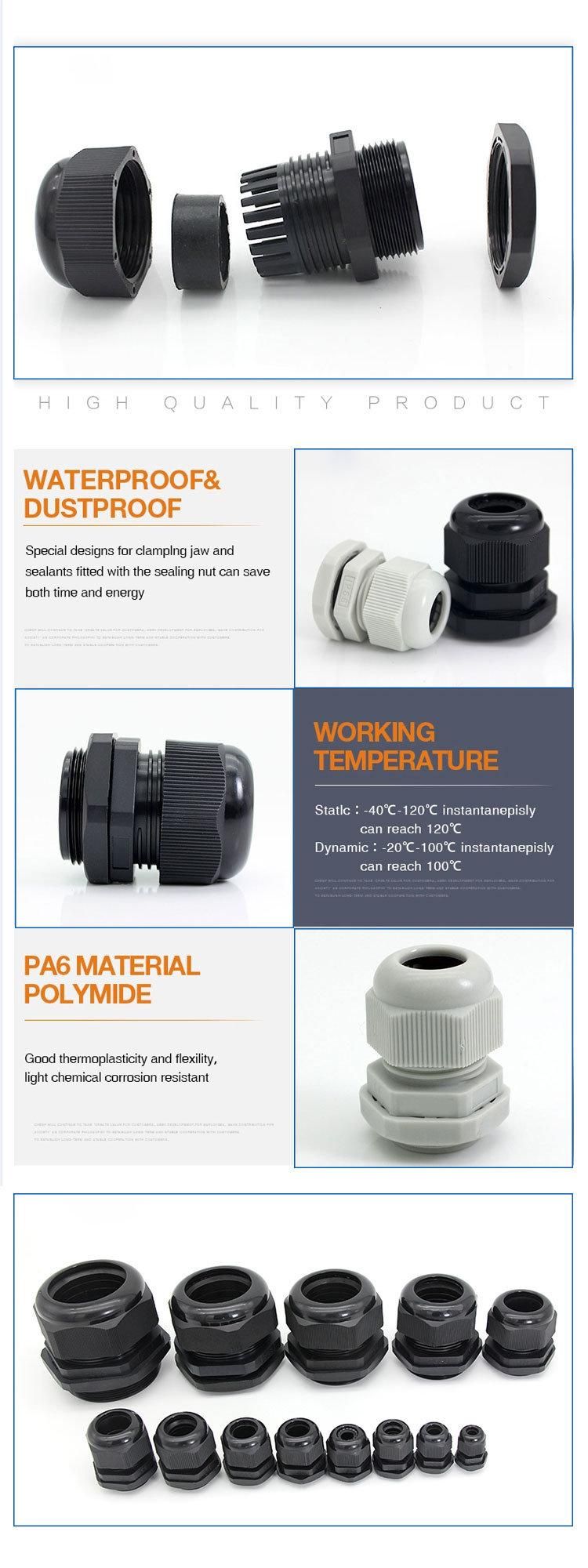

United Structure Nylon Cable Gland-- PGthread
Product Code
Thread AG
Cable range(mm)
Thread O.D. C1(mm)
Thread length GL(mm)
Spanner Size (mm)
JX-NLPG7A-UN
PG7
3-6.5
12.5
8
17/15
JX-NLPG7B-UN
3-5.5
12.5
8
17/19
JX-NLPG7C-UN
3-5.5
12.5
15
17/19
JX-NLPG7D-UN
4-8
12.5
8
17/19
JX-NLPG7E-UN
4-8
12.5
15
17/19
JX-NLPG9A-UN
PG9
3-5.5
15.2
8.2
22/19
JX-NLPG9B-UN
3-5.5
15.2
15
22/19
JX-NLPG9C-UN
4-8
15.2
8.2
22/19
JX-NLPG9D-UN
4-8
15.2
15
22/19
JX-NLPG11A-UN
PG11
3-7
18.6
10
24/22
JX-NLPG11B-UN
3-7
18.6
15
24/22
JX-NLPG11C-UN
5-10
18.6
10
24/22
JX-NLPG11D-UN
5-10
18.6
15
24/22
JX-NLPG13.5A-UN
PG13.5
5-9
20.4
10
27/24
JX-NLPG13.5B-UN
5-9
20.4
15
27/24
JX-NLPG13.5C-UN
6-12.5
20.4
10
27/24
JX-NLPG13.5D-UN
6-12.5
20.4
15
27/24
JX-NLPG16A-UN
PG16
5-11
22.5
10.8
30/27
JX-NLPG16B-UN
5-11
22.5
15
30/27
JX-NLPG16C-UN
8.5-14
22.5
10.8
30/27
JX-NLPG16D-UN
8.5-14
22.5
15
30/27
JX-NLPG19A-UN
PG19
5-11
24
11
30/27
JX-NLPG19B-UN
5-11
24
15
30/27
JX-NLPG19C-UN
8.5-14
24
11
30/27
JX-NLPG19D-UN
8.5-14
24
15
30/27
JX-NLPG21A-UN
PG21
7-13
28.3
12
36/33
JX-NLPG21B-UN
7-13
28.3
15
36/33
JX-NLPG21C-UN
12.5-18
28.3
12
36/33
JX-NLPG21D-UN
12.5-18
28.3
15
36/33
JX-NLPG25A-UN
PG25
14-20
30
13
36/37
JX-NLPG25B-UN
14-20
30
15
36/37
JX-NLPG29A-UN
PG29
14-22
37
12
46/41
JX-NLPG29B-UN
14-22
37
15
46/41
JX-NLPG29C-UN
17-25
37
12
46/41
JX-NLPG29D-UN
17-25
37
15
46/41
JX-NLPG36A-UN
PG36
17-25.5
47
14
57/52
JX-NLPG36B-UN
24-32
47
14
57/52
JX-NLPG42A-UN
PG42
25-32
54
15
64/62
JX-NLPG42B-UN
30-41
54
15
64/62
JX-NLPG48A-UN
PG48
29-38
59.3
18
70/65
JX-NLPG48B-UN
35-45.5
59.3
18
70/65
