• Co-Extrusion Technology：RoHS Compliant
• Reduces Partial Discharge：Used for Cable Joint
• 1m/PC：1.22m,PC
• Transport Package：Neutral Packaging
• Trademark：UPM
• Origin：Dalian China
• HS Code：39173900

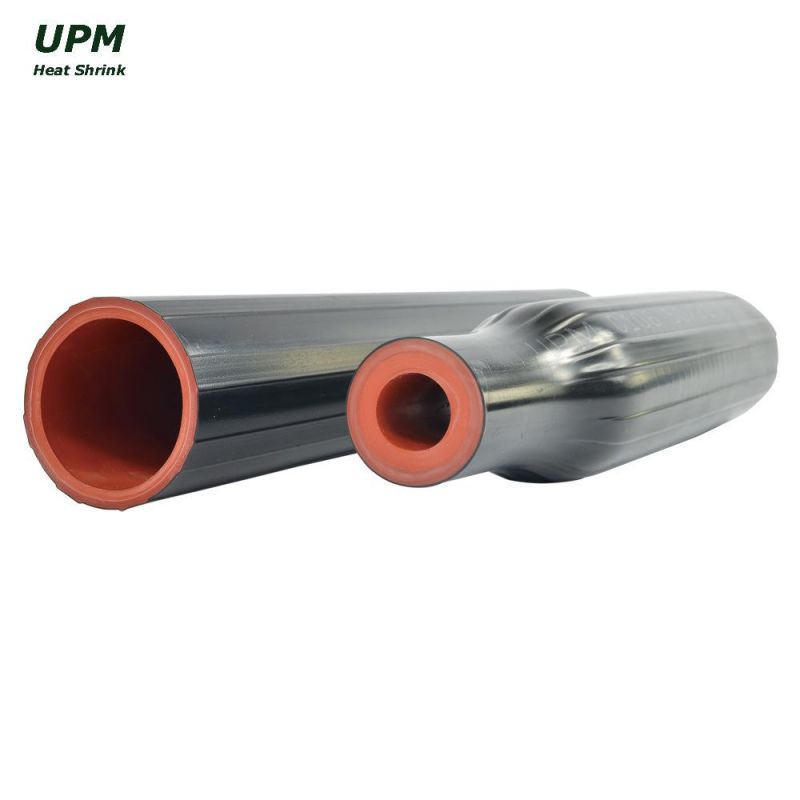

Overview Product DescriptionC106 Semi-Conductive/Insulation/Elastomeric Insulation Tri-Layer Heat Shrink TubeFeatures Cross-linked heavy wall tubing   Operating temperature: -55~105ºC Tri-layer design with high recovery forces  Shrink temperature: 135-150ºC Co-Extrusion technology  Voltage class: 10-35 KV  Eliminates partial discharge  Halogen free ,RoHs Compliant Enable the joint to follow the thermally induced dimensional changes of cable insulation.DimensionsReferenceAs supplied(mm)After recovered(mm)Standard lengthUPM C106ID min.ID max.WT nom.m/pc35/13351311.0 1 or 1.2245/17451712.0 1 or 1.2250/21502112.7 1 or 1.2263/26632613.5 1 or 1.2275/34753413.5 1 or 1.2285/34853413.5 1 or 1.2295/42954214.2 1 or 1.22110/521105214.2 1 or 1.22125/621256215.0 1 or 1.22ID=Internal DiameterWT=wall thickness  Typical application      Ideal for insulation of power cable joint up to 42KV  Ordering      Standard color : Black/Red/Red     Standard packaging is 1m/pc or 1.22m/pc     Please specify specification,quantity when orderingCross referenceRaychem/ Tyco:  ERIT/ERIC/ERIH Technical DataPropertyTest method       JointInner layerPhysicalTensile strengthASTM D2671   ≥6 MPa Breakdown elongationASTM D2671   ≥600%   Aging                                                                 (136ºC /168hrs)Tensile strengthASTM D2671     ≥4.2 MPaBreakdown elongationASTM D2671    ≥420% Thermal enduranceIEC 216105 ºC Water absorption (23ºC/336hrs)ASTM D570    ≤0.5% DensityASTM D26710.95~1.05 Low temperature flexibility(-55ºC/4hrs)ASTM D2671No cracking. Hardness (Shore D)ASTM D2671    ≤ 30 HDElectricalDielectric strength(in insulation oil)ASTM D 2671≥15KV/mm Volume resistivityASTM D 2671 ≥1014 Ω.cmMiddle layer PhysicalTensile strengthASTM D2671   ≥12 MPa Breakdown elongationASTM D2671   ≥400%   Aging                                                          (136ºC /168hrs)Tensile strengthASTM D2671     ≥12 MPaBreakdown elongationASTM D2671    ≥350% Thermal enduranceIEC 216105 ºC Water absorption (23ºC/336hrs)ASTM D570    ≤0.5% DensityASTM D26711.05~1.15 Low temperature flexibility(-40ºC/4hrs)ASTM D2671No cracking. Heat shock (200ºC/30mins)ASTM D2671No cracking. Hardness (Shore D)ASTM D2671≥ 35 HDElectricalDielectric strength(in insulation oil)ASTM D 2671≥15KV/mm Volume resistivityASTM D 2671 ≥1013 Ω.cmOuter layer PhysicalTensile strengthASTM D2671   ≥20 MPa Breakdown elongationASTM D2671   ≥350%   Aging                                                 (158ºC /168hrs)Tensile strengthASTM D2671     ≥16 MPaBreakdown elongationASTM D2671    ≥300% Thermal enduranceIEC 216135 ºC Water absorption (23ºC/336hrs)ASTM D570    ≤0.5% DensityASTM D26711.05~1.10 Heat shock (250ºC/30mins)ASTM D2671No cracking.No drop, no flow Low temperature flexibility(-40ºC/4hrs)ASTM D2671No cracking. Hardness (Shore D)ASTM D2671≥ 55 HDElectricalVolume resistivityASTM D 2671 ≤104 Ω.cmInner layer & Middle layer & Outer layer  Halogen freeIEC 61249-2-21Cl : 900ppm max. Br : 900ppm max. Total (Cl + Br) : 1500ppm maxDetailed Photos

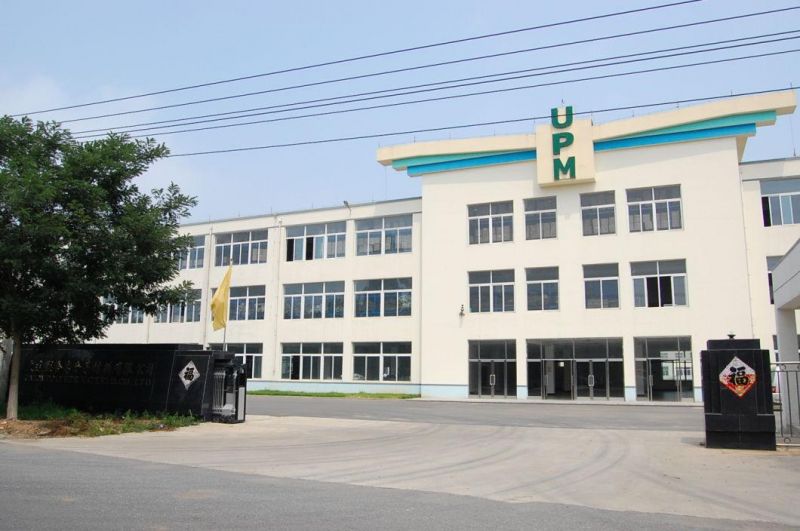

Company Profile

Certifications

FAQ

Frequently Asked Q & A


Q1. You are a manufacturer or trading company?

A: We are a leading manufacturer of shrinkable materials,with best price,high quality and short lead time.
Q2. Can you accept sample orders?

A:Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

A:Normally, for standard thin wall heat shrink, MOQ is 300m. For standard medium/heavy wall tube MOQ is 500m per size.

Q4. What are your payment terms?

A: As usual, the trade term is FOB Dalian. For order amount less than 10,000 USD, it should be 100% T/T in advance. For order amount over 10,000 USD, 30% deposit and 70% balance against copy of BL is acceptable.

Q5. How can I get my order?

A: Per your requirements, we will arrange the cargo delivered by express (e.g. TNT, DHL, FedEx ) ,by land,by air or by sea. After that, we will give you the tracking number or other relative files for your reference.

Q6. How about your quality?

A: We are a trust worthy supplier for GE,Siemens for more than 10 years. Most of the products got the CE,UL,DNV,CCS and Rohs approval. Let's start with a small trial order or free samples before the formal order, then you will get a clear image about the product quality and the relevant cost for transportation.

Q7. How is the delivery time?
A: Usually within 3 weeks.

Q8. Could you offer certificate of origin (e.g. Form-A,Form-E,Form-F,Form-R)?
A: It is totally not a problem. To help you enjoy the tariff concession,we can prepare the relevant certificate of origin.
