High Quality Plastic Spiral Vibration Damper for Opgw Cable
Qingdao Powtech Electronics Co., Ltd.- Length：1650mm
- Suitable Cable Dia.：14.31-19.30mm
- Weight：0.66kg
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
Base Info
- Model NO.：FTL
- Origin：China
- Production Capacity：100000PCS,Month
Description
Basic Info.
Model NO. FTL Origin China Production Capacity 100000PCS/MonthProduct Description

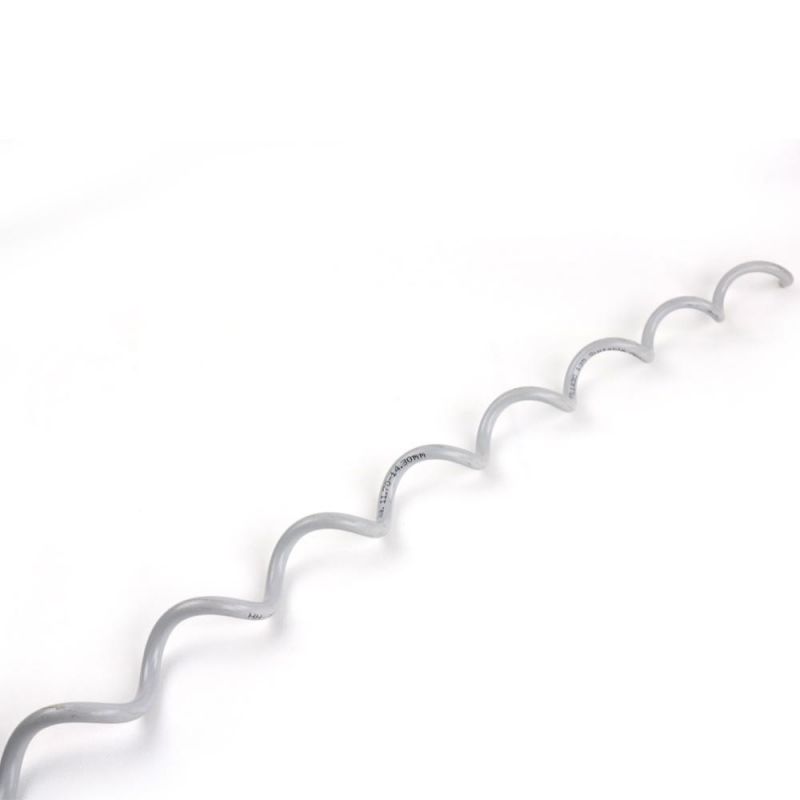

Spiral Vibration Damper for ADSS Fiber Fittings
Description:
Spiral vibration damper is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install and operate. It's an interference type damper to attenuate vibration amplitude by impact with its damping section and especially designed for ADSS cable and OPGW cable of diameter less than 12mm.
Technical Data sheet:
| Model | Cable Diameter(mm) | PVC wire(mm) | Total Length(mm) | Gripping Length(mm) | Weight(kg) |
| FTL-6 | 4.40-6.30 | 12.8 | 1160 | 150-200 | 0.24 |
| FTL-8 | 6.35-8.30 | 12.8 | 1240 | 170-220 | 0.26 |
| FTL-11 | 8.30-11.70 | 12.8 | 1300 | 250-300 | 0.28 |
| FTL-14 | 11.71-14.30 | 12.8 | 1350 | 250-300 | 0.30 |
| FTL-16 | 14.31-19.30 | 15.8 | 1640 | 330-350 | 0.63 |

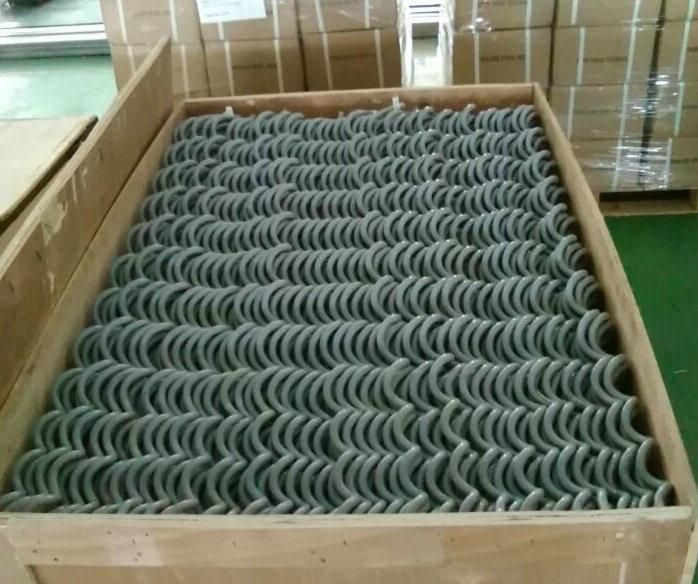

Package:
