• MOQ：1000PCS
• Fire Proof Level：UL94V-2
• Cable Range：14-20mm
• Thread O.D：30
• Feature：Seal Part Hold Cable Firmly
• Thread Length：15mm
• Transport Package：Common Packing: Inner Plastic Bag + Export Carto
• Specification：PG9, PG11, M8*1.25
• Trademark：ZC
• Origin：China
• HS Code：39174000
• Production Capacity：500000PCS,Year

Thread:

PG,Metric,G,and NPT thread

Materials:

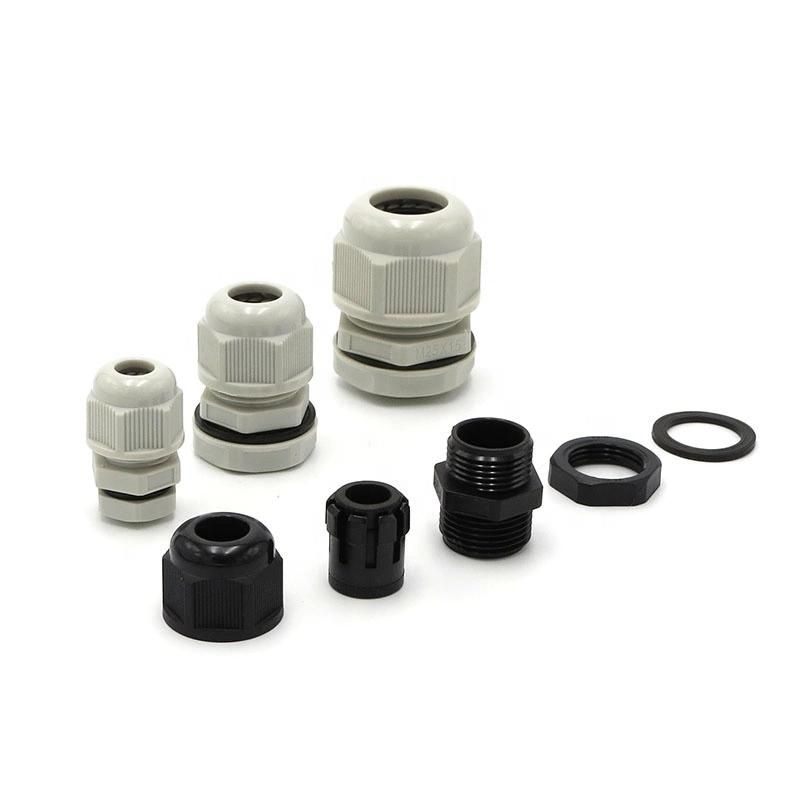

ULapproved Nylon PA66(Flammability UL 94V-2) for A.C.E parts,(Accept to make flammability UL 94V-0); EPDM rubber for B.D parts, (Also accept to make super rubber: resist high temperature rubber, resist strong acid/alkali,etc).

Protection degree:

IP68

Working temperature:

-40ºC to 100ºC

Features:

The claws and seals of excellent design, sealing nut have a "click" sound and re-open, can hold cable firmly and have a wider cable range. Resistant to salt water,weak acid, alcohol, oil, grease and common solvency.

Colours:

Black(RAL9005),Gray(RAL7035),other color available upon request



Specification:

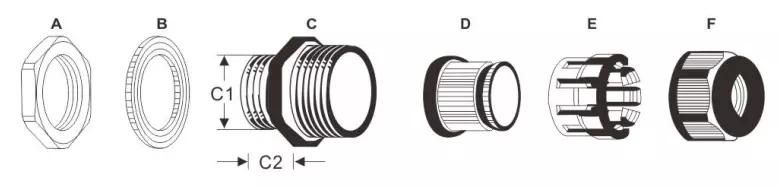

Product ModelApplicable to cableThread diameterThread lengthWrench diameter (C1)(C2) MG124.5~812919MG166~10161522MG209~14201527MG2513~18251533MG3218~25321541MG4024~30402050MG5030~40502362MG6340~50632475



 Product ModelApplicable to cableThread diameterThread lengthWrench diameter (C1)(C2) MG123~5.312919MG164~7161522MG206~11201527MG2510~16251533MG3215~22321541MG4020~25402050MG5026~32502362MG6338~46632475
