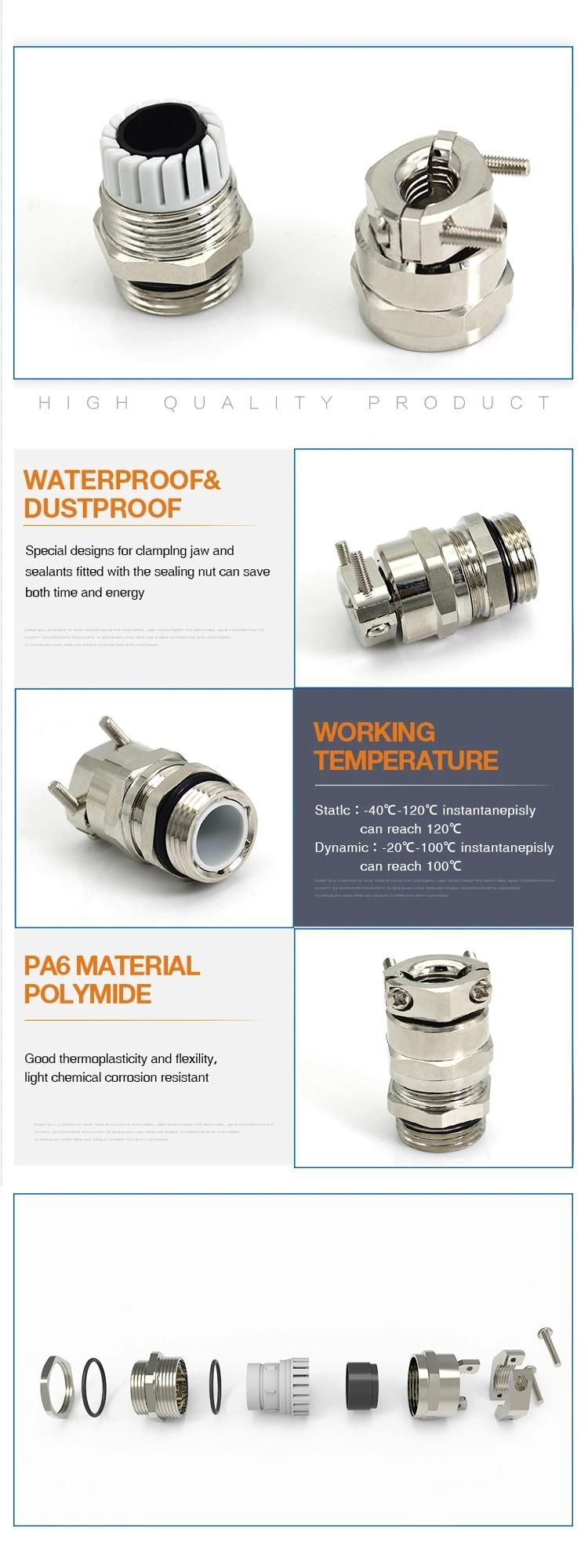

Stainless Steel Double-Locked Cable Gland CE Pg M NPT G Brass Metal Double Lock Cable Gland
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, RoHS, ISO, CE, Ex; IP66
- Surface Treatment：Electroplating
- Color：Metalic
- IP Rating：IP68
- Material：Brass
- Temperature Resistance：-40ºC-+100ºC
Base Info
- Model NO.：Metric Thread
- Sealing Element：NBR
- Product：Brass Cable Gland
- Protection Level：IP68
- Transport Package：Polybag+Label Export Carton Box
- Trademark：Jixiang
- Origin：Zhejiang; China
- HS Code：8547901000
- Production Capacity：50000PCS,Week
Description
Product Code
Thread Dimension
Thread AG (mm)
Cable range (mm)
Thread length GL(mm)
Body Height (mm)
Spanner Size (mm)
Std.pkg (pcs)
JX-M12-DLS
M12*1.5
12
3-6.5
6
26
14
50
JX-M16A- DLS
M16*1.5
16
3-6.5
7
26
14/18
50
JX-M16B-DLS
M16*1.5
16
4-8
7
28
17/18
50
JX-M16C-DLS
M16*1.5
16
5-10
7
30
20
25
JX-M18- DLS
M18*1.5
18
5-10
7
30
20
25
JX-M20A- DLS
M20*1.5
20
5-10
7
30
20/22
25
JX-M20B- DLS
M20*1.5
20
6-12
7
30.5
22
25
JX-M20C- DLS
M20*1.5
20
8-14
7
30.5
24
25
JX-M24A- DLS
M24*1.5
24
6-12
7
30.5
22/27
25
JX-M24B- DLS
M24*1.5
24
8-14
7
30.5
24/27
25
JX-M25A- DLS
M25*1.5
25
8-14
7
30.5
24/28
25
JX-M25B- DLS
M25*1.5
25
10-16
7
30.5
28
25
JX-M25C- DLS
M25*1.5
25
13-18
7
34.5
30
25
JX-M27A- DLS
M27*2.0
27
10-16
8
36
30
25
JX-M27B- DLS
M27*2.0
27
13-18
8
34.5
30
25
JX-M30A- DLS
M30*2.0
30
10-16
8
35
30/34
25
JX-M30B- DLS
M30*2.0
30
13-18
8
36
30/34
25
JX-M32A- DLS
M32*1.5
32
13-18
8
36
30/34
20
JX-M32B- DLS
M32*1.5
32
15-22
8
36
36
20
JX-M32C- DLS
M32*1.5
32
18-25
8
38
40
20
JX-M36A- DLS
M36*2.0
36
15-22
8
43
36/40
20
JX-M36B- DLS
M36*2.0
36
18-25
8
43
40
20
JX-M40A- DLS
M40*1.5
40
18-25
9
38
40/45
10
JX-M40B- DLS
M40*1.5
40
21-30
9
43
45
10
JX-M40C-DLS
M40*1.5
40
22-32
9
43
50
10
JX-M48-DLS
M48*2.0
48
22-32
9
48
50/52
5
JX-M50-DLS
M50*1.5
50
30-38
9
50
55/58
5
JX-M56-DLS
M56*2.0
56
30-38
9
50
58
5
JX-M63A-DLS
M63*1.5
63
37-44
10
50
65/70
5
JX-M63B-DLS
M63*1.5
63
42-53
10
52
75
5
JX-M64-DLS
M64*2.0
64
37-44
10
52
65/70
5
