Th/ Tj / JIS Marine Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification:CCC, RoHS, ISO, CE
  • Surface Treatment:Electroplating
  • Color:Metallic Color
  • IP Rating:IP68
  • Material:Brass
  • Type:Straight Head

Base Info

  • Model NO.:JIS, TH , TJ
  • Cable Gland:Waterproof
  • Main Material:Nickel-Plated Brass
  • Claw:Nylon (PA66)
  • Seal & O Ring:Rubber
  • Thread Length:Standard & Customization
  • Other Size:Customization
  • Transport Package:Standard Export Carton
  • Trademark:JXLJQ
  • Origin:China Mainland
  • HS Code:8547901000
  • Production Capacity:50000PCS,Month

Description

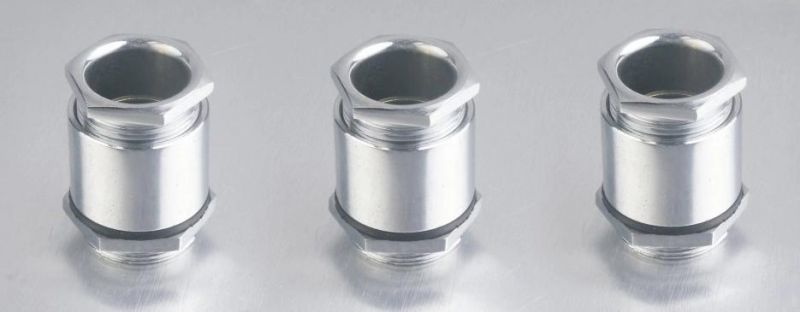

Product Name:Marine cable glandMain material:Nickel-plated brassStandard type:TJ8-TJ58 / JIS10-JIS75 / TH8-TH58Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableTJ Clamping type:Th/ Tj / JIS Marine Cable GlandSizeCable range(mm)Thread O.D.(mm)Thread length(mm)TJ8-M16x1.55-7169TJ13-M20x1.56-122010TJ16-M27x1.511-152712TJ19-M30x1.514-183012....................TJ58-M71x248-577120

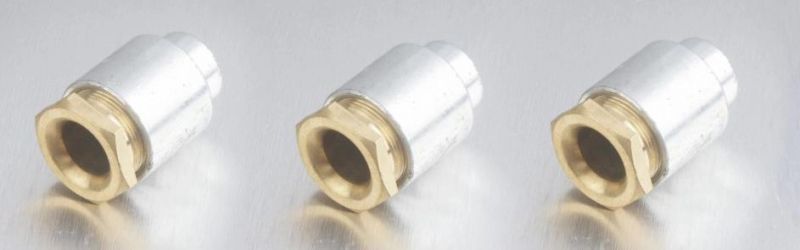

TH Soldiered type:Th/ Tj / JIS Marine Cable Gland

SizeCable range(mm)Thread AGTH-85-7M16x1TH-136-12M20x1TH-1611-15M27x1.5TH-1914-18M30x1.5TH-2417-23M35x1.5...............TH5848-57M71x2

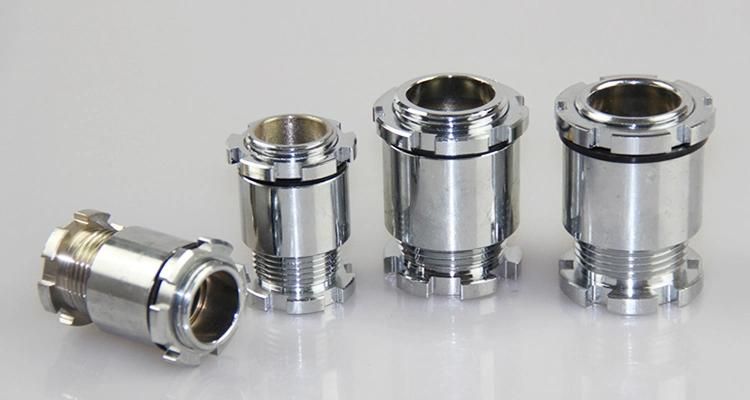

JIS standard type:Th/ Tj / JIS Marine Cable Gland

AG itemCable Range(mm)Thread O.D.(mm)Thread Length(mm)JIS10-3/8''6-716.611JIS15-1/2''8-920.911JIS20-3/4''11-1226.411JIS25-1''15-1633.211...................JIS65-3''56-5887.8
