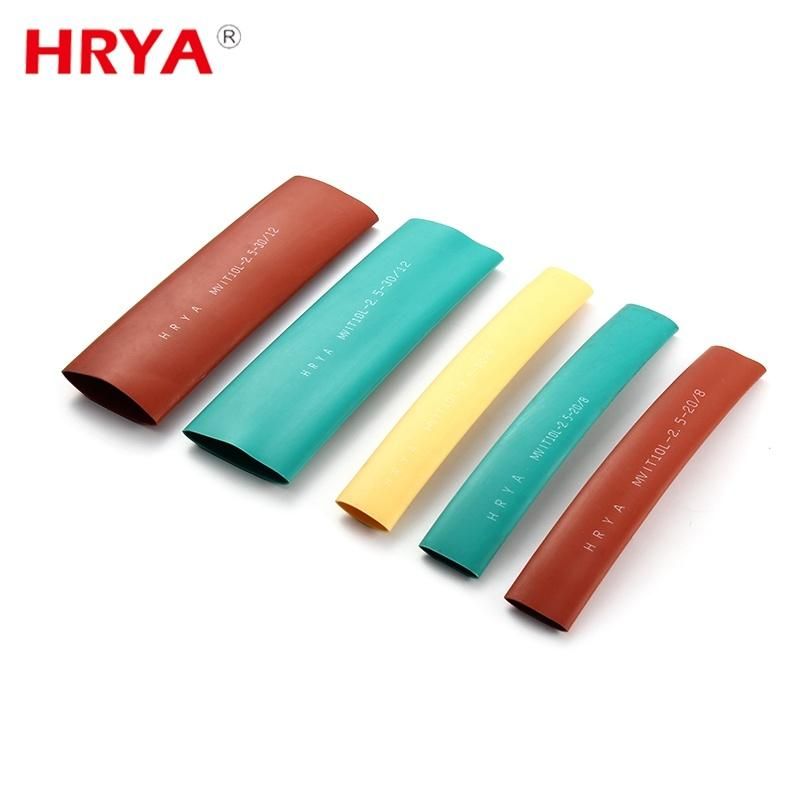

• Name：Heat Shrinkable Busbar Insulating Tube
• Tensile Strength：>=14MPa
• Transport Package：Carton
• Specification：0.5mm-150mm
• Trademark：HRYA
• Origin：Zhejiang, China
• HS Code：391733000
• Production Capacity：100000

PropertyTest MethodTypical DataOperating temperatureUL 224 -55°C to + 125°CTensile strengthASTM D 2671>14 MPaElongation at breakASTM D 2671 400%Longitudinal shrinkageUL 2240±5%EccentricityASTM D 2671 <30%Flammability VW-1PassDielectric strength IEC 243  >20 KV/mmVolume resistance IEC 93 10 14 Ω.cmCopper stabilityUL224PassHeat aging / Tensile strength / Ultimate elongation158°C/168hUnaged /  >12 MPa / > 350%



HCA35 35KV 36KV HEAT SHRINKABLE CABLE ACCESSORIES



Heat shrinkable cable accessories for protection of indoor/outdoor cable terminals joint up to 36kv, widely used in electricity supply systems in oil refinery, metallury railway, ports and other area where safety and reliability of electricity supply is vital for daily operation.



Features and Benefits
•Segmented cable will effectively connected together or connected to the terminal appliance.
•Good insulation properties.
•Easy to install, easy to distinguish between cable types.



Shrink Physical Properties
•Operating Shrink Temperature: -55°C to 105°C
•Shrink Temperature: 120°C to 140°C



Technical Details

Test ItemTest MethodTypical ValueWork frequency wet voltage withstand35KV/1minNo breakdown and no flashoverWork frequency long term voltage withstand65KV/4minNo breakdown and no flashoverImpact voltage withstand250KV/10timesNo breakdownD.C voltage withstandv156KV/15minNo breakdown and no flashoverPart discharge(kv, pc)v39,≤2039,4



Product Selection

Product CodeNameProduct CodeNameFor Cable mm²NRSY35-3/13-cores indoor terminationNRSY35-1/11-cores indoor termination25-50NRSY35-3/23-cores indoor terminationNRSY35-1/21-cores indoor termination70-120NRSY35-3/33-cores indoor terminationNRSY35-1/31-cores indoor termination150-240NRSY35-3/43-cores indoor terminationNRSY35-1/41-cores indoor termination300-400WRSY35-3/13-cores outdoor terminationWRSY35-1/11-cores outdoor termination25-50WRSY35-3/23-cores outdoor terminationWRSY35-1/21-cores outdoor termination70-120WRSY35-3/33-cores outdoor terminationWRSY35-1/31-cores outdoor termination150-240WRSY35-3/43-cores outdoor terminationWRSY35-1/41-cores outdoor termination300-400JRSY35-3/13-cores outdoor jointsJRSY35-1/11-cores outdoor joints25-50JRSY35-3/23-cores outdoor jointsJRSY35-1/21-cores outdoor joints70-120JRSY35-3/33-cores outdoor jointsJRSY35-1/31-cores outdoor joints150-240JRSY35-3/43-cores outdoor jointsJRSY35-1/41-cores outdoor joints300-400
