Power Cable Four-Cores-Cenrtalized Strain Clamp (Type NXJ-A, NXJ-B)
Zhejiang SMS Technology Co., Ltd.- Type：Cable Clamp
- Material：Stainless Steel
- Certification：RoHS, ISO, CCC, SGS
- Customized：Customized
- Condition：Used
- Flame Retardant：High
Base Info
- Model NO.：Type NXJ-A, NXJ-B
- Specification：CE, RoHS
- Trademark：SMS or OEM available
- Origin：Wenzhou
- HS Code：853690900
- Production Capacity：5000PCS,Day
Description
Basic Info.
Model NO. Type NXJ-A, NXJ-B Specification CE, RoHS Trademark SMS or OEM available Origin Wenzhou HS Code 853690900 Production Capacity 5000PCS/DayProduct Description
Application:NXJ four-core-centralized strain clamp is suitable for the end of aerial wire terminal, it's action is fixing or tighten the insulation conductor, the products type has NXJ-A and NXJ-B
Performance:
The clamp has designed four core parallel groove, after clamping the four insulation conductor(not remove the insulation layer )tighten up the bolt, have large grip strength.

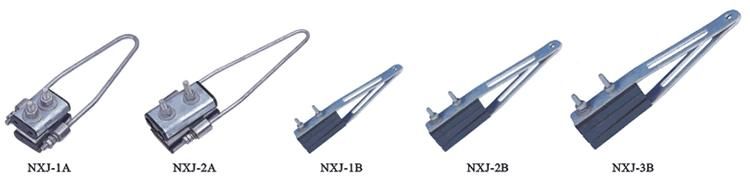

| Type | Applicable conductor (mm 2 ) | Grip strength (kN) |
| NXJ-1A | 16-50 | 11.7 |
| NXJ-2A | 70-120 | 17.3 |
| NXJ-1B | 25-50 | 11.7 |
| NXJ-2B | 70-120 | 17.3 |
| NXJ-3B | 150-185 | 22.5 |
