• Production Capacity：1000PCS

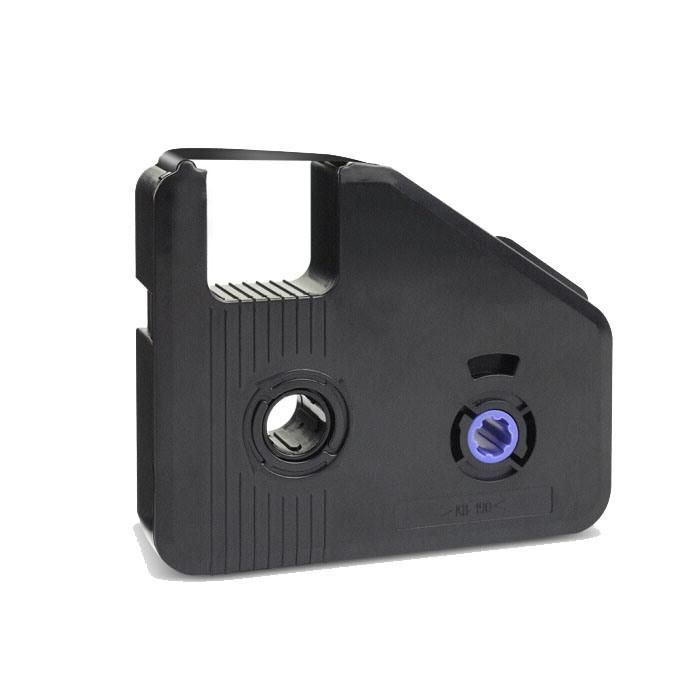

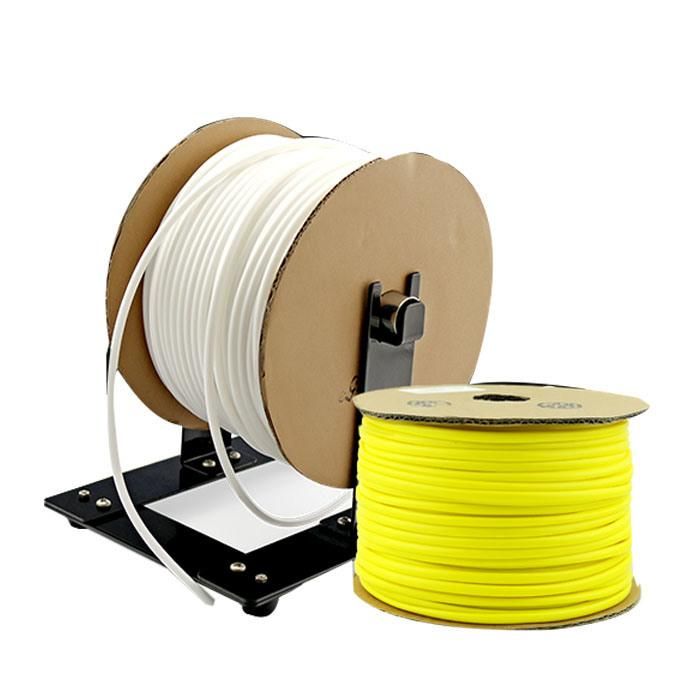

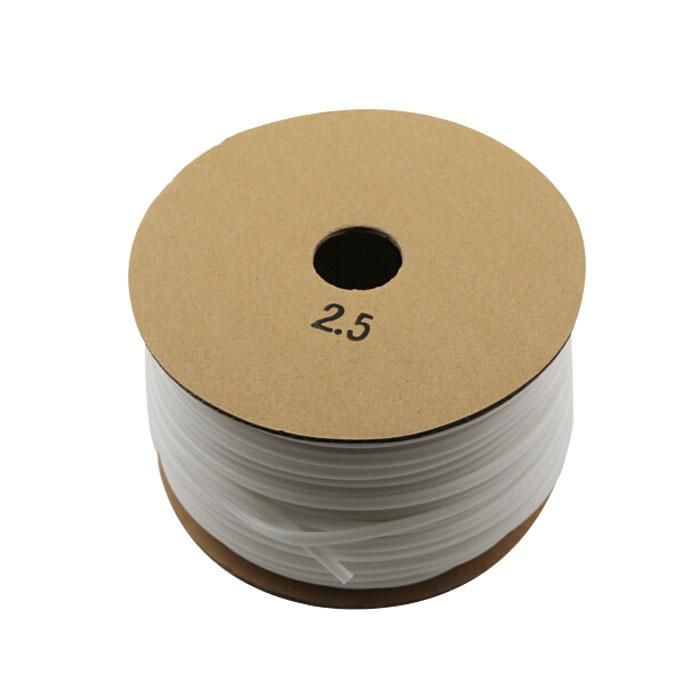

Item:Cable printer shrinkable PVC tube Weight: about 1KG/ roll Casing pipe:white PVC tube size:0.5 , 0.75, 1, 1.5,  2.5,  4.0,  6.0,  8.0,  10.0,  16.0 suitable machine: PVC cable label printer consumblesribbon cartridge Specifications:Length: (only for reference)Diameter (wire)0.5 ² about  170mΦ1.9-2.00.75² about 145mΦ2.1-2.31.0² about  125mΦ2.4-2.61.5² about  105mΦ2.7-3.12.5² about 85mΦ3.2-3.63 ² about 70m 4.0² about  65mΦ3.7-4.26.0² about 55mΦ4.3-5.28.0² about 40mΦ5.3-7.210.0² about 30mΦ7.3-8.216.0² about 22mΦ8.9-9.2

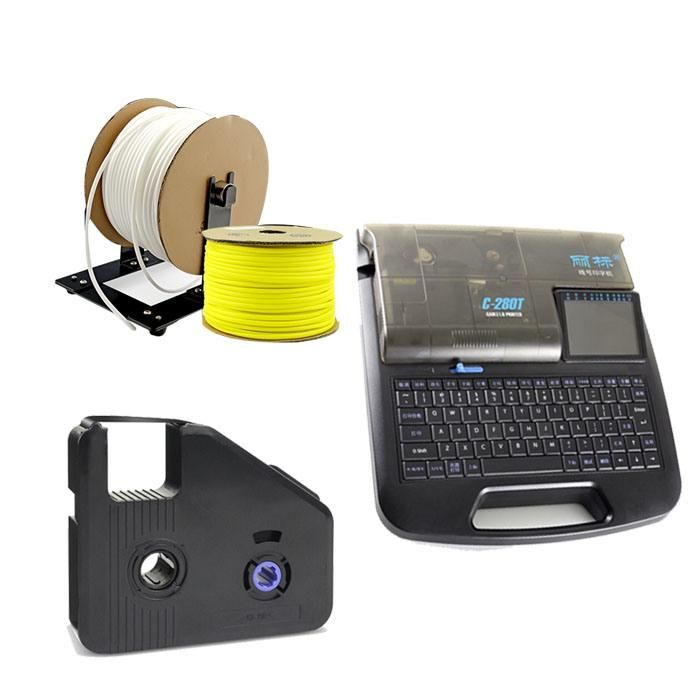

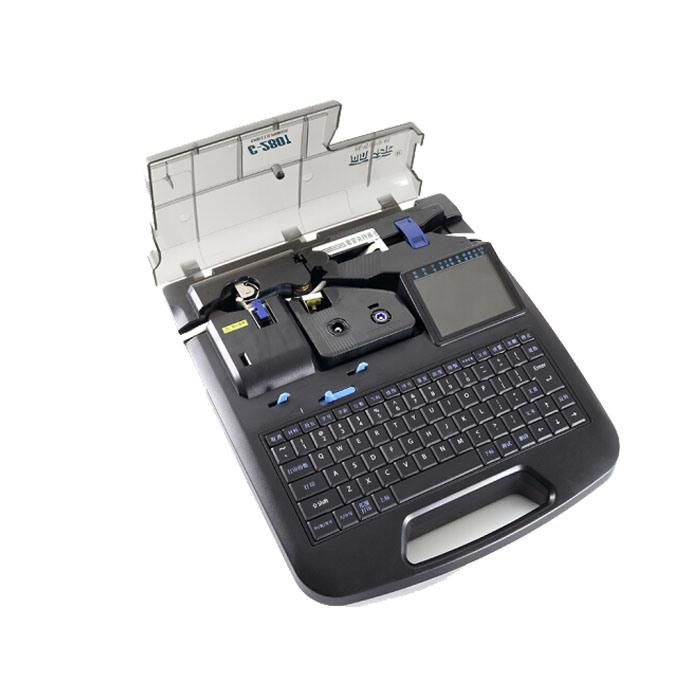

CAPE LABEL Aotumatica Max Wire Cable Label Printer  (  Thermal transfer printing)
1. C-280T series  Wire Cabel marking Printer
2.  USB  Transmission,  Batch lots editoring, data movement
3. Computer editor :  connect with Computer for Batch printing
4.   Document  memorize function : If  the power cut off suddenly , it will saved and stored automatically
5.  Print  3 types consumables  : pvc Hoses  Shrinkable tube, heat shrinkable tube, label sticker etc.
6.  Automatically printing:  Automatically FEEDING in  half/ full cutting way.
7. High resolution printing:  ideal  printer head with high quality clear  prints performance.
Differences between C-280E and C-280T
C-280E is the old verison  suits for USB interface for transfer the data, insert the USB before open the printer.

C-280T is  the latest model suits for USB + COMPUTER connections,  in order for the data better in transmission and storage, distinguish.
Highlight  point For the  C-280T automatic Wire PVC Cable label printer machine
1,  USB  Tranmission to realize for  batch lots of Data printing.

( Go through by the  computer Batch editor fuction  to editor the  text in the TXT way and store in USB , for the Cable label printer can read and print  at anytime when connected with the USB)

2.  AUTOMATIC DESIGN
 Automatically Feeding cables/   cutting / Frap  the ribbon /  do cleaning job








1.  Under the condition of   25C temperature,  use  standard  power supply adaptor,  0.5-6.0 Diameter  Cable  or  6-12MMLabel sticker  printing speed  can reach to   40 unit/  minutes ( unit   20mm)Print material : PVC hoses  diameter 0.5-6.0, label sticker 6/9/12mm ,   heat shrinkable  2.0/ 3.0/ 4.0 /5.0/ 6.0Resolution :  300DPIPrinting speed:   18mm/ sec   25mm/ sec (default)Display:    10 lines  textDimension: 319MM (L)* 285MM( w)* 95MM( h) Imput  way:   Chinese Pinyin,  Engllish,  Symbols Weight:  2.2KG ( packages 3.9KG)Character recommendation:  underline, framePrint lines: 1-3 linesCharacter  orietation:  horizontal , vertical Storage:  200 pcs files (12 million bytes)Character sets size:  8 kindsCutting way:  half cut / full cuttingSerial No printing: 0-999 / 000-999/ A-Z/ a-z / 00-FFUSB  transmission:  SupportPrinting depth:  highest  7 Quality gurantee:   2  years (Mainland)Printing quantites:  1-200 pcs filesC-280T latest model support  USB + COMPUTER connected
any question, feel free to contact us!
