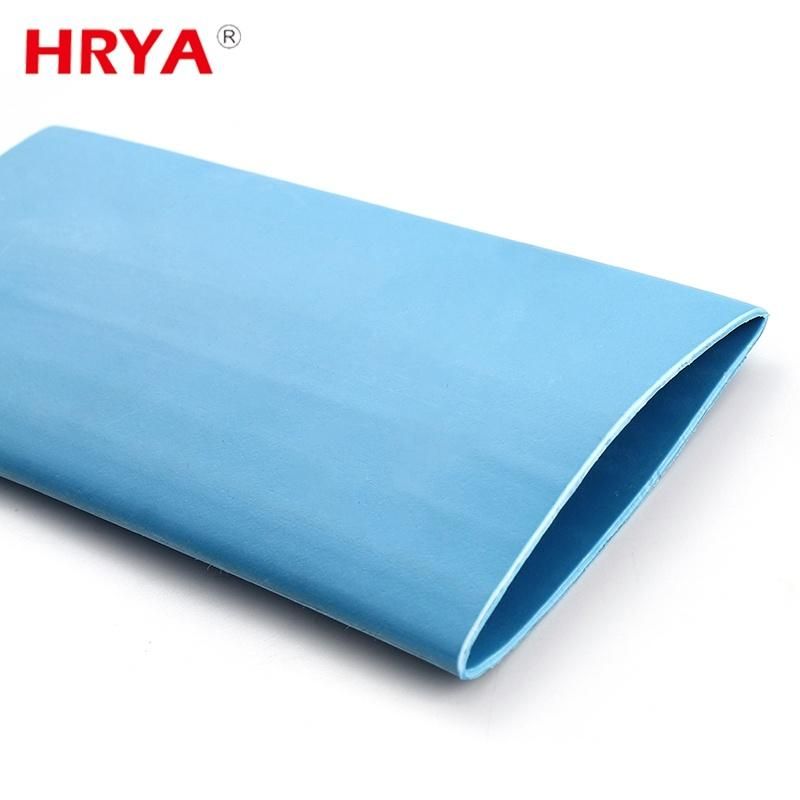

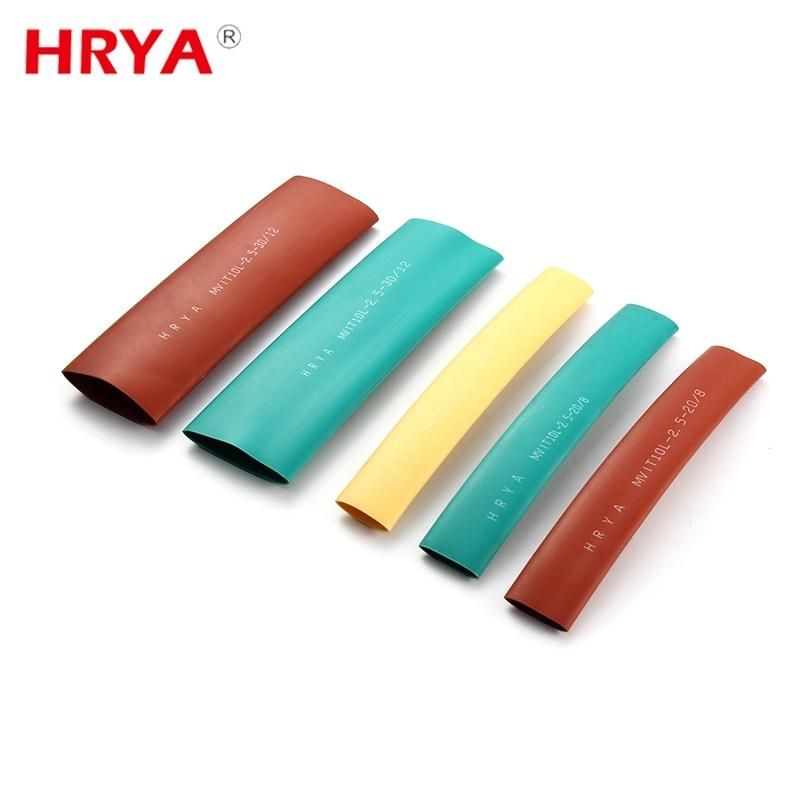

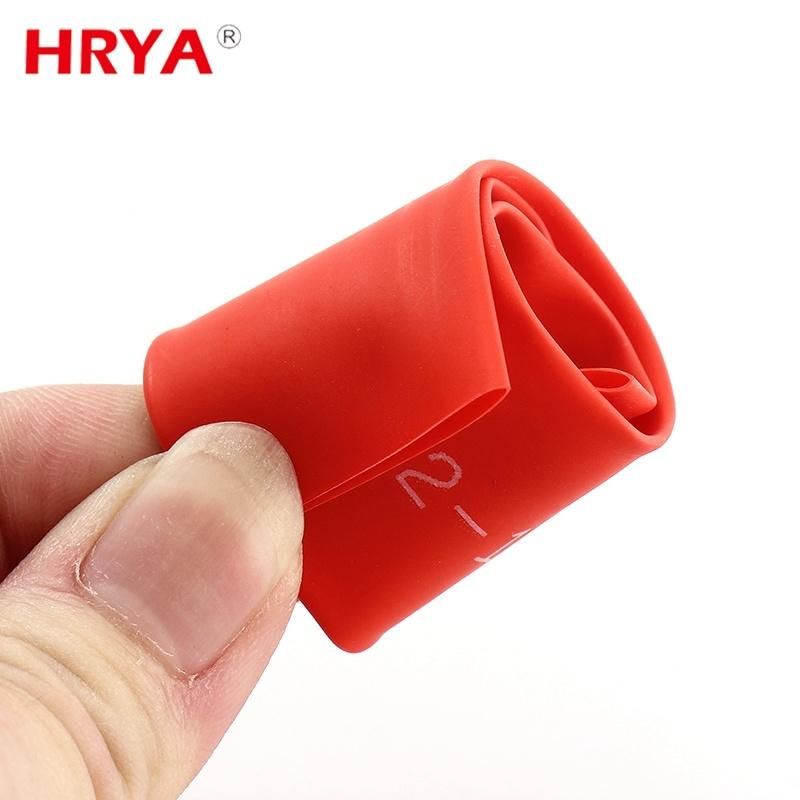

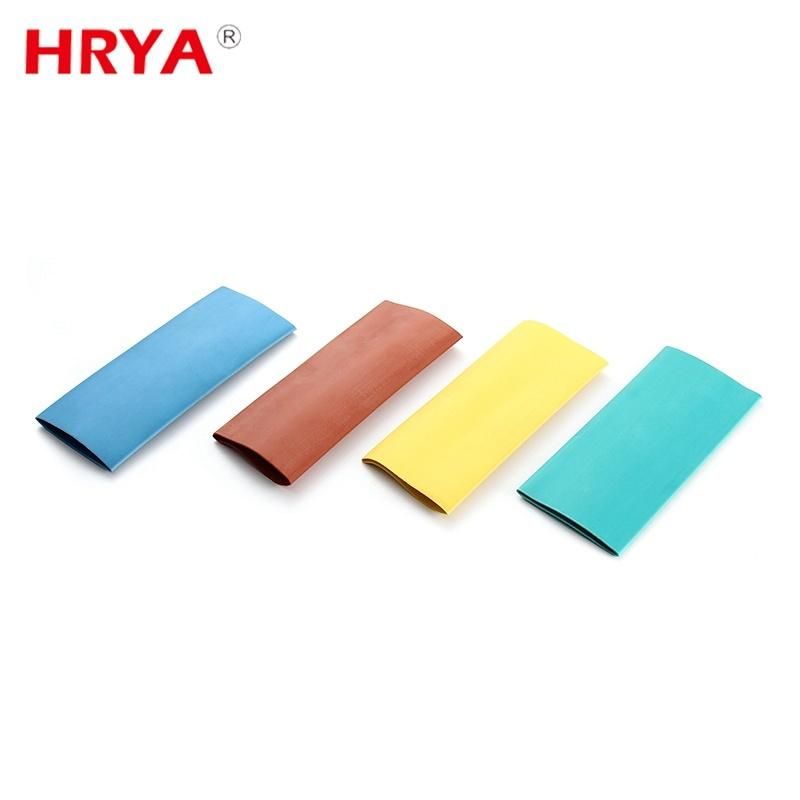

PE Material Wire Insulation Waterproof Colorful Heat Shrink Adhesive Heat Shrink Tubing

Yueqing HRYA Electric Technology Co., Ltd.
  • Color：Red, Yellow, Blue, Green,Black, White
  • Usage：Optical Cable, Lighting Decoration, Earphone Line, Electric Wire, DVI Line, HDMI Cable

Base Info

  • Material：PE
  • Type：Heat Shrinkable
  • Rated Voltag：Rated Voltag
  • Name：Heat Shrinkable Busbar Insulating Tube
  • Tensile Strength：>=14MPa
  • Transport Package：Carton
  • Specification：0.5mm-150mm
  • Trademark：HRYA
  • Origin：Zhejiang, China
  • HS Code：391733000
  • Production Capacity：100000
  • Package size per unit product：45.00cm * 45.00cm * 10.00cm
  • Gross weight per unit product：1.000kg

Description

Size
(mm)Before shrinkageAfter shrinkageStandard packing
( M/spool)Applicable cable range (mm)I/D(mm) Wall thickness(mm)I/D(mm) Wall thickness(mm)Ø0.6 0.9±0.2 0.10±0.05 ≤0.40 0.22±0.10 4000.5~0.7Ø0.8 1.0±0.2 0.15±0.05 ≤0.50 0.22±0.10 4000.6~0.8Ø1.0 1.5±0.3 0.15±0.05 ≤0.65 0.28±0.10 4000.75~0.9Ø1.5 2.0±0.3 0.18±0.05 ≤0.85 0.32±0.10 4000.95~1.4Ø2.0 2.5±0.3 0.18±0.05 ≤1.00 0.35±0.10 4001.1~1.8Ø2.5 3.0±0.3 0.18±0.05 ≤1.30 0.38±0.10 4001.4~2.3Ø3.0 3.5±0.4 0.18±0.05 ≤1.50 0.40±0.10 4001.6~2.7Ø3.5 4.0±0.4 0.22±0.05 ≤1.80 0.42±0.10 4001.9~3.2Ø4.0 4.5±0.4 0.25±0.05 ≤2.00 0.45±0.10 4002.4~4.0Ø4.5 5.0±0.4 0.25±0.05 ≤2.30 0.50±0.10 2002.6~4.5Ø5.0 5.5±0.4 0.25±0.05 ≤2.5 0.55±0.10 2002.85~5.0Ø6.0 6.5±0.4 0.28±0.05 ≤3.0 0.55±0.10 2003.1~5.4Ø7.0 7.5±0.4 0.28±0.05 ≤3.5 0.55±0.10 1003.7~6.3Ø8.0 8.5±0.5 0.28±0.05 ≤4.0 0.60±0.10 1004.2~7.2Ø9.0 9.5±0.5 0.30±0.08 ≤4.5 0.60±0.10 1004.7~8.0Ø10 10.5±0.5 0.30±0.08 ≤5.0 0.60±0.10 1005.2~9.0Ø11 11.5±0.5 0.30±0.08 ≤5.5 0.60±0.10 1005.7~10Ø12 12.5±0.5 0.30±0.08 ≤6.0 0.60±0.10 1006.2~11Ø13 13.5±0.5 0.35±0.10 ≤6.5 0.65±0.10 1006.7~12Ø14 14.5±0.5 0.35±0.10 ≤7.0 0.65±0.10 1007.3~13Ø15 15.5±0.6 0.40±0.12 ≤7.5 0.70±0.10 1007.8~14Ø16 17.0±0.6 0.40±0.12 ≤8.0 0.70±0.10 1008.3~15Ø17 17.5±0.6 0.40±0.12 ≤8.5 0.70±0.10 1008.8~16Ø18 19.0±0.7 0.40±0.15 ≤9.0 0.80±0.15 1009.3~17Ø20 22.0±0.7 0.40±0.15 ≤10.0 0.80±0.15 10010.4~19Ø22 24.0±0.7 0.40±0.15 ≤11.0 0.80±0.15 10011.4~21Ø25 26.0±0.7 0.55±0.15 ≤12.5 0.90±0.15 5012.9~24Ø28 29.0±0.7 0.55±0.15 ≤14.0 0.90±0.15 5014.4~27Ø30 31.5±0.7 0.55±0.15 ≤15.0 0.95±0.15 5016~29Ø35 36.5±0.7 0.55±0.15 ≤17.5 1.00±0.15 5018~34Ø40 41.5±0.7 0.55±0.15 ≤20.0 1.00±0.15 5021~39Ø45 46.0±0.7 0.55±0.15 ≤22.5 1.00±0.15 2523.5~44Ø50 51.0±0.7 0.55±0.15 ≤25.0 1.00±0.15 2526~49Ø60 ≥60 0.60±0.15 ≤31.0 1.30±0.20 2535~55Ø70 ≥70 0.65±0.15 ≤36.0 1.30±0.20 2540~65Ø80 ≥80 0.70±0.15 ≤41.0 1.46±0.20 2545~75Ø90 ≥90 0.70±0.15 ≤46.0 1.46±0.20 2550~85Ø100 ≥100 0.70±0.20 ≤51.0 1.46±0.20 2555~95Ø120 ≥120 0.70±0.20 ≤61.0 1.56±0.20 2565~115Ø150 ≥150 0.70±0.20 ≤76.0 1.56±0.20 2580~145Ø180 ≥180 0.70±0.30 ≤91.0 1.56±0.20 2595~175PE Material Wire Insulation Waterproof Colorful Heat Shrink Adhesive Heat Shrink Tubing
