Zipper Design Heat Shrinkable Sleeve for Wire and Cable Repair Installation
Yueqing HRYA Electric Technology Co., Ltd.- Certification:CSA, UL, CCC
- Color:Black
- IP Rating:IP65
- Material:PE
- Type:Heat Shrinkable
- Trademark:HRYA
Base Info
- Model NO.:Heat Shrinkable Sleeve
- Origin:Wenzhou China
- Production Capacity:1000000
Description
Basic Info.
Model NO. Heat Shrinkable Sleeve Origin Wenzhou China Production Capacity 1000000Product Description
Specifications:
1.Emergency cable repair and sealing system
2.Abrasion and corrosion resistant
3.Semi-rigid out layer
4.Moisture proof

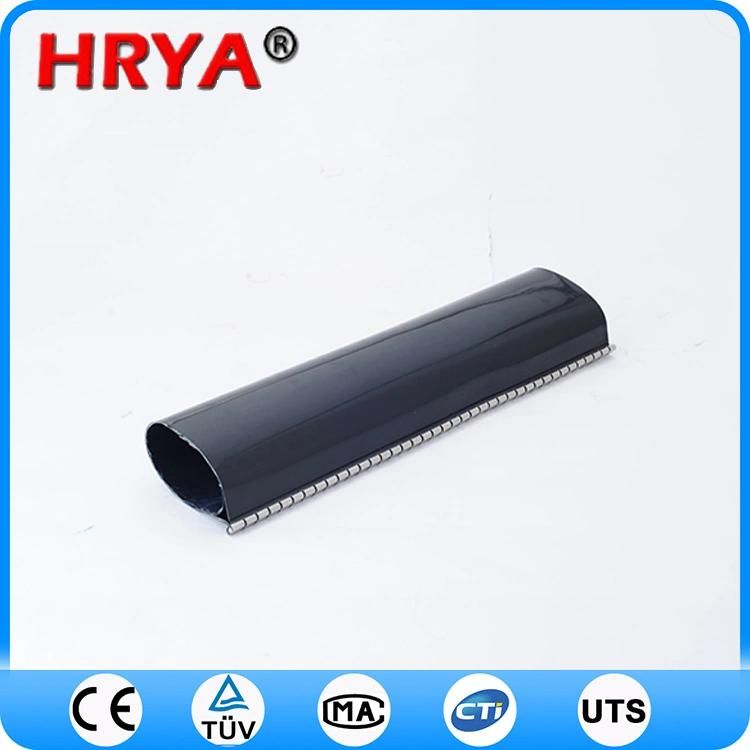

Heat Shrinkable Repair Sleeve

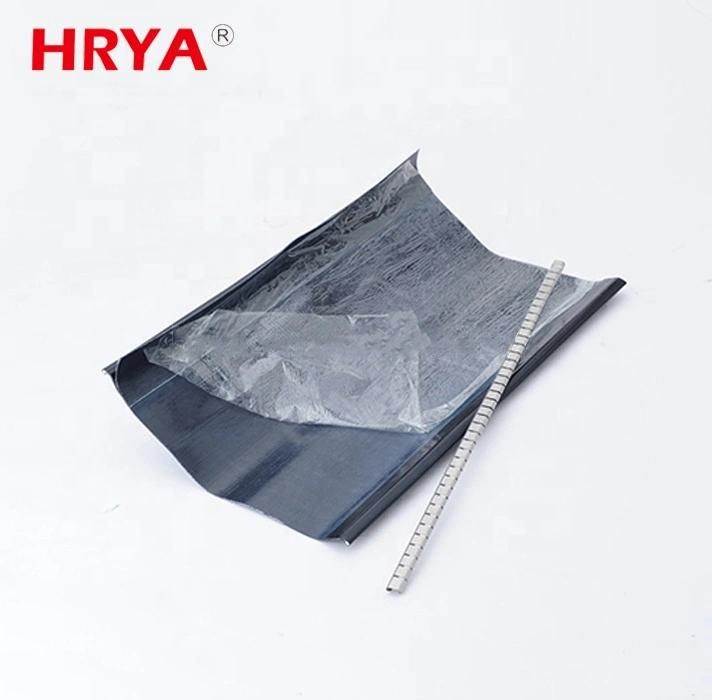

Heat shrinkable repair sleeve is adhesive lined and closed with a flexible stainless-steel locking channel. Specifically designed to quickly repair damaged cable jacketing,
providing sealing, insulation and protection of odd-shaped electrical objects where tubing insulation materials are not applicable
Features & Benefits· Quickly fitted in breakage
· Insulating and tight-fitting repair obtained in one step by heating, which makes the sleeve diameter shrink and the adhesive
coating melt and flow into interstices
· Moisture-proof
· Semi-rigid out layer provides abrasion and corrosion resistance
· Performs well in harsh environment
· Steel channel enables permanent closure system
· Customized lengths are available
· RoHS compliant, halogen free
Temperature RangeOperating Temperature: -25~9CShrink Temperature: 135CColour:Black Product Code Cross ReferencesRaychem/Tyco: CRSMDSG Canusa: CRDW
3M: HDCW
Item | Test Method | Typical Data |
Tensile strength | ASTM D2671 | ≥ 17MPa |
Tensile strength after aging | ASTM D2671 | ≥ 14MPa |
Elongation at break | ASTM D2671 | ≥ 350% |
Elongation at break after aging | ASTM D2671/150°, 168hrs | ≥ 300% |
Density | ASTM D792 | 0.94g/cm3 |
Longitudinal shrink ratio | UL224 | < 5% |
Dielectric strength | IEC243 | ≥ 36kV/mm |
Volume resistivity | IEC93 | ≥ 10 14 Ω · cm |
Copper stability | ASTM D2671 | Pass |
Water absorptive | ISO 62/23°, 14days | < 0.15% |
Low Temperature Flexibility | ASTM D2671 | No cracking |
Resistance to fungus and decay | ISO 846 | Pass |
Specification:
Model | Supply Size | Diameter after heat aging (mm) | Cable's diameter (mm) |
HY 28/6 | 22 | 6 | 7~15 |
HY 36/10 | 36 | 10 | 12~20 |
HY 50/15 | 50 | 15 | 18~40 |
HY 60/18 | 60 | 18 | 20~50 |
HY70/22 | 70 | 22 | 25~60 |
HY 80/25 | 80 | 25 | 30~70 |
HY100/30 | 100 | 30 | 35~90 |
HY 135/38 | 135 | 38 | 40~120 |
HY164/45 | 164 | 45 | 50~150 |
HY185/55 | 185 | 55 | 65~165 |
HY 200/60 | 200 | 60 | 80~180 |
HY220/65 | 220 | 65 | 90~200 |
HY 240/70 | 240 | 70 | 100~220 |
HY 260/75 | 260 | 75 | 120~240 |
HY 280/80 | 280 | 65 | 140~260 |
HY 300/85 | 300 | 65 | 160~280 |
