Item NO. | Lenght | Width (mm) | Max.Bundle Dia. E (mm) | Min.loop Tensile Strength |
Inch | mm | LBS | KGS |
CHS-3×60 | 2 3/8″ | 60 | 2.5 | 11 | 18 | 8 |
CHS-3×80 | 3 3/16″ | 80 | 2.5 | 16 | 18 | 8 |
CHS-3×90 | 3 5/8″ | 90 | 2.5 | 18 | 18 | 8 |
CHS-3×100 | 4″ | 100 | 2.5 | 22 | 18 | 8 |
CHS-3×120 | 43/4″ | 120 | 2.5 | 28 | 18 | 8 |
CHS-3×140 | 51/2″ | 140 | 2.5 | 33 | 18 | 8 |
CHS-3×150 | 6″ | 150 | 2.5 | 35 | 18 | 8 |
CHS-3×160 | 6 1/4″ | 160 | 2.5 | 40 | 18 | 8 |
CHS-3×200 | 8″ | 200 | 2.5 | 53 | 18 | 8 |
CHS-3×250 | 10″ | 250 | 2.5 | 64 | 18 | 8 |
CHS-4×100 | 4″ | 100 | 3.6 | 22 | 40 | 18 |
CHS-4×120 | 4 3/4″ | 120 | 3.6 | 30 | 40 | 18 |
CHS-4×140 | 5 1/2″ | 140 | 3.6 | 33 | 40 | 18 |
CHS-4×150 | 6″ | 150 | 3.6 | 35 | 40 | 18 |
CHS-4×180 | 7″ | 180 | 3.6 | 44 | 40 | 18 |
CHS-4×200 | 8″ | 200 | 3.6 | 53 | 40 | 18 |
CHS-4×220 | 8 5/8″ | 220 | 3.6 | 58 | 40 | 18 |
CHS-4×250 | 10″ | 250 | 3.6 | 65 | 40 | 18 |
CHS-4×280 | 11″ | 180 | 3.6 | 70 | 40 | 18 |
CHS-4×300 | 11 5/8″ | 300 | 3.6 | 80 | 40 | 18 |
CHS-4×370 | 14 1/2″ | 370 | 3.6 | 102 | 40 | 18 |
CHS-5×120 | 4 3/4″ | 120 | 4.6 | 26 | 50 | 22 |
CHS-5×160 | 6 1/4″ | 160 | 4.6 | 39 | 50 | 22 |
CHS-5×180 | 7″ | 180 | 4.6 | 46 | 50 | 22 |
CHS-5×190 | 7 1/2″ | 190 | 4.6 | 48 | 50 | 22 |
CHS-5×200 | 8″ | 200 | 4.8 | 5. | 50 | 22 |
CHS-5×250 | 10″ | 250 | 4.8 | 65 | 50 | 22 |
CHS-5×280 | 11″ | 280 | 4.8 | 70 | 50 | 22 |
CHS-5×300 | 11 8/5″ | 300 | 4.8 | 82 | 50 | 22 |
CHS-5×350 | 13 3/4″ | 350 | 4.8 | 30 | 50 | 22 |
CHS-5×380 | 15″ | 380 | 4.8 | 105 | 50 | 22 |
CHS-5×400 | 15 3/4″ | 400 | 4.8 | 108 | 50 | 22 |
CHS-5×430 | 17″ | 430 | 4.8 | 115 | 50 | 22 |
CHS-5×450 | 17 3/4″ | 450 | 4.8 | 130 | 50 | 22 |
CHS-5×500 | 19 11/16″ | 500 | 4.8 | 150 | 50 | 22 |
CHS-7×150 | 6″ | 150 | 6.8 | 33 | 85 | 38 |
CHS-7×180 | 7″ | 180 | 6.8 | 43 | 85 | 38 |
CHS-7×200 | 8″ | 200 | 6.8 | 50 | 85 | 38 |
CHS-7×250 | 10″ | 250 | 6.8 | 65 | 85 | 38 |
CHS-8×200 | 8″ | 200 | 7.6 | 50 | 120 | 55 |
CHS-8×250 | 10″ | 250 | 7.6 | 63 | 120 | 55 |
CHS-8×300 | 11 5/8″ | 300 | 7.6 | 80 | 120 | 55 |
CHS-8×350 | 13 3/4″ | 350 | 7.6 | 90 | 120 | 55 |
CHS-8×370 | 14 1/4″ | 370 | 7.6 | 98 | 120 | 55 |
CHS-8×400 | 15 3/4″ | 400 | 7.6 | 105 | 120 | 55 |
CHS-8×450 | 17 3/4″ | 450 | 7.6 | 125 | 120 | 55 |
CHS-8×500 | 19 11/16″ | 500 | 7.6 | 145 | 120 | 55 |
CHS-8×550 | 21 1/16″ | 550 | 7.6 | 160 | 120 | 55 |
CHS-8×600 | 23 5/8″ | 600 | 7.6 | 170 | 120 | 55 |
CHS-8×650 | 25 9/16″ | 650 | 7.6 | 190 | 120 | 55 |
CHS-8×750 | 29 9/16″ | 750 | 7.6 | 220 | 120 | 55 |
CHS-9×450 | 173/4″ | 450 | 9.0 | 120 | 175 | 80 |
CHS-9×530 | 20 3/4″ | 530 | 9.0 | 150 | 175 | 80 |
CHS-9×550 | 21 1/16″ | 550 | 9.0 | 160 | 175 | 80 |
CHS-9×600 | 23 5/8″ | 600 | 9.0 | 170 | 175 | 80 |
CHS-9×650 | 25 9/16″ | 650 | 9.0 | 190 | 175 | 80 |
CHS-9×700 | 271/2″ | 700 | 9.0 | 205 | 175 | 80 |
CHS-9×760 | 30″ | 760 | 9.0 | 225 | 175 | 80 |
CHS-9×920 | 36 1/4″ | 920 | 9.0 | 265 | 175 | 80 |
CHS-9×1020 | 401/6″ | 1020 | 9.0 | 295 | 175 | 80 |
CHS-9×1150 | 45 1/4″ | 1150 | 9.0 | 310 | 175 | 80 |
CHS-9×1220 | 48″ | 1220 | 9.0 | 340 | 175 | 80 |
CHS-9×1350 | 53″ | 1350 | 9.0 | 380 | 175 | 80 |
CHS-9×1550 | 61″ | 1550 | 9.0 | 470 | 175 | 80 |
CHS-10×450 | 17 3/4″ | 450 | 10.0 | 125 | 200 | 91 |
CHS-10×500 | 19 11/16″ | 500 | 10.0 | 145 | 200 | 91 |
CHS-12×300 | 11 5/8″ | 300 | 12.7 | 80 | 200 | 91 |
CHS-12×400 | 15 3/4″ | 400 | 12.7 | 105 | 200 | 91 |
CHS-12×540 | 21 1/4″ | 540 | 12.7 | 155 | 200 | 91 |
CHS-12×650 | 25 9/16″ | 650 | 12.0 | 190 | 200 | 91 |
CHS-12×750 | 29 9/16″ | 750 | 12.0 | 220 | 200 | 91 |
CHS-12×780 | 30 3/4″ | 780 | 12.7 | 230 | 200 | 91 |
CHS-13×540 | 21 1/4″ | 540 | 13.0 | 155 | 200 | 91 |
CHS-1.8×100 | 4″ | 100 | 1.8 | 22 | 14 | 6.5 |
CHS-1.9×120 | 4 3/4″ | 120 | 1.9 | 28 | 14 | 6.5 |
CHS-1.9×150 | 6″ | 150 | 1.9 | 35 | 14 | 6.5 |
CHS-2.0×200 | 8″ | 200 | 2.0 | 50 | 14 | 8 |
CHS-2.2×60 | 2 3/8″ | 60 | 2.2 | 11 | 14 | 8 |
CHS-2.2×80 | 3 3/16″ | 80 | 2.2 | 18 | 18 | 8 |
CHS-2.2×100 | 4″ | 100 | 2.2 | 22 | 18 | 8 |
CHS-2.2×120 | 4 3/4″ | 120 | 2.2 | 28 | 18 | 8 |
CHS-2.2×150 | 6″ | 150 | 2.2 | 35 | 18 | 8 |
CHS-2.2×200 | 8″ | 200 | 2.9 | 50 | 18 | 8 |
CHS-2.9×150 | 6″ | 150 | 2.9 | 35 | 33 | 15 |
CHS-2.9×200 | 8″ | 200 | 2.7 | 50 | 33 | 15 |
CHS-2.7×250 | 10″ | 250 | 2.9 | 65 | 33 | 15 |
CHS-2.9×300 | 11 5/8″ | 300 | 2.9 | 80 | 33 | 15 |
CHS-3.2×150 | 6″ | 150 | 3.2 | 35 | 40 | 18 |
CHS-3.2×180 | 7″ | 180 | 3.2 | 42 | 40 | 18 |
CHS-3.2×200 | 8″ | 200 | 3.2 | 50 | 40 | 18 |
CHS-3.2×250 | 10″ | 250 | 3.2 | 65 | 40 | 18 |
CHS-3.2×300 | 11 5/8″ | 300 | 3.2 | 80 | 40 | 18 |
CHS-3.7×350 | 13 3/4″ | 350 | 3.7 | 90 | 40 | 18 |
CHS-3.7×400 | 15 3/4″ | 400 | 3.7 | 108 | 40 | 18 |
CHS-4.2×180 | 7″ | 180 | 4.2 | 42 | 50 | 22 |
CHS-4.2×200 | 8″ | 200 | 4.2 | 50 | 50 | 22 |
CHS-4.2×250 | 10″ | 250 | 4.2 | 65 | 50 | 22 |
CHS-4.2×300 | 11 5/8″ | 300 | 4.2 | 80 | 50 | 22 |
CHS-4.2×350 | 13 3/4″ | 350 | 4.2 | 90 | 50 | 22 |
CHS-4.2×380 | 15″ | 380 | 4.2 | 102 | 50 | 22 |
CHS-4.2×400 | 15 3/4″ | 400 | 4.2 | 105 | 50 | 22 |
CHS-5.2×180 | 7″ | 180 | 5.2 | 42 | 65 | 30 |
CHS-5.2×200 | 8″ | 200 | 5.2 | 50 | 65 | 30 |
CHS-5.2×250 | 10″ | 250 | 5.2 | 65 | 65 | 30 |
CHS-5.2×300 | 11 5/8″ | 300 | 5.2 | 80 | 65 | 30 |
CHS-5.5×350 | 13 3/4″ | 350 | 5.5 | 90 | 65 | 30 |
CHS-5.5×400 | 15 3/4″ | 400 | 5.5 | 105 | 65 | 30 |
CHS-5.5×500 | 19 11/16″ | 500 | 5.5 | 150 | 65 | 30 |
CHS-6.0×270 | 10 5/8″ | 270 | 6.0 | 65 | 65 | 30 |
CHS-6.5×250 | 10″ | 250 | 6.5 | 65 | 85 | 38 |
CHS-6.5×300 | 11 5/8″ | 300 | 6.5 | 80 | 85 | 38 |
CHS-6.5×350 | 13 3/4″ | 350 | 6.5 | 90 | 85 | 38 |
CHS-6.5×400 | 15 3/4″ | 400 | 6.5 | 105 | 85 | 38 |
CHS-6.5×450 | 17 3/4″ | 450 | 6.5 | 125 | 85 | 38 |
CHS-6.5×500 | 19 11/16″ | 500 | 6.5 | 145 | 85 | 38 |

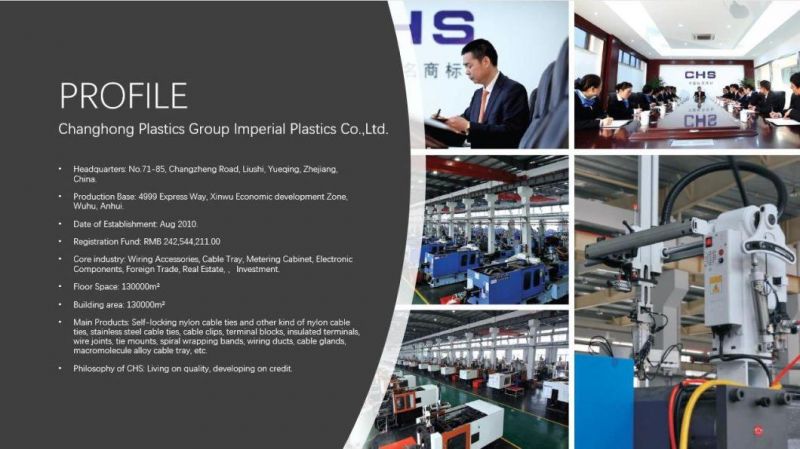

Company basic information:

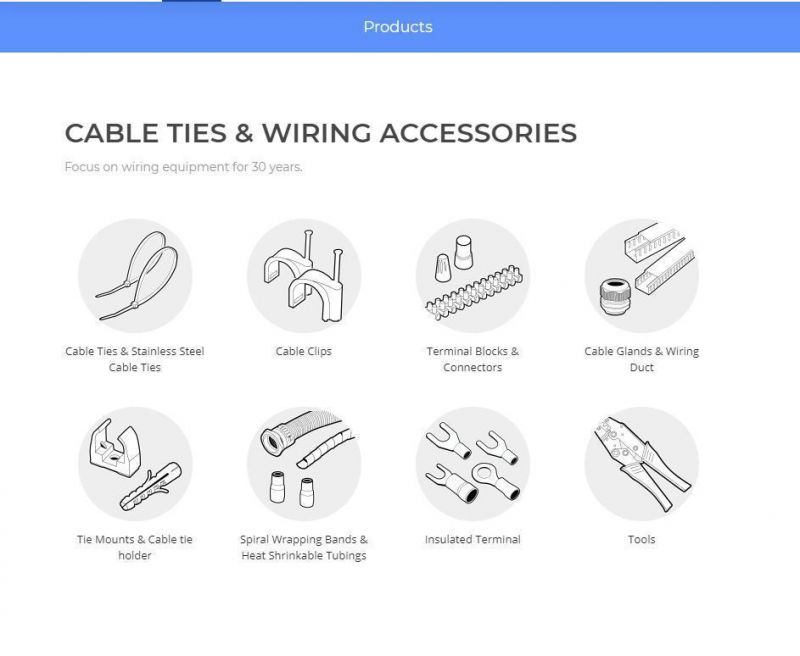

CHS MAIN PRODUCTS:

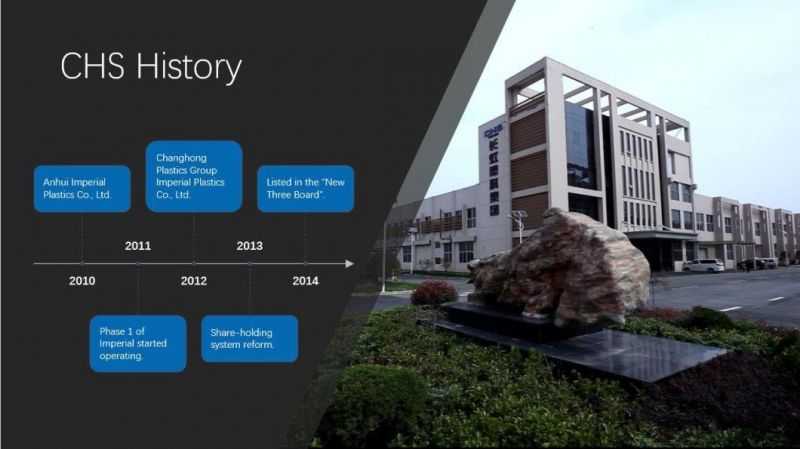

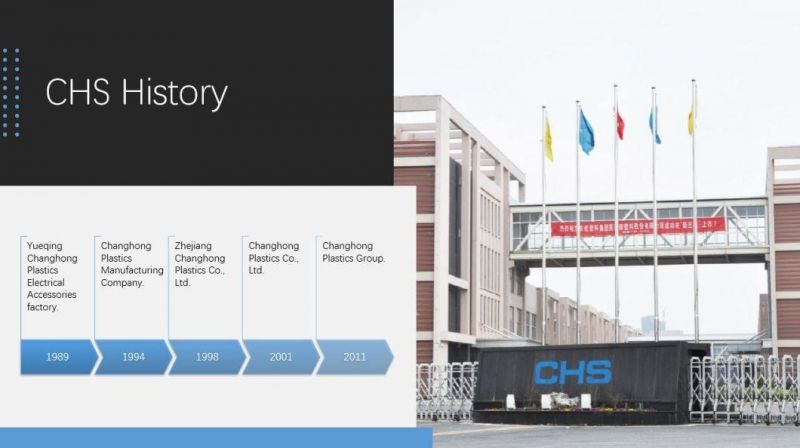

CHS HISTORY:
FACTORY BASIC INFORMATION:
CHS PRODUCTION:
Approval Certificates:
In 1998, CHS was approved by ISO9001 International Quality System.
In 1999, Cable ties were certified by UL.
In 2000, Terminal blocks were awarded CE certificate.
In 2002, Cable glands got CE approval and passed IP 68 test by England UKAS Inspection Institution.
In 2004, Insulated terminals got the CE approval.
In 2005, Cable ties were awarded DNV certificate by Norway Ship Classification Society.
In 2006, CHS products passed SGS tests, conforming to the environment-protection standard of EU.
In 2007, CHS is chosen as "Chinese Famous Brand"
In 2008, Terminal blocks were certified by NF.
Wire ioints were certified by UL.
CHS was approved by ISO14001-Environmental Management system.
In 2009, CHS was named "Zhejiang Brand Product".
In 2010, CHS was named "Wenzhou Top Export Brand".
In 2010, CHS was named "Zhejiang Top Export Brand".
CHS was approved by OHSAS18001.
CHS was upgraded to group "Changhong Plastics Group".
CHS′s production base-Wuhu in Anhui now is put into operation formally
WHY CHOOSE CHS?
A. 3M (material,mould,machine ) to produce high quality products
1) The top brand nylon 66 material Ascend
2) 9 lines of material feed stystem to keep the material in the same level hot runner mould widely applied to protect the quality

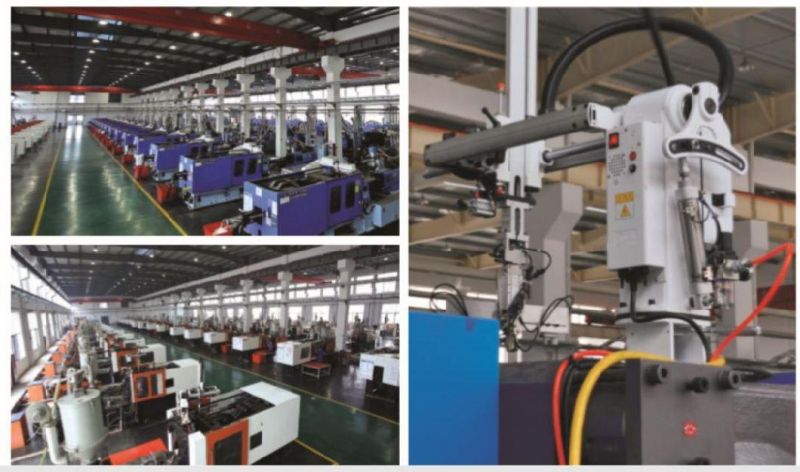

3) 200+ injection machine which has been applied with the auto-robot
B. Professional team and laboratory equipment to ensure production quality control
100 % inpection for the incoming raw material
100% inspecton for the first mold produce
3 tmes inspection during produce, packing and fnished product

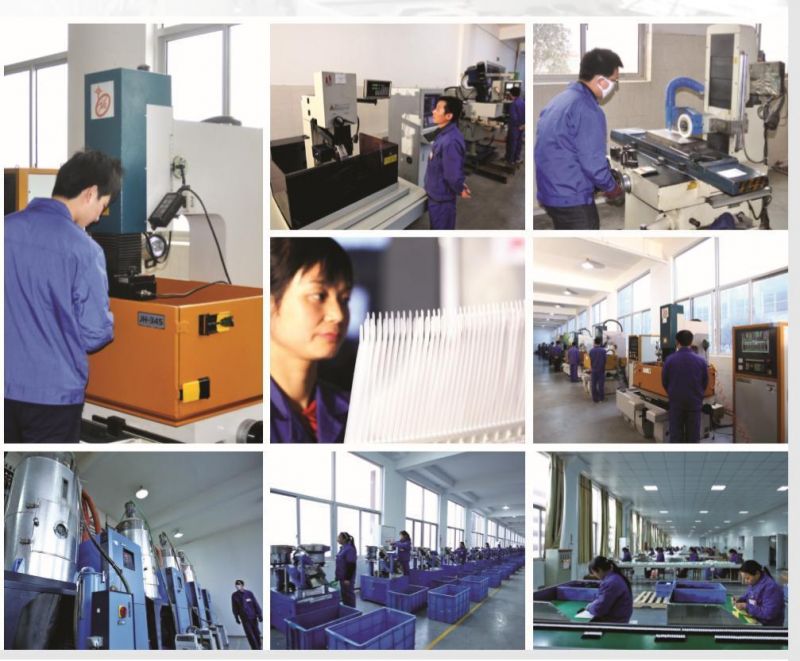

C. Own mould team, can develop and design new products according to customer needs 30+ mold engineer 1600+ mould, 30-45 days finish one mould in-house mould processing workshop,deal with 14 produres fo mould
D. CHS spirit encourage CHS people to move on
