• Model NO.：NL
• Structure：Preformed Dead End Guy Grips
• Standard：Standard
• Condition：New
• Brand：Optelec
• Transport Package：Wooden Case
• Specification：SGS
• Trademark：OPTELEC
• Origin：China
• HS Code：7326
• Production Capacity：50000PCS,Month

Basic Info.

Model NO. NL Structure Preformed Dead End Guy Grips Standard Standard Condition New Brand Optelec Transport Package Wooden Case Specification SGS Trademark OPTELEC Origin China HS Code 7326 Production Capacity 50000PCS/Month

Product Description

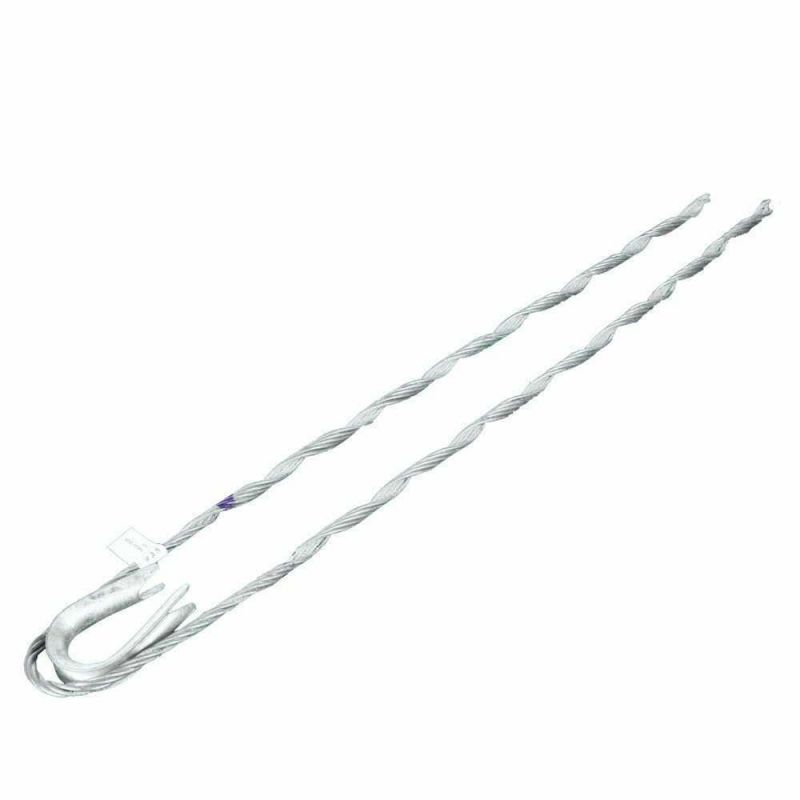

Guy grip for Guy Wire EHS with high quality




Description:
Guy-grip dead-ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The Guy-grip dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.

Guy-grip dead-ends are made of the same material as the strand to which they are applied. Guy-grip dead-ends should be used on hardware that is held in a fixed position. The fitting should not be allowed to rotate or spin about the axis of the strand. They should not be used as tools inlcuding come-alongs, pulling-in grips, etc.
 Technical Specifications:

Cat. No.	Guy Wire (mm)	Length(mm )	Guy Wire (mm 2 )	Weight (kg)	Color Code
NL-25/G	6.60	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.50	1333	95	1.7	Orange
NL-100/G	13.00	1333	100	1.7	Yellow
NL-120/G	14.00	1460	120	2.2	Yellow

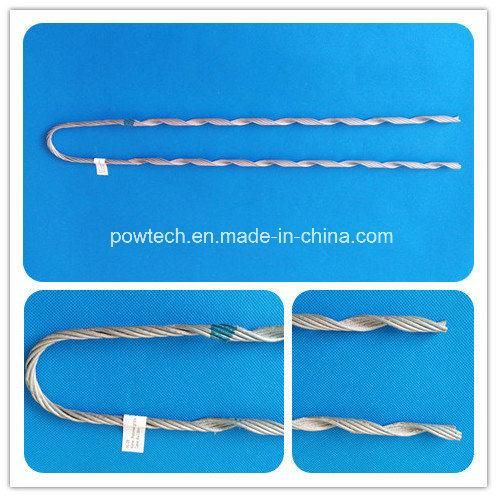

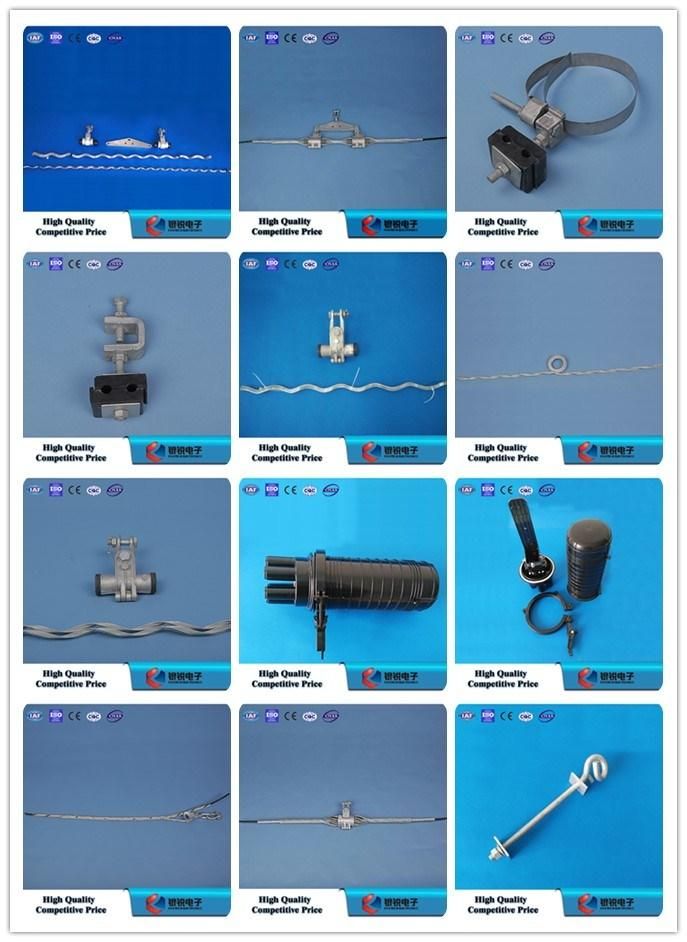

Detailed Images:

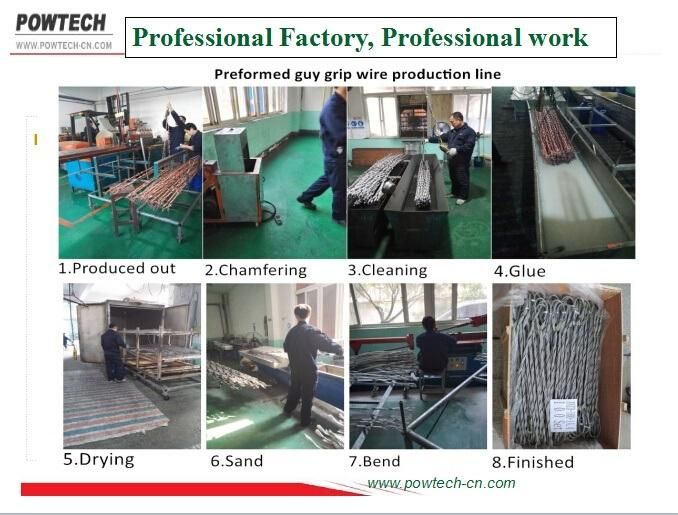

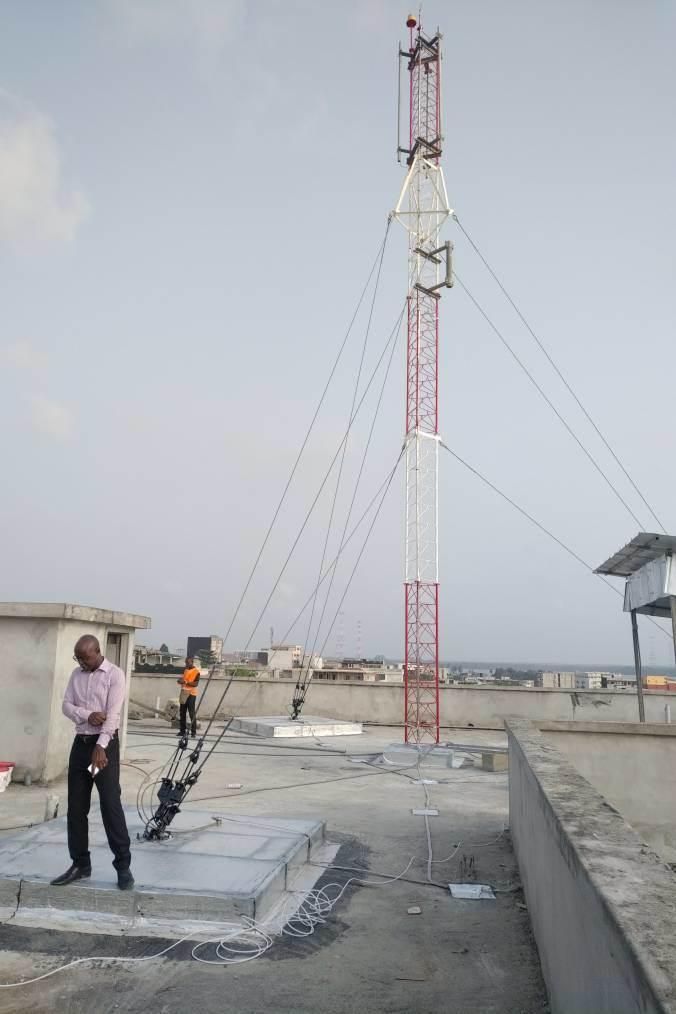

 Production Line:Installation Guide:

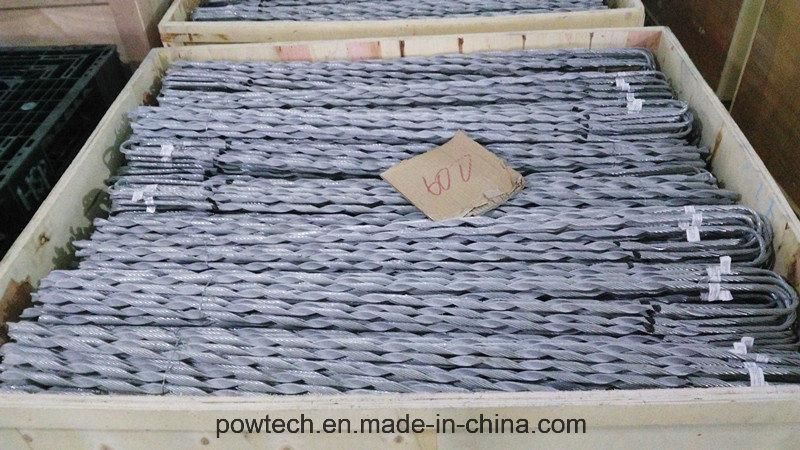

'Package&Shipment:
