Factory Direct Selling Preformed Guy Grip Dead End Clamps with Insulation Coating
Qingdao Powtech Electronics Co., Ltd.- Coating：Insulation Coating
- Material：Aluminum Alloy
- Transport Package：Carton
- Specification：CE, RoHS, SGS, ISO
- Trademark：OPTELEC
- Origin：China
Base Info
- Model NO.：NL-95
- HS Code：72202030
- Production Capacity：50000PCS,Month
Description
Basic Info.
Model NO. NL-95 HS Code 72202030 Production Capacity 50000PCS/MonthProduct Description

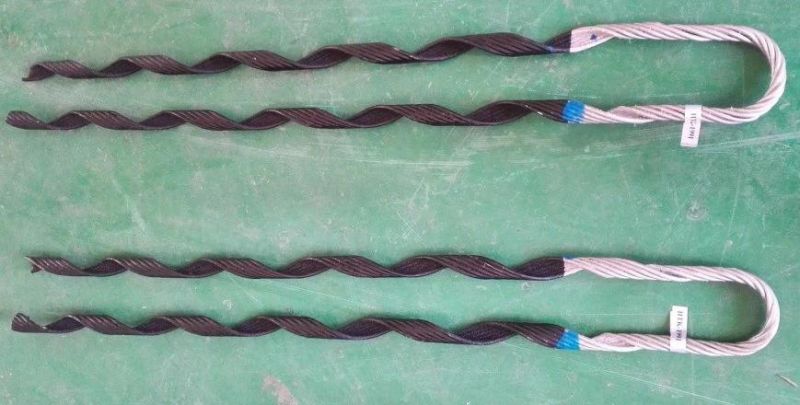

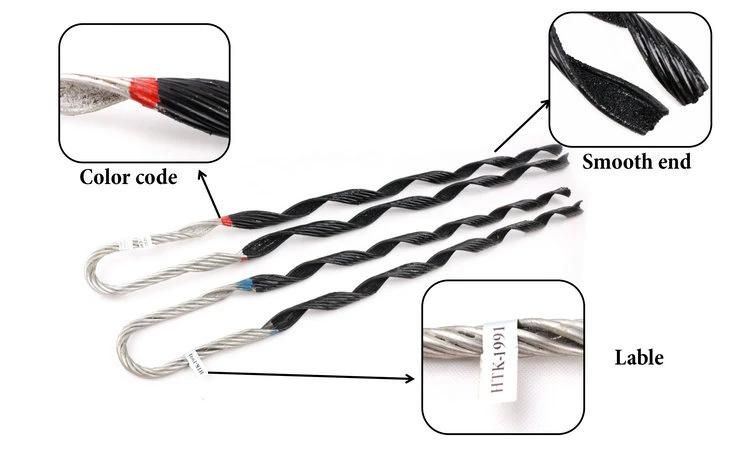

Aluminum Alloy Preformed Dead End Guy Grip with Insulation Coating
Aluminum alloy dead end grip with insulation coating for telecom cable, insulator conductor, fiber cable, TV cable, Digital cable
The aluminum alloy dead end grip with insulation coating has the main function to fix a pole/tower the cables, conductors, strands, structures
The area of the loop always must be protect with a suitable thimble, pulley, insulator etc.
Technical specs:
Cat. No. | Guy Wire (mm) | Applicable conductor size (Guy strand, mm2) | Length(mm ) | Weight (kg) | Color Code |
NL-25 | 6.60 | 25 | 635 | 0.2 | Yellow |
NL-35 | 7.65~7.95 | 35 | 711 | 0.3 | Black |
NL-50 | 8.95~9.30 | 50 | 901 | 0.5 | Orange |
NL-70 | 10.82~11.10 | 70 | 1016 | 0.8 | Green |
NL-95 | 12.50 | 95 | 1333 | 1.7 | Orange |
NL-100 | 13.00 | 100 | 1333 | 1.7 | Blue |
NL-120 | 14.00 | 120 | 1460 | 2.2 | Yellow |

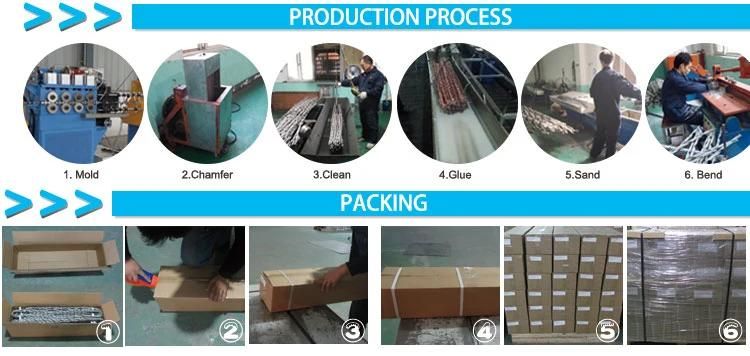

Production Process:
