• Model NO.：NL
• Material Shape：Round Wire
• Range of Application：Telecommunication
• Certification：Ce, RoHS, ISO9001, CCC, UL
• Brand：Optelec
• Transport Package：Carton
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：73269000
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. NL Material Shape Round Wire Range of Application Telecommunication Certification Ce, RoHS, ISO9001, CCC, UL Brand Optelec Transport Package Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/Day

Product Description

Preformed Dead End Clamp for Conductor with low price

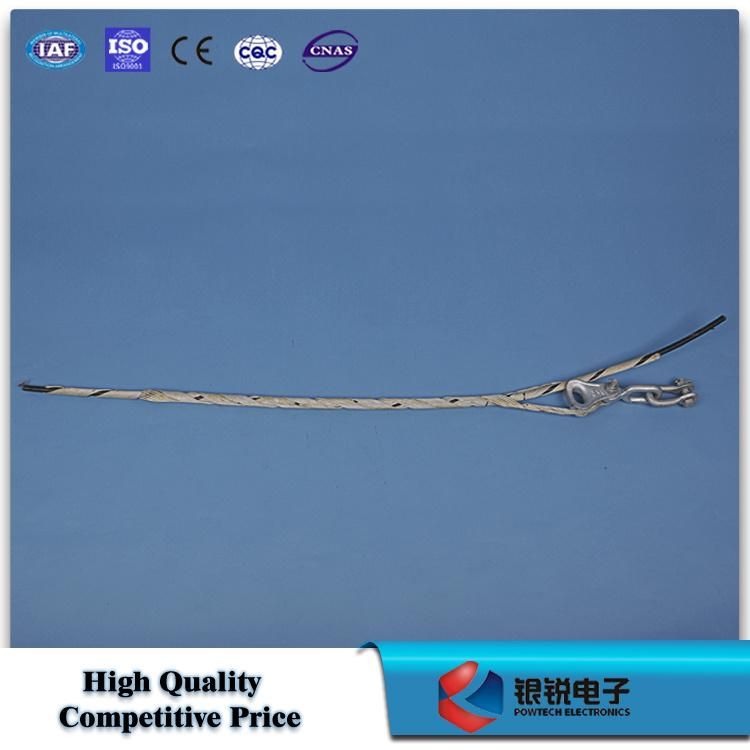

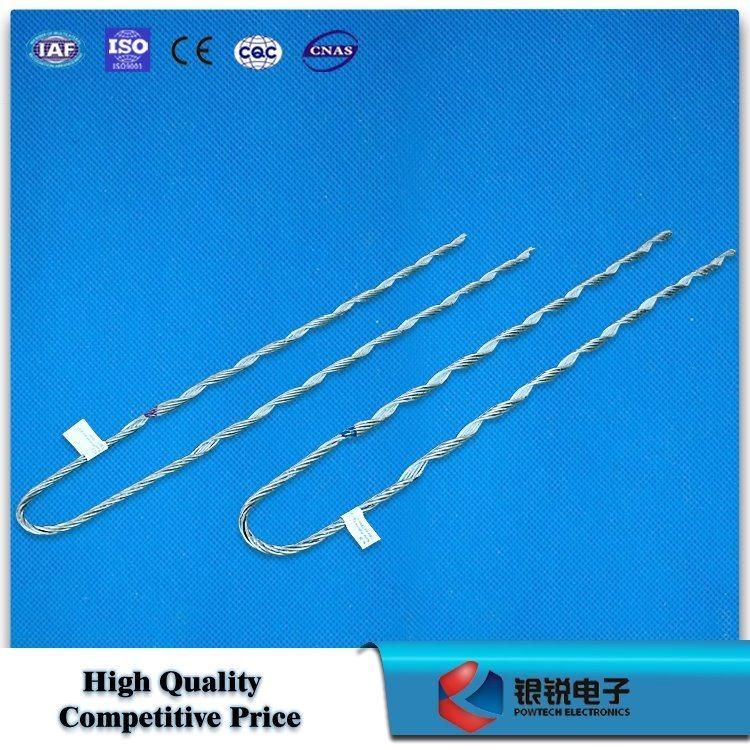

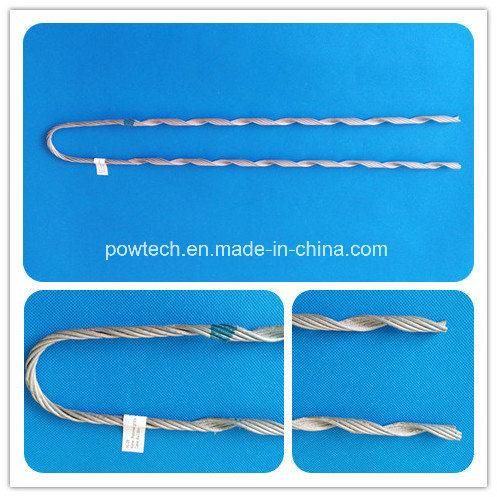

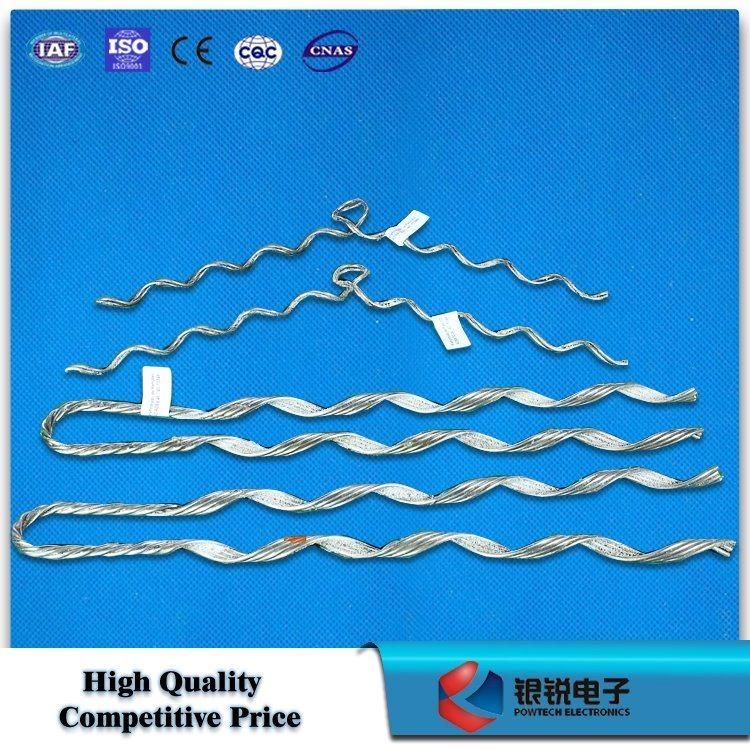

Detailed Images:


Description:

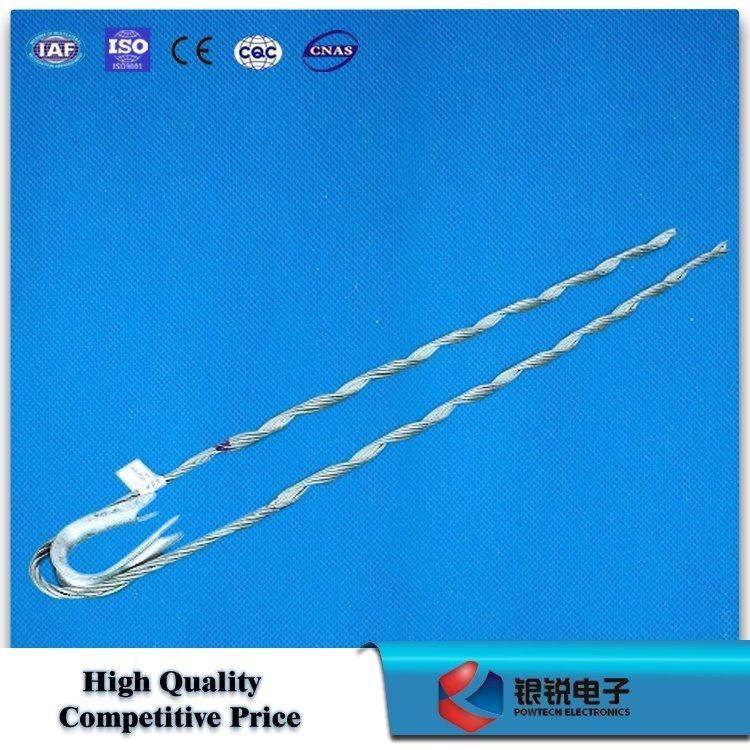

Product Name: Preformed dead ends
Model: NL
The preformed dead end made up of zinc-coated steel wire or aluminum clad steel wire is designed for single pole structured.
The preformed dead end has a firm strand link which can provide enough grip strength for ACSR, aluminum strand conductor, aluminum alloy stranded conductor etc, with larger size scope of applied conducting wire.

Function and Features
(1) High Strength: Each conductor strain clamp has an extra holding length, which can ensure the tensile strength reach over 100% of rating tensile strength.
(2) Good corrosion Resistance: The material is same as conductors, which ensure a strong corrosion resistance.
(3) Simple Installation: The Helical conductor tension clamp can be installed rapidly and easily at sit manually, needn't any special tool. It can be completed by one worker.
(4) Easy to Ensure Installation Quality: With well consistence, the conductor clamp wouldnt't damage conductor during installation, which can be check by eyes, with compact and good shape.
General Purpose: It can be used for many fittings.
Technical Specifications:

Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yellow

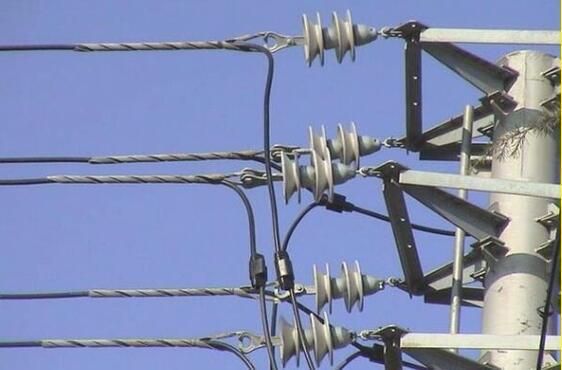

Installation Guide:

Advantages:
Reliability

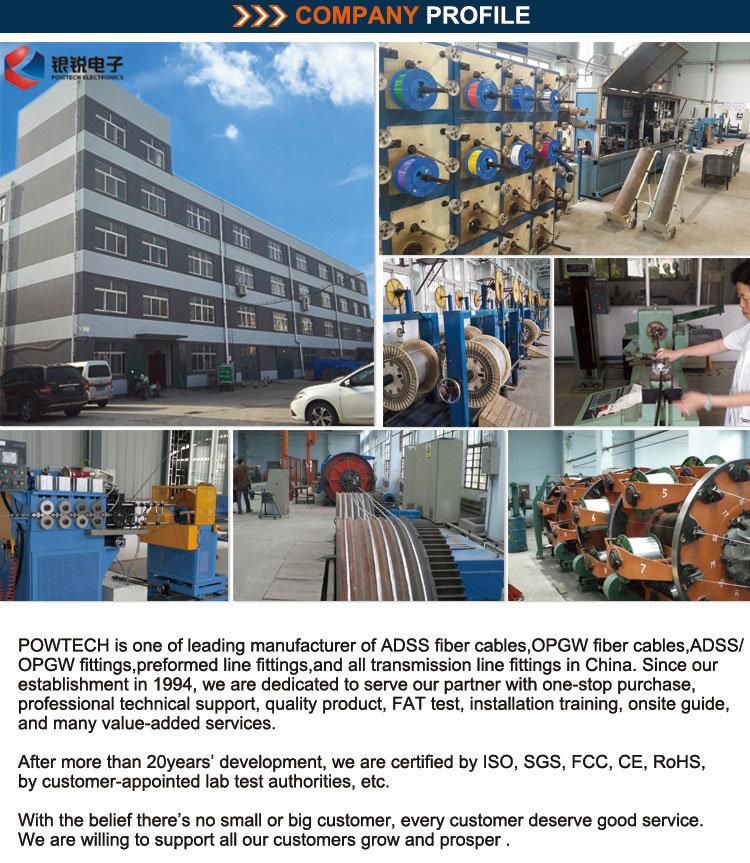

Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.

Why Choose Us?
1.Strict quality control system

2.Factory direct-sales,Lower purchasing cost

3.Professional,efficient after-sales service,Time and manpower saving

4.Experienced workers team,Advanced technicians,Sophisticated equipment

5.Small trial order/OEM product/artwork is acceptable

6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated

FAQ
