• Model NO.：DEC
• Customize：Yes

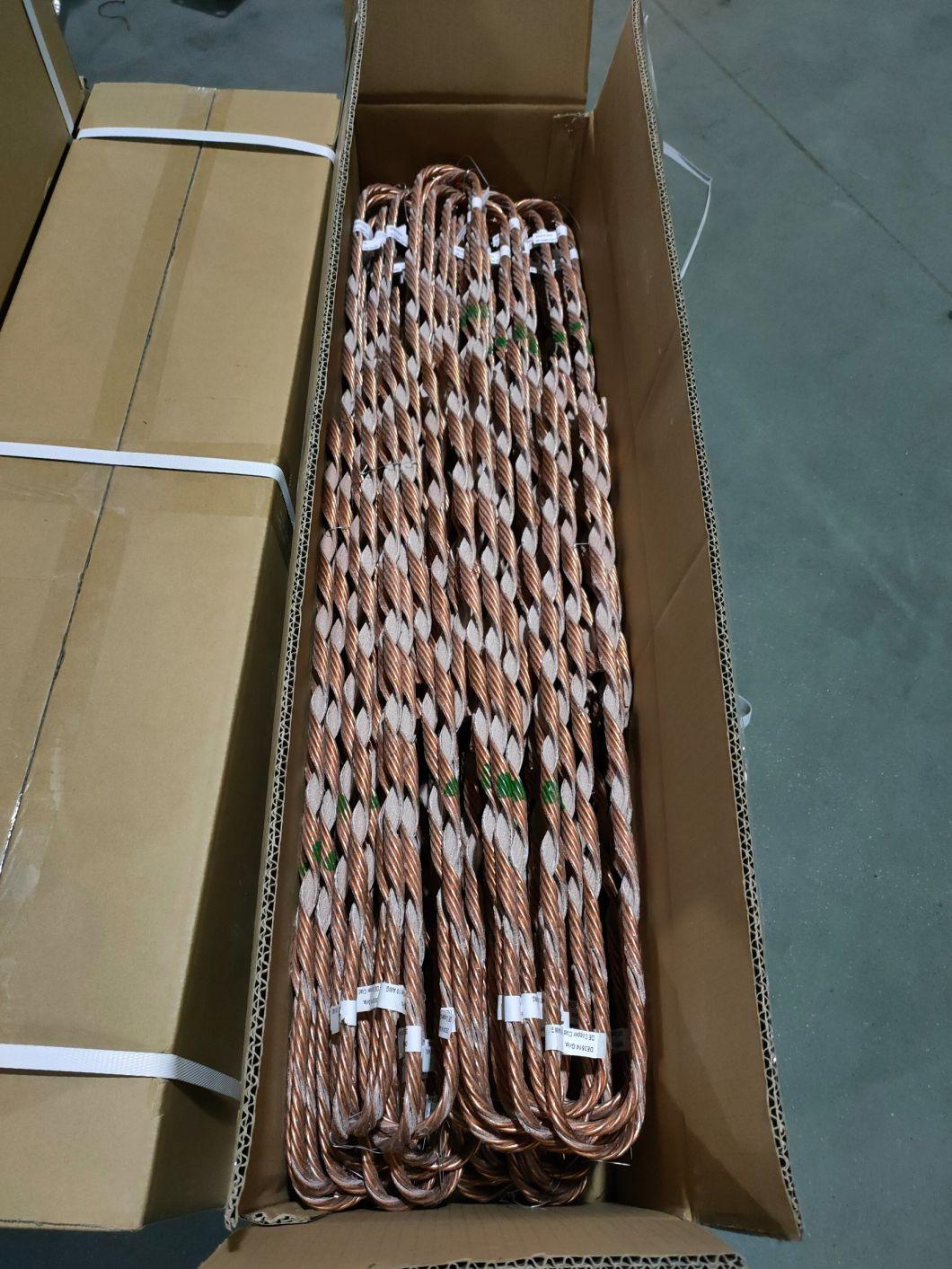

• Transport Package：50PCS,Carton
• Specification：CE, RoHS, SGS, ISO
• Trademark：Powtech
• Origin：China
• HS Code：73269000
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. DEC Customize Yes Transport Package 50PCS/Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/Day

Product Description

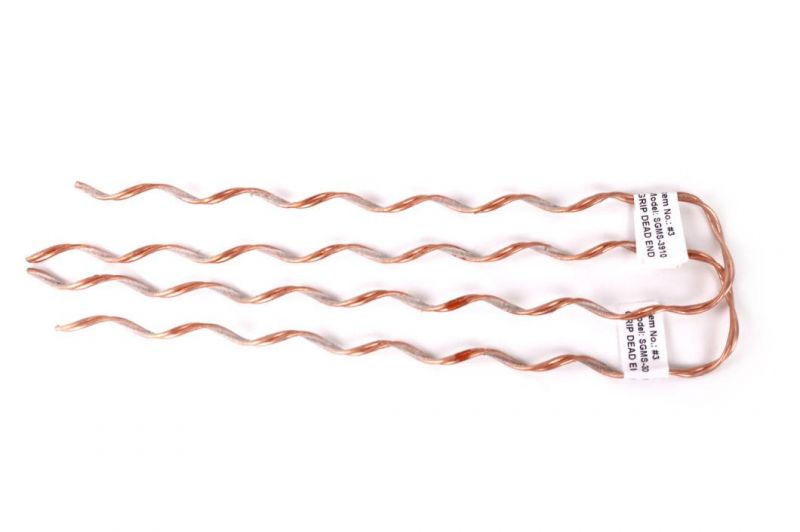

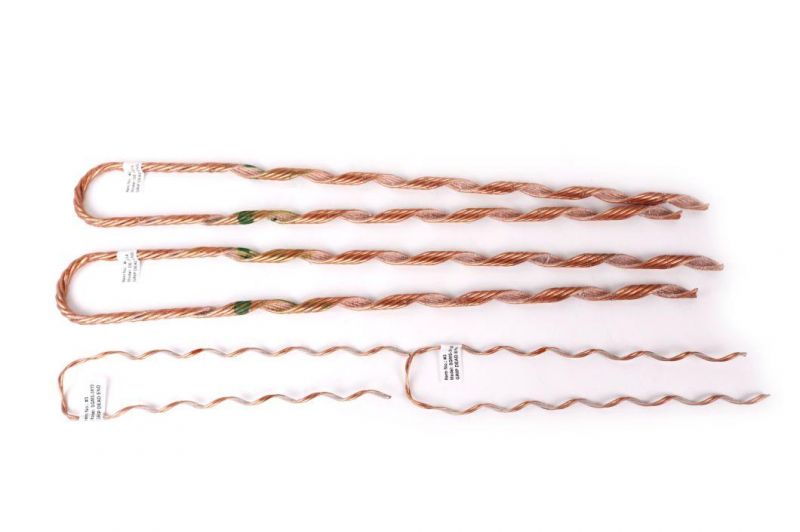

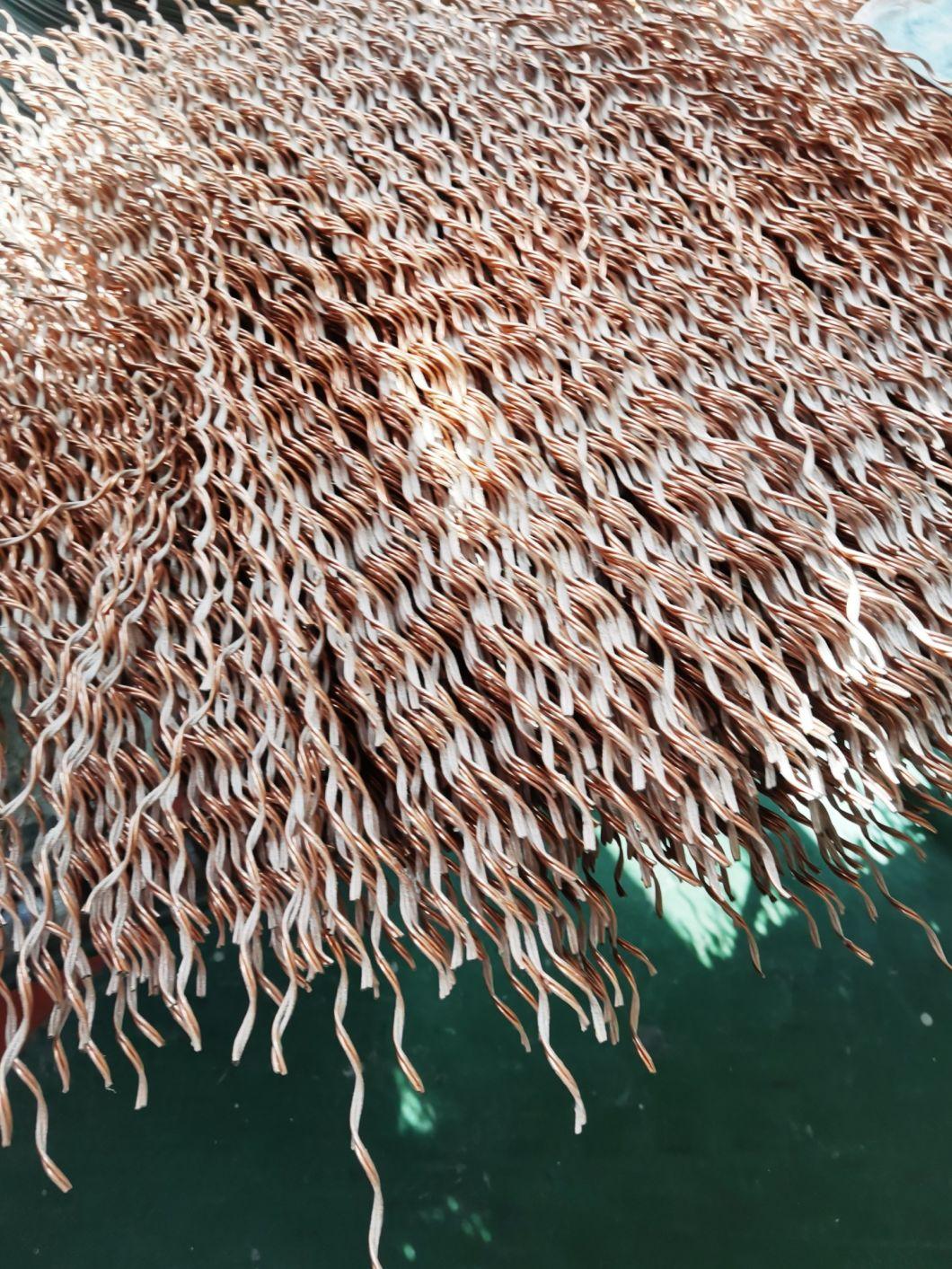

Preformed Dead End Clamp for Copper Conductor



Description:
The guy-grip dead end clamp for conductor can be applied to bear strain on overhead bared or insulated
covered conductors in transmission & distribution lines. It's the substitutes of the traditional dead end clamps
such as bolted type, compression type and wedge type.

Technical data sheet:

Cat. No.	Conductor   Range  (mm)	Applied    Length   (mm)	Units per    Carton  (pcs)	Weight    (kg)	Color   Code
DEC-0653	5.80~6.53	470	100	0.1	Orange
DEC-0734	6.54~7.34	545	100	0.2	Yellow
DEC-0924	8.27~9.24	700	100	0.2	Green
DEC-1038	9.25~10.38	700	100	0.25	Yellow
DEC-1168	10.40~11.68	735	50	0.4	Blue
DEC-1310	11.68~13.10	800	50	0.5	Orange
DEC-1466	13.11~14.66	870	30	0.6	Purple
DEC-1659	14.67~16.59	900	30	0.8	Blue
DEC-1877	16.60~18.77	990	20	1.1	Red
DEC-21.26	18.78~21.26	1020	15	1.5	Brown
DEC2405	21.27~24.05	1020	15	1.8	Green
DEC-2720	24.06~27.20	1020	10	2.2	Black
DEC-3078	27.21~30.78	1020	10	2.8	Purple
