Malleable Iron Insulated Grounding Bushing

TOPELE ENTERPRISE CO., LTD.
  • Color:Silver
  • Surface Treatment:Galvanised
  • Application:Used with Locknut to Terminate Threaded Conduit
  • Material:Malleable Iron
  • Type:Insulated and with Lug
  • Thread:NPT

Base Info

  • Model NO.:IGB
  • Transport Package:Carton Box + Packing Belt
  • Trademark:TOPELE
  • Origin:China
  • HS Code:8547901000
  • Production Capacity:100000 PCS Per Month

Description

Product :Grounding Conduit BushingMaterial:Malleable IronFinish:GalvanizedType:Insulated and with lugThread:NPTSize:1/2" to 4"Usage:Use to provide a means of grounding Rigid or IMC Conduit,Lug provided for bonding jumper to a neutral bus bar

Specifications:

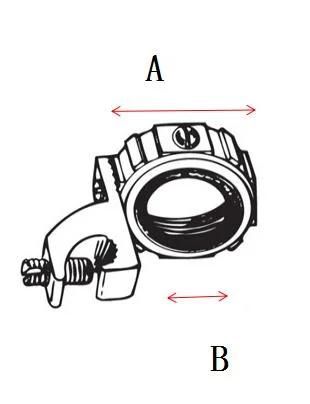

 Malleable Iron Insulated Grounding BushingItem No.Trade SizeDin A(Inch)Dim B(Inch)IGB-501/2''1.2600.787IGB-753/4''1.4810.986IGB-1001''1.8001.262IGB-1251-1/4''2.4051.595IGB-1501-1/2''2.5001.832IGB-2002''3.0282.325IGB-2502-1/2''3.6002.778IGB-3003''4.1623.466IGB-3503-1/2''4.7483.898IGB-4004''5.2984.450
TOPELE Malleable Iron Insulated Grounding Bushingis designed to ground wires in threaded IMC conduit or Rigid Metal Conduit and terminate those steel conduits to a box or enclosure. The insulated throat provides a protection for wires or cables when pulling. The insulating liner material is rated at 150 degree Celsius.The insulated throat grounding bushing in malleable iron construction ensures an excellent mechanical protection. This ground bushing is suitable for indoor and outdoor applications.
Malleable Iron Insulated Grounding Bushing

Malleable Iron Insulated Grounding BushingMalleable Iron Insulated Grounding BushingMalleable Iron Insulated Grounding BushingMalleable Iron Insulated Grounding BushingMalleable Iron Insulated Grounding BushingFAQ
Q1: Are you manufacture?
A: Yes,we have factory and warehouse in Fuyang Hangzhou city.
Q2: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.
Q3: How can I request a product catalog?
A: The hard copies of catalogs are free but courier charge will be collected.
The PDF catalog we can send to you by email or WeTransfer.
Q4: What is your payment terms?
A: 30% T/T deposit,balance against B/L faxed copy;
Irrevocable L/C 100% at sight and irrevocable.
Q5: How about the delivery time?
A:  Accord to your order list and quantity,mostly delivery in 30days.

Why choose us?

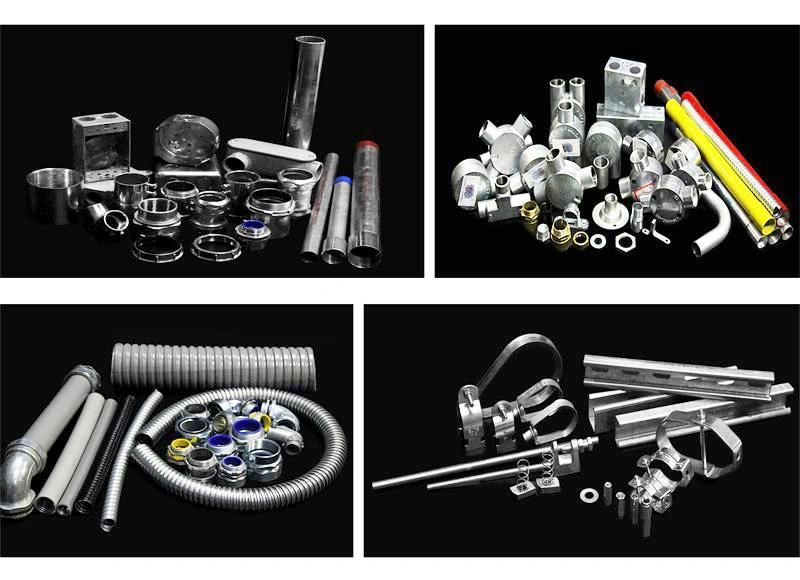

1. We are China Leading supply of Electrical Pipe,Strut Channel and Fittings.
2. TOPELE is famous brand and already approved by project engineer in different country.

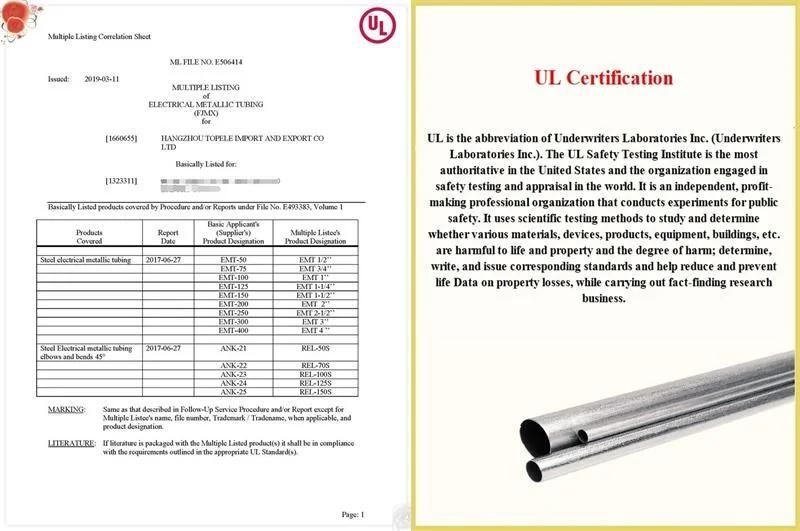

3. Inspected by the Inspection Institution of UL Certification.
4. 100% QC inspection before Shipment.
5. Best Quality & Best Service with Competitive price.
