ADSS Cable Accessories Dead End Tension Clamp

Qingdao Powtech Electronics Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Color：White
  • Fire Rating：High
  • Size：Customized
  • Material：Aluminium Clad Steel
  • Type：Cable Ties

Base Info

  • Model NO.：ANZ
  • Other Material：Galvanized Steel
  • Cable Dia：Customized
  • Transport Package：Wooden Case
  • Specification：CE, RoHS, SGS, ISO
  • Trademark：OPTELEC
  • Origin：China
  • HS Code：76169990
  • Production Capacity：10000PCS,Month

Description


ModelCable Dia.(mm)Inner Amour rod(mm)Outer Amour rod(mm)Breaking force(kN)Recommended span lengthANZ-2009.0-18.8100070020kN200mANZ-3009.0-18.8110080030kN300mANZ-4009.0-18.81400110040kN400mANZ-5009.0-18.81900120050kN500mANZ-6009.0-18.82000150060kN600mANZ-7009.0-18.82200170070kN700mANZ-8009.0-18.82300190080kN800mANZ-10009.0-18.829002000100kN1000m
Remarks:The ANZ series tension clamps are sold as an assembly,including a unit of Dead-end Rods,a unit of reinforcing amour rod,a clevis thimble,an extension link and an Anchor shackle.

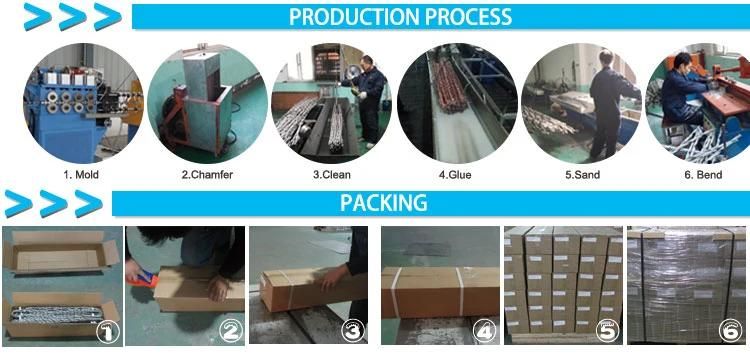

Production Line:
