• Production Capacity：50, 000 PCS,Year

Basic Info.

Production Capacity 50, 000 PCS/Year

Product Description

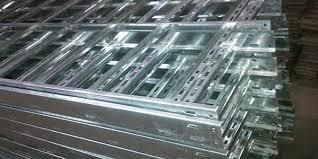

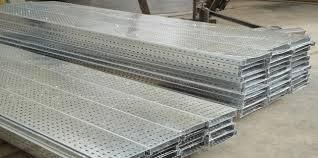

Cable tray

Reference      Width       Gauge
BS-50*12       50mm      0.9  1.5
BS-75*12       75mm      0.9  1.5
BS-100*12    100mm    0.9  1.5
BS-150*12    150mm    0.9  1.5
BS-225*12    225mm    0.9  1.5
BS-300*18    300mm     -    1.5
BS-450*18    450mm     -    1.5
BS-600*18    600mm     -    2.0
BS-750*18    750mm     -    2.0
BS-900*18    900mm     -    2.0

Reference      Width        Gauge
BS-50x25       50mm       0.8   1.0
BS-75x25       75mm       0.8   1.0
BS-100x25    100mm     0.8   1.0
BS-150x25    150mm     0.8   1.0
BS-225x25    225mm     1.0   1.2
BS-300x25    300mm     1.0   1.2
BS-450x25    450mm     -    1.5
BS-600x25    600mm     -    2.0
BS-750x25    750mm     -    2.0
BS-900x25    900mm     -    2.0

Reference      Width        Gauge
BS-50x50       50mm      1.0   1.5
BS-75x50       75mm      1.0   1.5
BS-100x50    100mm    1.0   1.5
BS-150x50    150mm    1.2   1.5
BS-225x50    225mm    1.2   1.5
BS-300x50    300mm    1.5   2.0
BS-450x50    450mm     -    2.0
BS-600x50    600mm     -    2.0
BS-750x50    750mm     -    2.0
BS-900x50    900mm     -    2.0

Standard Length: 3 Mtrs
Accessories
Covers (Medium & Heavy Duty cable trays)
90° Flat Bend (30°,45° & 60° also available on order)
90° Inside & Outside Risers (30°,45°& 60° also available) Equal Tee (Unequal Tees on order)
Equal Crossovers (Unequal Crossovers on order)
Reducers(Straight,Right & Left)
Couplers(Internal,external,horizontal & vertical)
