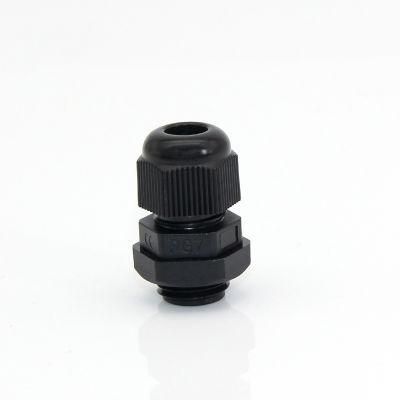

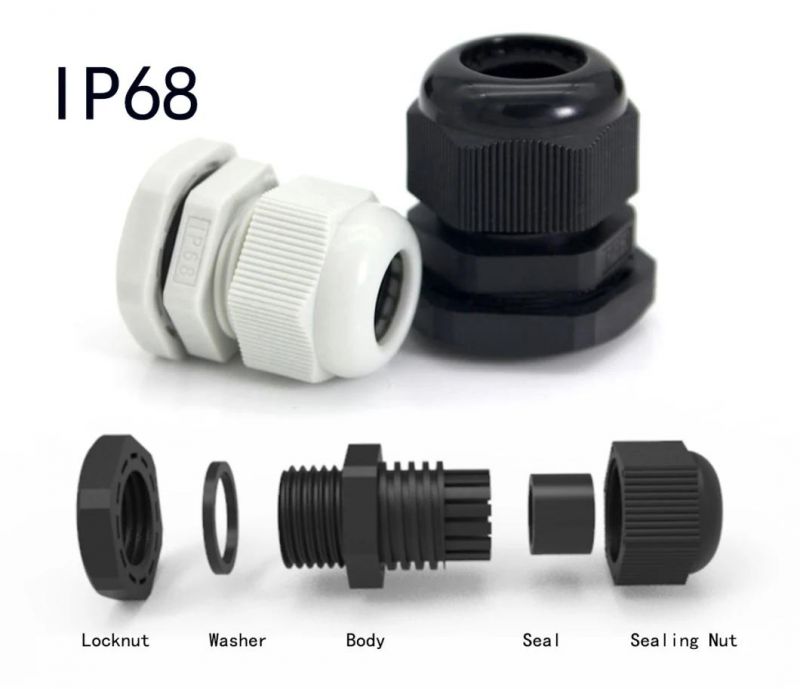

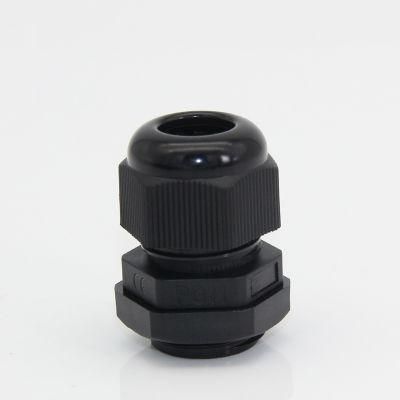

IP68 Electrical Waterproof Connector Mg Cable Gland M20 Plastic

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：No
  • Color：Black , Light Grey
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G
  • Cable Gland：Waterproof
  • Main Material：PA
  • Claw：Nylon
  • Seal & O Ring：NBR
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Black Color：Ral: 9017
  • Light Grey：Ral: 7035
  • Transport Package：Standard Export Carton
  • Specification：M , PG , NPT , G
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：854720000
  • Production Capacity：50000PCS,Month

Description

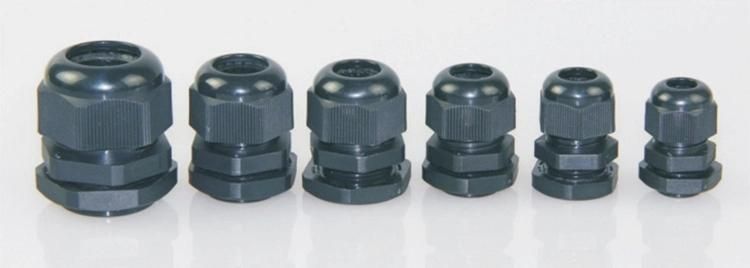

Product Name:Waterproof cable glandMain material:PlasticStandard size:M8-M120; PG7-PG63; NPT1/4-NPT2; G1/4 -G2Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableIP68 Electrical Waterproof Connector Mg Cable Gland M20 PlasticIP68 Electrical Waterproof Connector Mg Cable Gland M20 PlasticSizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M8x12-58512M10x13-6.510714M12x1.53-6.512816M16x1.54-816819M18x1.55-1018822M20x1.56-12201024M22x1.510-14221027M24x1.512-16241027M25x1.513-18251033M27x1.513-19271033M30x1.516-21301135.........................M72x242-50722877PG73-6.512.5816PG94-815.2819PG115-1018.6822PG13.56-1220.41024PG1610-1422.51027PG1912-16241027.........................PG6342-50712877NPT1/44-813.68.519NPT3/85-10171022NPT1/26-1221.21024NPT3/413-1826.51533NPT118-2533.21541.........................NPT1 1/417-2541.91552G1/44-813.18.519G3/85-1016.61022G1/26-1220.91027/24G3/413-1826.41236/33G118-2533.21546/41.........................G229-38601860/62

More size information, kindly contact us directly.. We provide customization service !
