Zinc Die Cast Threaded Rigid Watertight Hub Connector Fittings

TOPELE ENTERPRISE CO., LTD.
  • Color：Silver
  • IP Rating：IP68
  • Surface Treatment：Galvanised
  • Application：Connect Rigid or IMC Conduit to a Load Center
  • Material：Zinc
  • Certification：ISO

Base Info

  • Model NO.：Watertight Hub
  • Threaded：NPT
  • Transport Package：Carton Box + Packing Belt
  • Specification：1,2′′-4′′
  • Trademark：TOPELE
  • Origin：China
  • HS Code：8547901000
  • Production Capacity：100000 PCS Per Week

Description

Item No:Size:Dim A(Inch)Dim B(Inch)

C-1

1/2"

1.3281.325

C-2

3/4"

1.4481.512

C-3

1"

1.4501.788

C-4

1-1/4"

1.5752.295

C-5

1-1/2"

1.7002.445

C-6

2"

1.7002.875C-72-1/2''2.0503.325

C-8

3"

2.1504.050

C-10

4''

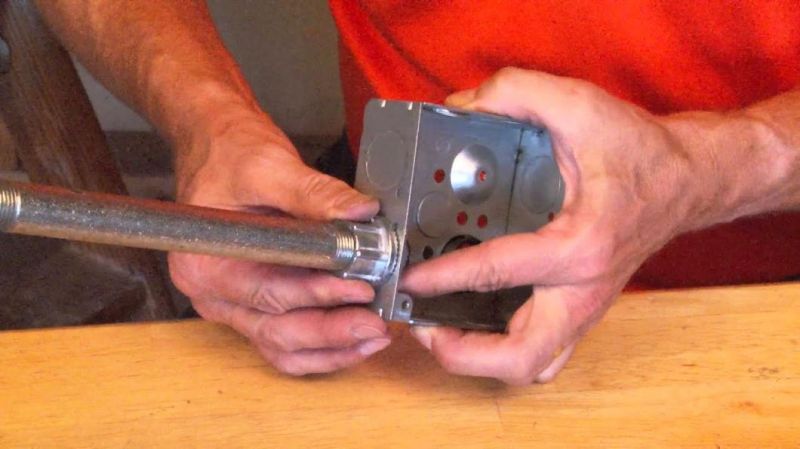

2.4505.050 Zinc Die Cast Threaded Rigid Watertight Hub Connector FittingsTOPELE Watertight Hub connects and effectively bonds RIGID or IMC Conduit to a load center or other metal enclosure. The characteristics of non-corrosive zinc is suitable for indoor or outdoor use.Design of plastic seals on top to protect the conduit from moisture.
