• Model NO.：ODF-F-144
• HS Code：85176229
• Production Capacity：1000 Set Per Week

Basic Info.

Model NO. ODF-F-144 HS Code 85176229 Production Capacity 1000 Set Per Week

Product Description

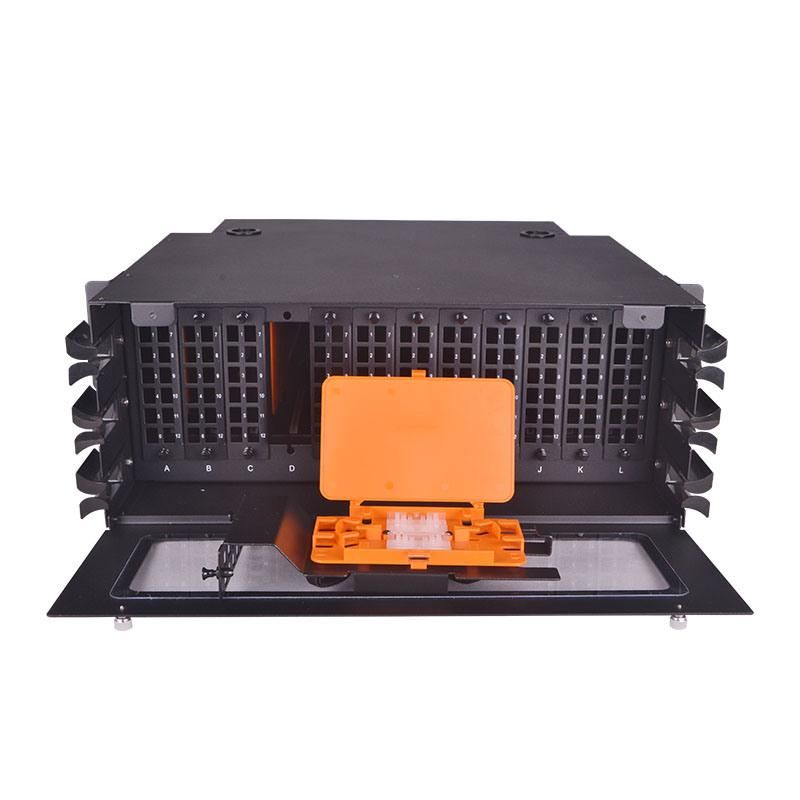

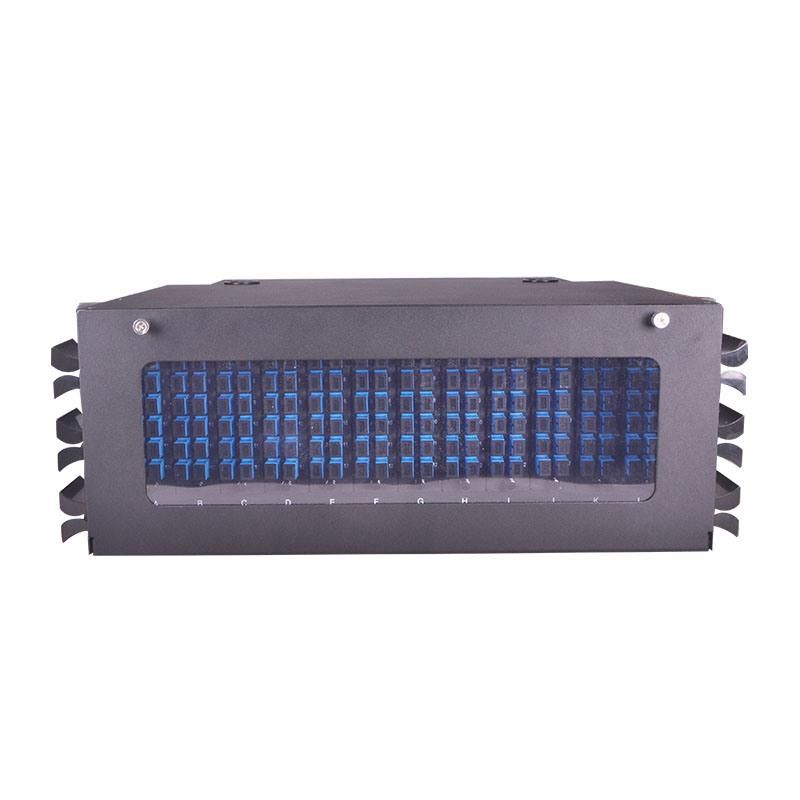

Fiber Optical Rack Mounted 144C Optical Frame


ODF Features

1.1.5mm steel sheet for strong housing
2. Slim 1 Unit Mounting Height
3. Ball bearing slid rails with positive stop
4. Sliding design is easy to work for patching the connectors
5. Hinged front panel is easy to be turned over & be fixed by snap-in locker
6. Front-mounted cable saddles for jumper management
7. Can manage both splices and terminations
8. Preassembled shelves in multiple configurations
9. Can includes adapter panels for up to 72 144SC terminations
10. High density splice tray contains 24 fiber maximum in one tray
11. Clear plastic cover to protect the fibers.
12.4 fiber saddles built-in for 900um tight buffered fiber winding & storing.
13. Capable of storing up to 3 meters of 900 μ M tight buffered fiber per adapter
14. Snap-in locker design, easy to change adapter panels for various connector patching
15. Removable rubber grommet allows for pre-terminated fiber trunk install, protects cable, and minimizes dust build-up
16. Accessory kit consists of cable ties, mounting ear screws, and spiral wrap tube

Parmeters:


Model	Size(mm)	Max. Core Capacity	splice tray	Weight(kg)
ODF-A	480x310x43.5	48 LC, 24 SC	12, 24	4.8
ODF-B	480x310x43.5	48 LC, 24 SC	12, 24	5
ODF-C	485x320x(60-180)	192LC, 96SC	12, 24	/
ODF-D	485x270x(43-240)	192LC, 96SC	12 core integrated splice tray	/
ODF-E	485x310x43.5	72 LC, 36 SC, 24 FC	12, 24	3.5
ODF-F	480x310x43.5	72 LC, 36 SC, 24 FC	12, 24	5
ODF-G 1U	480x310x43.5	120LC	MPO cassette	/
ODF-G 4U	480x310x17.5	288LC	MPO cassette, 12, 24 splice tray	/
