• Model NO.：UPB
• Origin：China
• HS Code：85044020
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. UPB Origin China HS Code 85044020 Production Capacity 10000PCS/Month

Product Description

Anchoring clamp anchor bracket hot selling China supplier
Product Description

The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

Product Features:

1.Material:Aluminum alloy

2.Anti-corrosive

3.Good mechanical performance

4.ISO,CE,UV

5.Customized quantity,design

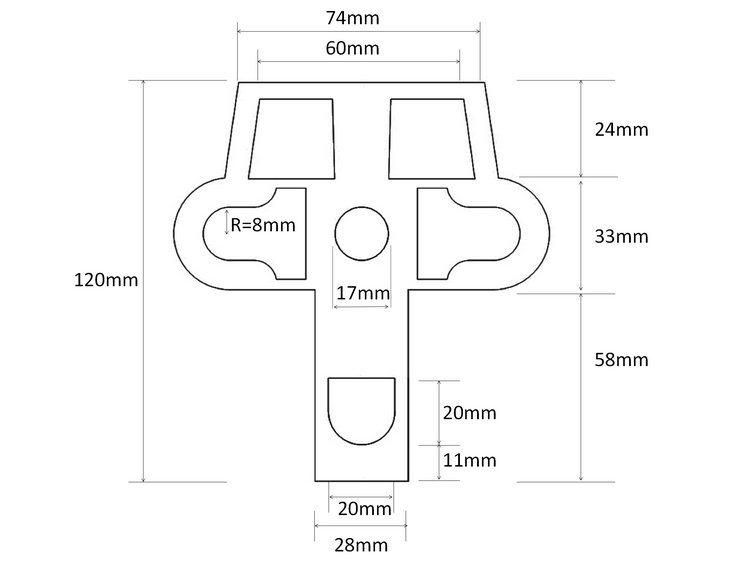

Technical data sheet:

Model	Materials	Working Load	Weight	Packaging unit
UPB	Aluminum alloy	5000N	0.2kg	30pcs

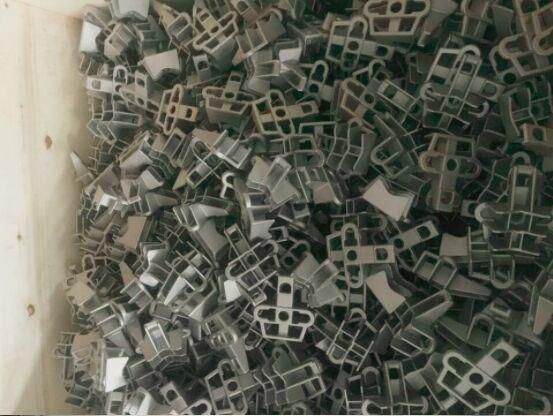

Package&Shipment:



Application:Widely applied in cable connecting fittings,to support wire,conductor,cable in transmission line fittings.

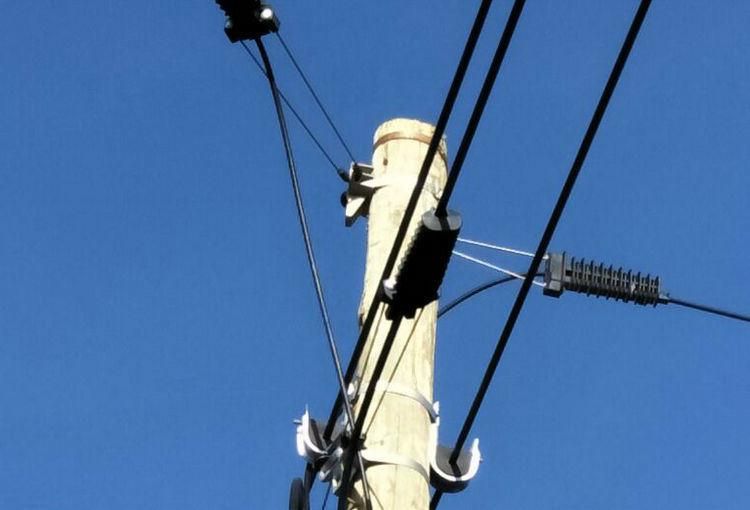

Installation

1.With steel bands

The UPB bracket can be installed on any type of pole - drilled or undrilled - with two 20x0.7 mm stainless steel bands SB207 plus two buckles B20 (check our pole banding products). Usually allow two bands of one meter each per bracket.

2.With bolts

If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16 mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness). Check our bolts.
