• MOQ：1000PCS
• Fire Proof Level：UL94V-2
• Feature：Seal Part Hold Cable Firmly
• Usage：Lock Cable Tight
• Transport Package：Common Packing: Inner Plastic Bag + Export Carto
• Specification：PG, M type
• Trademark：ZC
• Origin：China
• HS Code：39174000
• Production Capacity：500000PCS,Year

Basic Info.

MOQ 1000PCS Fire Proof Level UL94V-2 Feature Seal Part Hold Cable Firmly Usage Lock Cable Tight Transport Package Common Packing: Inner Plastic Bag + Export Carto Specification PG, M type Trademark ZC Origin China HS Code 39174000 Production Capacity 500000PCS/Year

Product Description

Product Description

Thread:PG,Metric,G,and NPT thread.
Materials:UL approved Nylon PA66(Flammability UL 94v-2) for A.C.E parts,(Accept to make flammability UL 94V-0);EPDM rubber for B.D parts,(Also accept to make supper rubber:resist high temperature rubber,resist strong acid/alkali,etc).
Protection degree:IP68
Working temperature:-40ºC to 100ºC

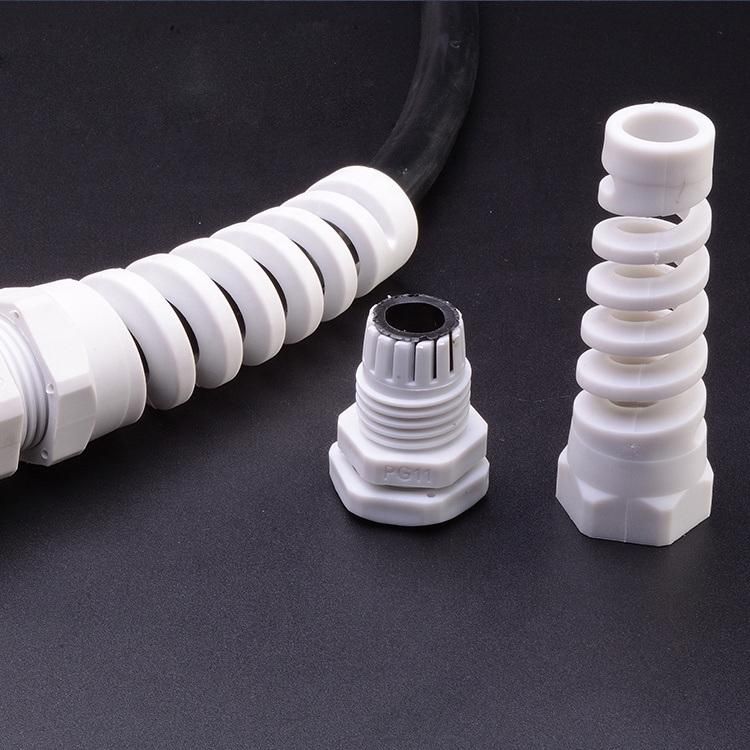

Features:The claws and seals of excellent design,sealing nut have a "click" sound and re-open,can hold cable firmly and have wider cable range.Rwsistant to salt water,weak acid,alcohol,oil,grease and common solvency.
Colours:Black(RAL9005),gray(RAL7035),other color available upon request

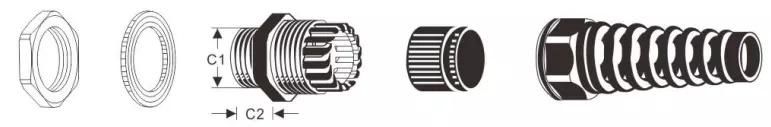

Production Paraneter

Product Model	Applicable to cable	Thread diameter	Thread length	Wrench diameter
PG 7	3-6.5	12.5	8	16
PG 9	4-8	15.2	8	19
PG 11	5-10	18.6	8	22
PG13 .5	6-12	20.4	10	24
PG 16	10-14	22.5	10	27
PG19	12-16	24	10	27
PG21	13-18	28.3	10	33



Specification:
