High Quality of Zinc Plated Fully Threaded Rod
TOPELE ENTERPRISE CO., LTD.- Color：Silver
- IP Rating：IP67
- Surface Treatment：Galvanised
- Application：Referred to as a Headless Fastener
- Material：Steel
- Certification：ISO
Base Info
- Model NO.：M6,M8,M10,M12,M14,M16
- Length：10FT,3.0 M
- Threaded Type：Metric Thread , Unc Thread
- Transport Package：Bundle+Pallet
- Trademark：TOPELE
- Origin：China
- HS Code：7318190000
- Production Capacity：100000 PCS Per Week
Description
Each BundleInch mm (Meter) Yield Tensile QTY Wt.(kg) 1/4'' 0.25 6.35 1/4''-20 ASTM A307 Grade 2 3 40000 60000 50 25 3/8'' 0.375 9.53 3/8''-16 ASTM A307 Grade 2 3 40000 60000 25 30 1/2'' 0.5 12.7 1/2''-13 ASTM A307 Grade 2 3 40000 60000 10 22 M6 0.236 6 1 DIN 975 Class 4.6 3 34000 58000 50 23 M8 0.315 8 1.25 DIN 975 Class 4.6 3 34000 58000 25 20 M10 0.394 10 1.5 DIN 975 Class 4.6 3 34000 58000 20 25 M12 0.472 12 1.75 DIN 975 Class 4.6 3 34000 58000 15 29 M14 0.551 14 2 DIN 975 Class 4.6 3 34000 58000 10 25 M16 0.630 16 2 DIN 975 Class 4.6 3 34000 58000 10 34 M18 0.709 18 2.5 DIN 975 Class 4.6 3 34000 58000 5 23 M20 0.787 20 2.5 DIN 975 Class 4.6 3 34000 58000 5 29 M22 0.866 22 2.5 DIN 975 Class 4.6 3 34000 58000 3 22 M24 0.945 24 3 DIN 975 Class 4.6 3 34000 58000 3 25 M27 1.063 27 3 DIN 975 Class 4.6 3 95000 120000 3 32 M30 1.181 30 3.5 DIN 975 Class 4.6 3 95000 120000 2 27 M33 1.299 33 3.5 DIN 975 Class 4.6 3 95000 120000 1 17 M36 1.417 36 4 DIN 975 Class 4.6 3 95000 120000 1 19

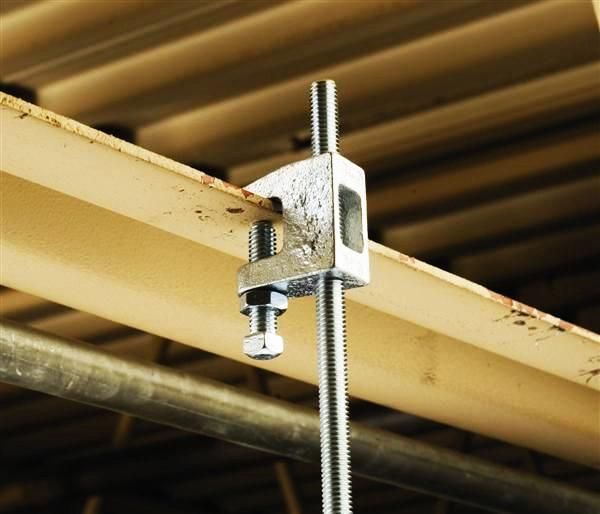

These metal rods feature continuous threading and do not include a head or fashioned tip. Typically used as anchor bolts, clamps, hangers, U-bolts and much more. They may also be known as studs or threaded rods and are available in various lengths, diameters and finishes. Easily cut to suit your custom project needs using a metal saw.
