2715 PVC Insulation Fiberglass Sleeve
Xuchang Zhufeng Insulation Material Co., Ltd.- Certification：ISO
- Material：PVC
- Application：Winding Wire Coating Insulation
- Chemistry：Organic Insulation
- Thermal Rating：a 105
- Transport Package：Carton and Woven Bag
Base Info
- Model NO.：2715
- Trademark：zhufeng
- Origin：Henan
- HS Code：39173900
- Production Capacity：50000m,Week
Description
Test condition Axes 25mm, electrode typetype 2715-1 2715-2 2715-3 Center value ≥ 7.0 ≥ 4.0 ≥ 2.5 Lowest individual value ≥ 5.0 ≥ 2.5 ≥ 1.5

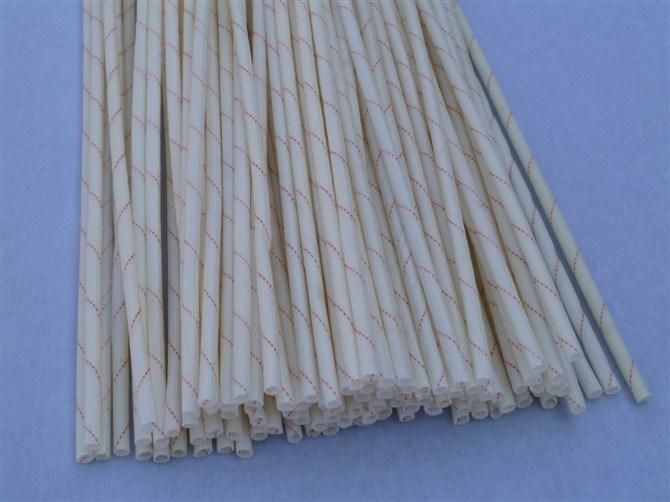

2715 insulation PVC fiberglass sleeving
Heat-resistance: A class 105C
Breakdown Voltage: 2.5KV 4KV
Material: Alkali-Free fiberglass braided sleeving
Coating: Polyvinyl chloride resin(PVC resin)
Property: Excellent electrical, chemical and oil resistance properties.
High heat stability and flexibility.
Used for the wiring insulation and mechanical protection for motors, electrical appliances, electrical instruments, wireless sets and domestic electrical appliances
Size I. D.: 1-30mm
Length: In one meter or in coils. 50m 100m for one coils, also can be accroding to your request
Pacage: CartonTest condition Axes 25mm, electrode typetype 2715-1 2715-2 2715-3 Center value ≥ 7.0 ≥ 4.0 ≥ 2.5 Lowest individual value ≥ 5.0 ≥ 2.5 ≥ 1.5
2715 insulation PVC fiberglass sleevingHeat-resistance: A class 105C
Breakdown Voltage: 2.5KV 4KV
Material: Alkali-Free fiberglass braided sleeving
Coating: Polyvinyl chloride resin(PVC resin)
Property: Excellent electrical, chemical and oil resistance properties.
High heat stability and flexibility.
Used for the wiring insulation and mechanical protection for motors, electrical appliances, electrical instruments, wireless sets and domestic electrical appliances
Size I. D.: 1-30mm
Length: In one meter or in coils. 50m 100m for one coils, also can be accroding to your request
Pacage: CartonTest condition Axes 25mm, electrode type
