M40 Waterproof IP68 Silicon Rubber Cable Glands Nickel Brass

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, IP68
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M8-M63
  • Factory Report：ISO90001
  • Thread Type：Metric
  • Claw：Silicon Rubber
  • Sealing Ring：Silicon Rubber
  • Working Temperature：-60 to 250
  • Transport Package：Standard Export Carton
  • Specification：Customization
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：3000000PCS,Month

Description

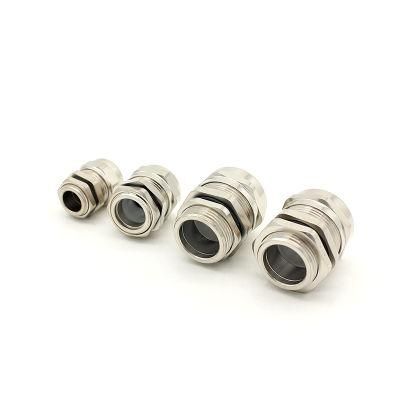

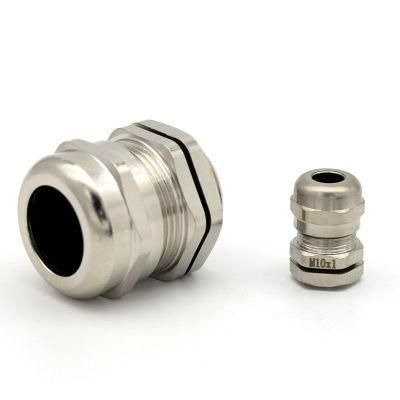

Metal Cable Gland - Silicone Series

Product Code

Thread AG

Applicable cable range(mm)

Thread O.D.(mm)

Mounting Hole Diameter(mm)

Thread length GL(mm)

Joint length H(mm)

Spanner Size (mm)

JX-M8-Sl

M8*1

5.5-2

8

8-8.2

5

16

12

JX-M12A-Sl

M12*1

6.5-3

12

12-12.2

7

19

14

JX-M12B-Sl

M12*1.25

8-3

12

12-12.2

7

16

16

JX-M12C-Sl

M12*1.5

8-3

12

12-12.2

7

16

16

JX-M14-Sl

M14*1.5

8-3

14

14-14.2

7

16

16

JX-M16-Sl

M16*1.5

9-4

16

16-16.2

8

20

20/18

JX-M18-Sl

M18*1.5

10-5

18

18-18.2

8

20

20

JX-M20-SlM20*1.512-82020-20.282124JX-M25-SlM25*1.518-152525-25.292330JX-M32-SlM32*1.522-183232-32.2102635JX-M40-SlM40*1.530-254040-40.2113045JX-M50-SlM50*1.538-355050-50.2123255JX-M63-SlM63*1.544-386363-63.2133568About Us
