• Model NO.：WB
• Flame Retardant：High
• Profile：Cablofil
• Transport Package：Seaworthy Packing
• Specification：CE
• Trademark：Powtech
• Origin：China
• HS Code：73269090
• Production Capacity：Five 40hq

Basic Info.

Model NO. WB Flame Retardant High Profile Cablofil Transport Package Seaworthy Packing Specification CE Trademark Powtech Origin China HS Code 73269090 Production Capacity Five 40hq

Product Description

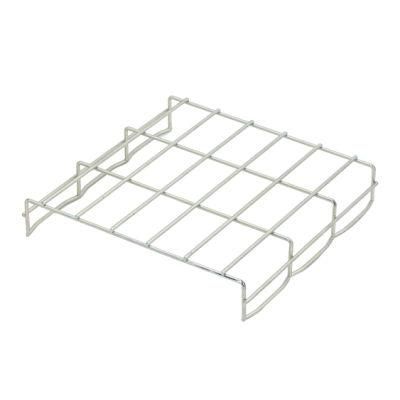

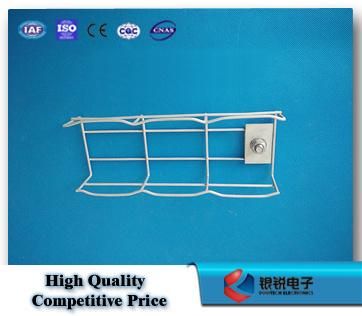

Cabofil Basket Type Cable Tray



Description:
Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L

Specifications:
1. Focus on producing electric galvanizing cablofil cable tray
2. ISO9001: 2008/UL/CUL/CE, passed Rohs test
3. Strong and smart

Surface Finish:
Electro zinc plated Electric Galvanizing Cablofil Cable Tray for indoor use to BS EN 12329-2000, 12microns thick.
Powder coated Electric Galvanizing Cablofil Cable Tray - for indoor use to JG/T3045-1998, between 60 and 100 microns thick
Hot Dipped Galvanized Electric Galvanizing Cablofil Cable Tray for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Electrolytic Polishing Electric Galvanizing Cablofil Cable Tray for stainless steel use

Dimensions:(Customized available )
Electric Galvanizing Cablofil Cable Tray dimensions are all internal size.
Electric Galvanizing Cablofil Cable Trays are constructed with a 50mm x 100mm, 50mm x 50mm, and 40mm x 40mm mesh grid.
Depth: 25mm, 50mm, 75mm, 100mm, 125mm, 150mm...
Widths: 50~1000mm.
Length: Maxiun 3000mm
Wire Diameter: 3.5~ 6.0mm

Installation Notice:
Bends, Risers, T Junctions, Crosses and Reducers can be made from Electric Galvanizing Cablofil Cable Tray straight sections flexibly in project site.
Electric Galvanizing Cablofil Cable Tray should be supported at a normally span 1.5m by trapeze, wall, floor or channel mounting methods (Maxium span is 2.5m).
Electric Galvanizing Cablofil Cable Tray can be safely applied in places where the temperature ranges between -40° C and +150° C without any change to their characteristics.

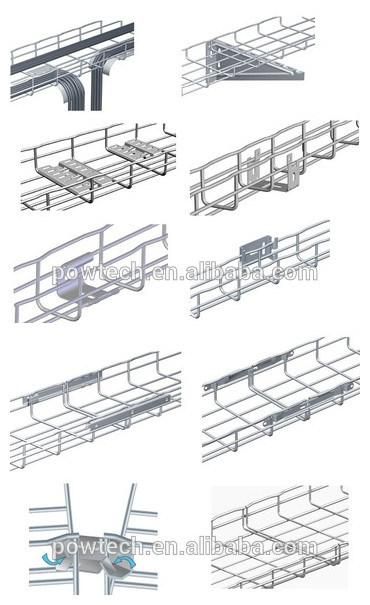

Installation Guide:

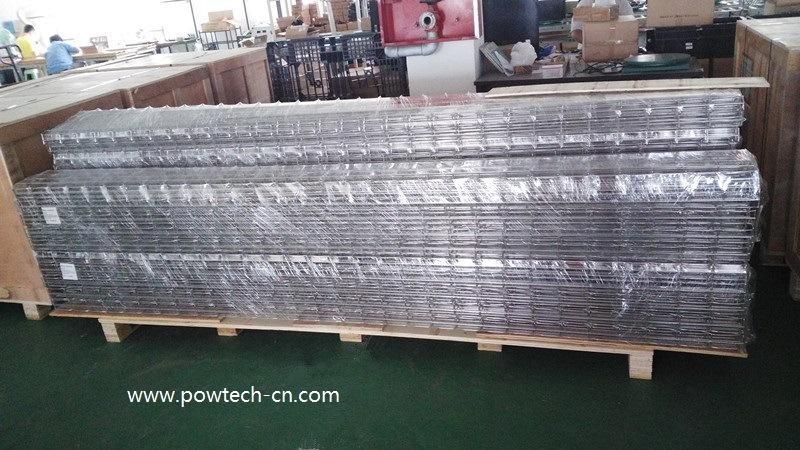

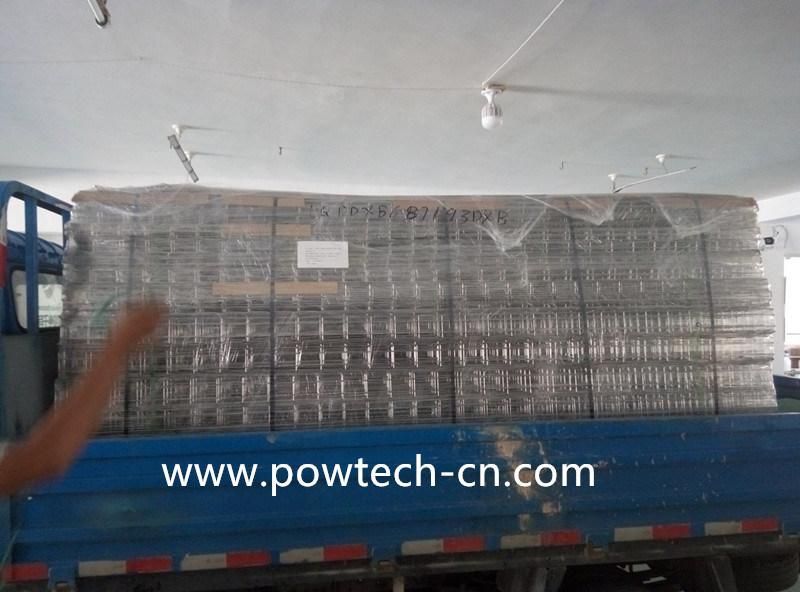

Package&Shipment:
