• Model NO.：PG
• Ambient Temp.：(-)40 Deg C to 100 Deg C.
• Applicable Standard：IEC 62444
• Standard Color：Grey,Black
• Special Color：Can Be Customized
• Body Material：PA66 UL94
• Ingress Protection：IP68
• Transport Package：Bag,Carton
• Specification：PG7-PG63
• Trademark：UTL
• Origin：China
• HS Code：3926909090
• Production Capacity：500000

Basic Info.

Model NO. PG Ambient Temp. (-)40 Deg C to 100 Deg C. Applicable Standard IEC 62444 Standard Color Grey/Black Special Color Can Be Customized Body Material PA66 UL94 Ingress Protection IP68 Transport Package Bag/Carton Specification PG7-PG63 Trademark UTL Origin China HS Code 3926909090 Production Capacity 500000

Product Description

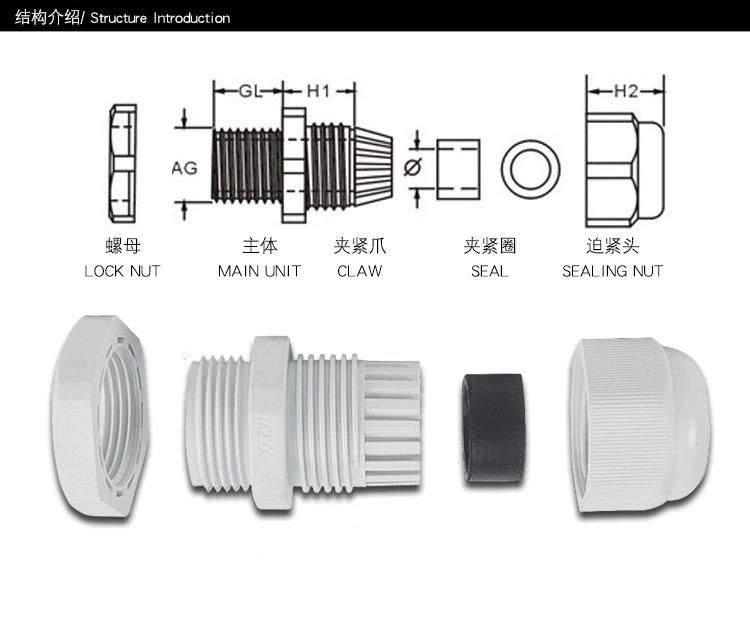

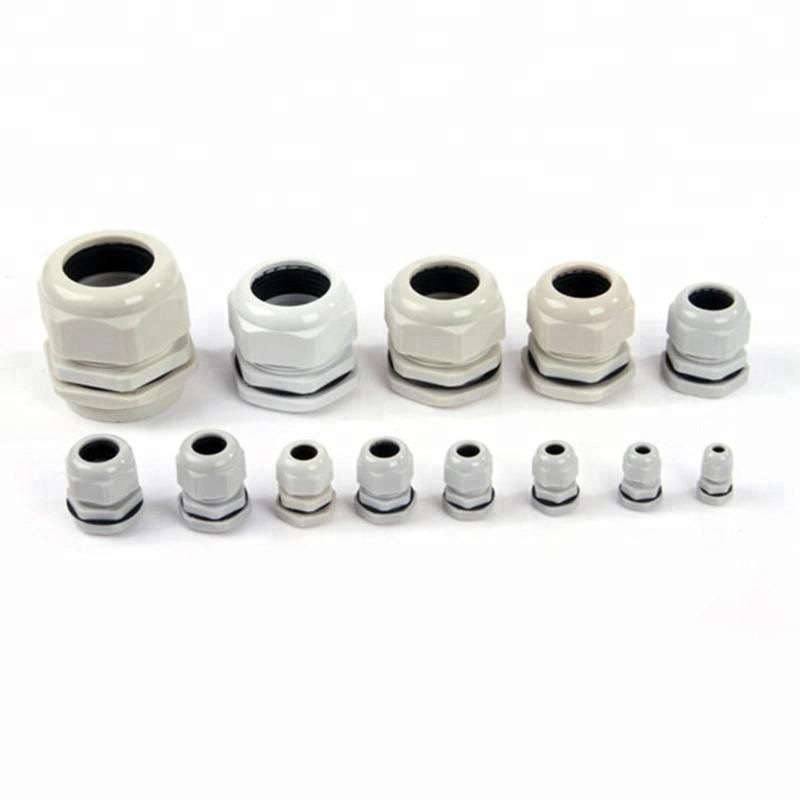

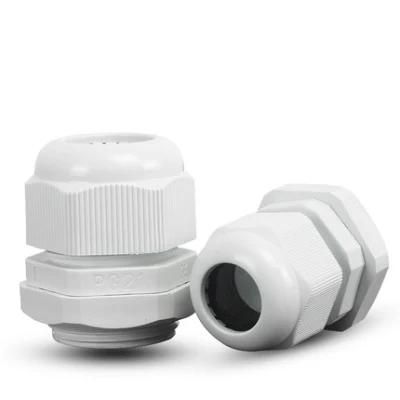

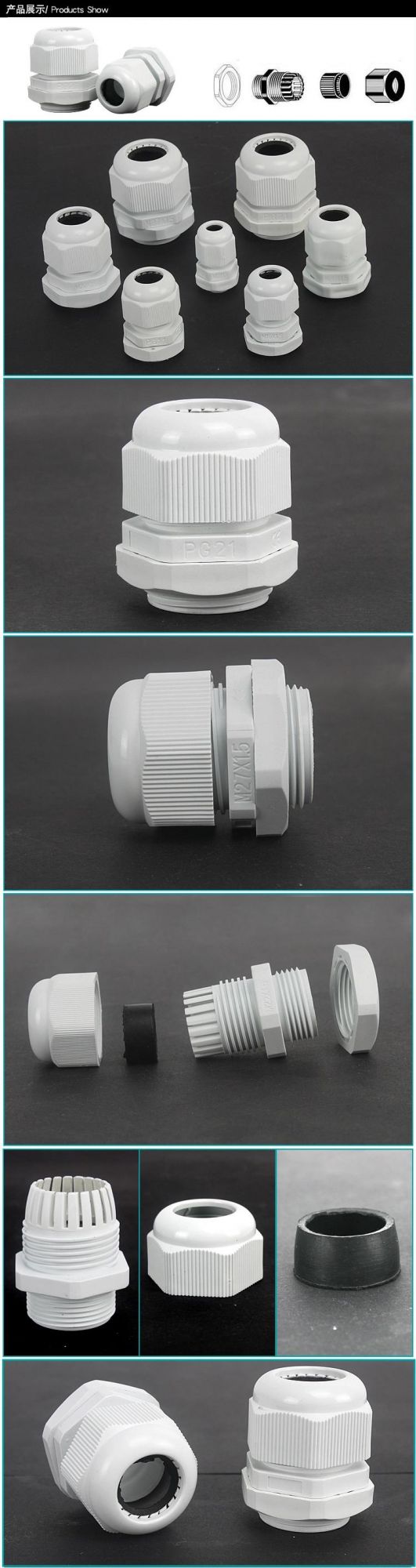

PG and M type  Nylon Cable Gland

Model	Model	Cable Range
PG7	M12*1.5	3-6.5mm
PG9	M16*1.5	4-8mm
PG11	M18*1.5	5-10mm
PG13.5	M20*1.5	6-12mm
PG16	M22*1.5	10-14mm
PG19	M24*1.5	12-15mm
	M25*1.5	12-18mm
PG21	M27*1.5	13-18mm
PG25	M30*1.5	16-21mm
PG24	M32*1.5	22-25mm
PG29	M36*1.5	18-25mm
PG36	M40*1.5	22-32mm
PG42	M50*1.5	32-38mm
PG48	M63*1.5	37-44mm
PG63		42-50mm

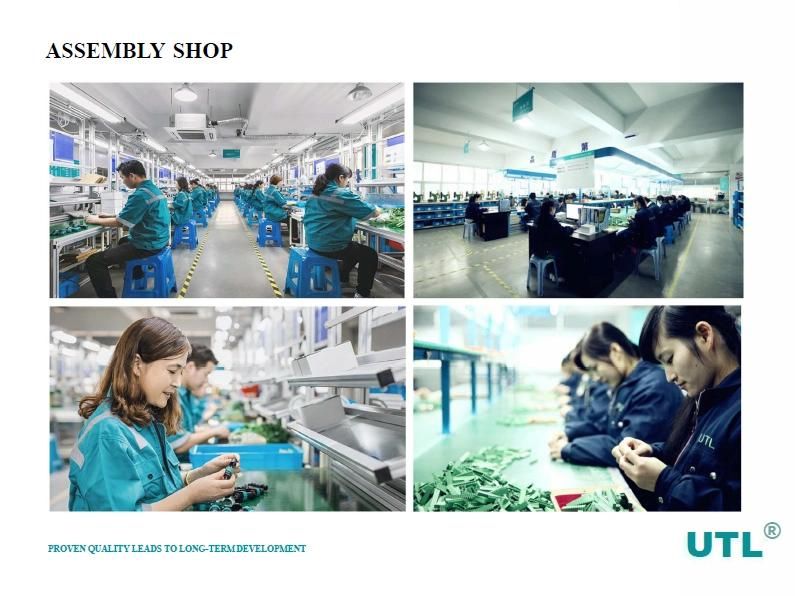

Company Information

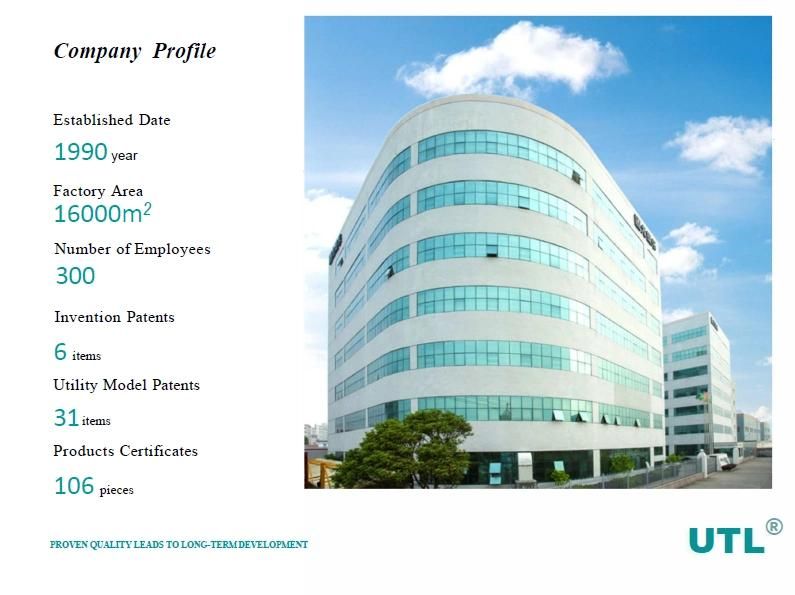

     UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
   The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.

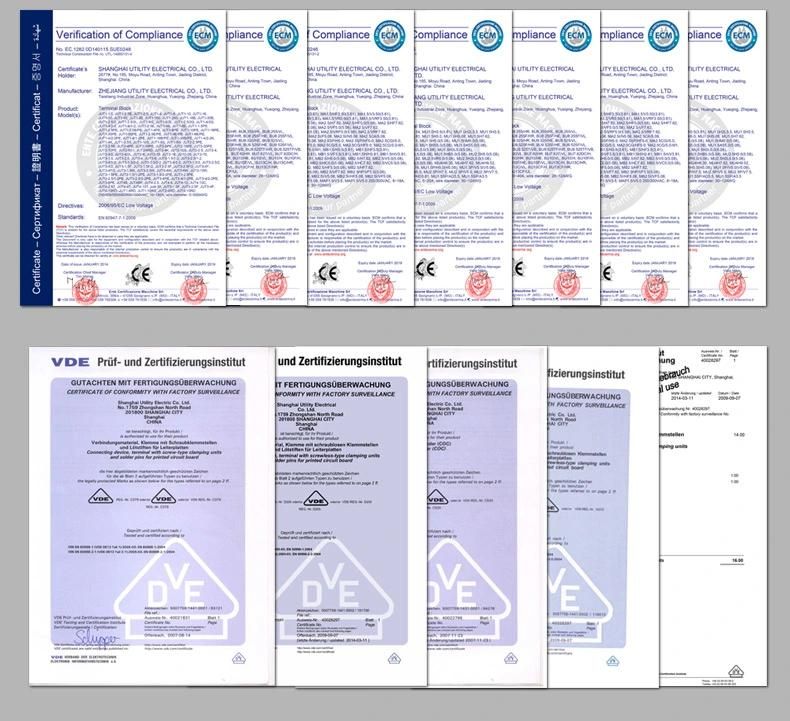

Certifications

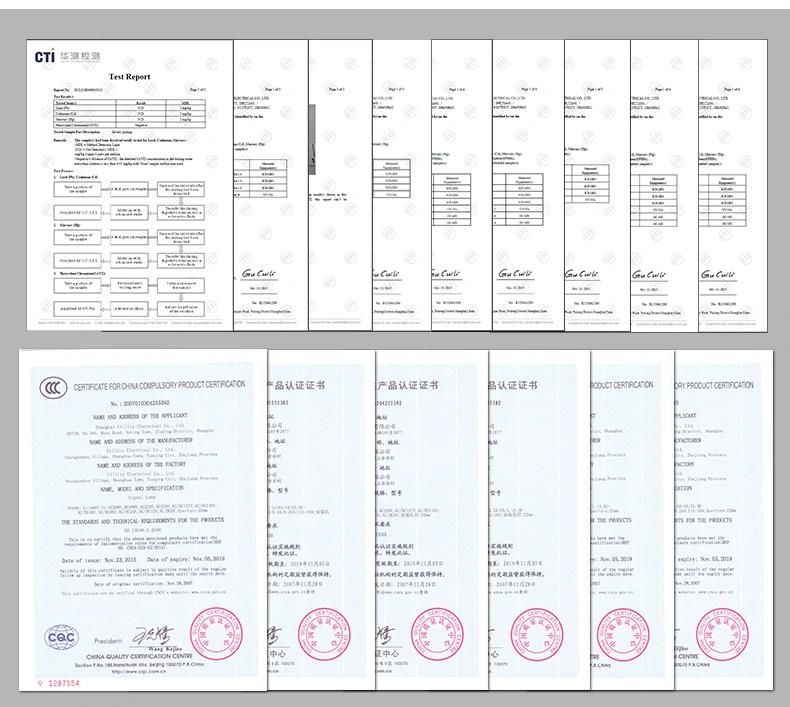

    UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.


OUR CLIENTS


Contact Us
1. Q:  Could I put my own logo on it?
A: Sure,customers' logo can be printed or put on the items.
2. Q:  How about the guarantee of the items?
A: According to the actual situation.
3. Q: How about the quality?
A: Over 1 year. Each product will be different warranty,please contact us.
4. Q: How about the certificates?
A: TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC
5. Q: Could I buy 1pc sample first and small order?
A: Of course,support sample order and small order, especially for new customers under certain condition.
6. Q: How much for 1pc sample?
A: Sample can be provided free.
7. Q: How long to make a sample?
A: Samples will be prepared within three days.
8. Q: What payment is acceptable?
A: PayPal or western is accaptable for samples.
