Galvanized Steel Strand Clamp Performed Dead End Grips
Qingdao Powtech Electronics Co., Ltd.- Name：Preformed Dead End Guy
- Material：Galvanized Steel
- Transport Package：Wooden Cartons
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
Base Info
- Model NO.：NL
- HS Code：85044020
- Production Capacity：10000PCS,Month
Description
Basic Info.
Model NO. NL HS Code 85044020 Production Capacity 10000PCS/MonthProduct Description
Galvanized Steel Strand Clamp Performed Dead End GripsProduct Description:
Description:

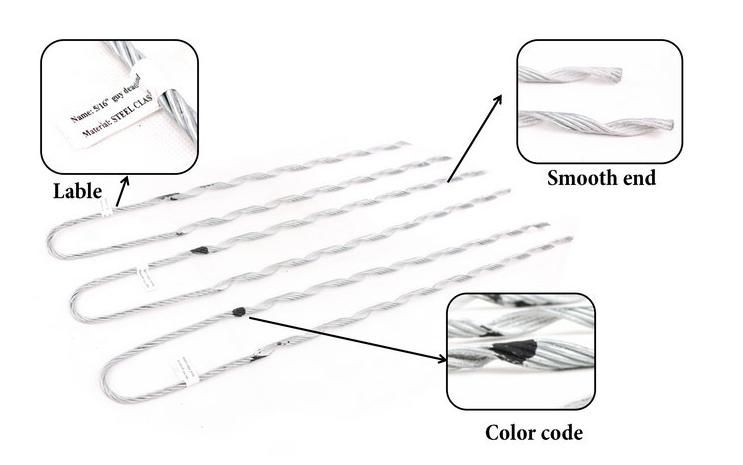

Preformed dead ends provide today's most effective method for securing conductor strand. This unique, one-piece dead-end is neat in apperance and free from bolts or high-stress holding devices. The preformed dead ends are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guying.
Technical Data:
| Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |
