Earth Wire Preformed Dead End Cable Clamp
Qingdao Powtech Electronics Co., Ltd.- Certification：CCC, RoHS, ISO, CE
- Color：Grey
- Fire Rating：High
- Size：Customized
- Material：Aluminium Clad Steel
- Type：Self-Locking Cable Tie
Base Info
- Model NO.：NL
- Name：Earth Wire Preformed Dead End Cable Clamp
- Transport Package：50PCS,Carton
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：73269000
- Production Capacity：1000PCS,Day
Description
Basic Info.
Model NO. NL Name Earth Wire Preformed Dead End Cable Clamp Transport Package 50PCS/Carton Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/DayProduct Description
Earth Wire Preformed Dead End Cable Clamp
Description
Product Name: Preformed guy grips
Model: NL

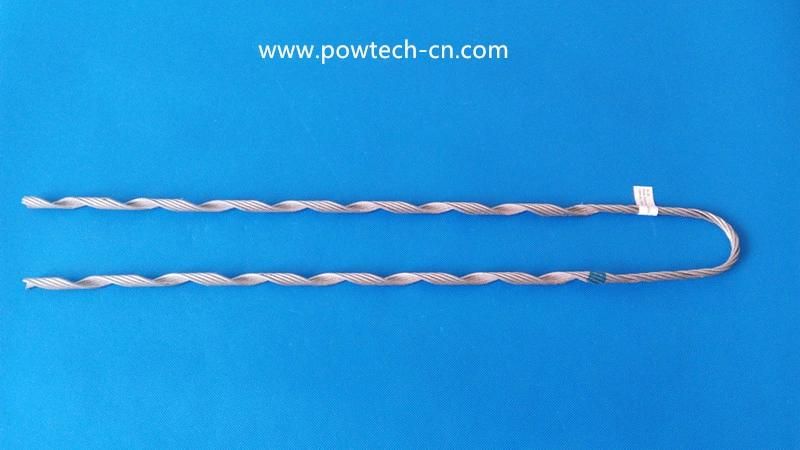

The Preformed guy end grips are used for fixing terminals tower stay wire and where the large size stay wires are needed, such as electric transmission line, antenna, correspondence and lines etc, which can replace the common U-T clamps and wedge type clamps of line tower. The structure of preformed guy grip is simple. Two legs of preformed wire form an empty pipe, and its rear is a preformed stranding link. After coiled around the stay wire, the two legs of preformed wire can generate great grip strength, and stranding link is fixed on the earth anchor or tower. The unique theory and structure provide the clamp with particular function and vivid characters.
Technical data sheet:
| Model | Guy Wire (mm) | Length (mm) | Guy Wire (mm2) | Weight (kg) | Color code |
| NL-25/G | 6.6 | 635 | 25 | 0.2 | Yellow |
| NL-35/G | 7.65~7.95 | 711 | 35 | 0.3 | Black |
| NL-50/G | 8.95~9.30 | 901 | 50 | 0.5 | Orange |
| NL-70/G | 10.82~11.10 | 1016 | 70 | 0.8 | Green |
| NL-95/G | 12.5 | 1333 | 95 | 1.7 | Orange |
| NL-100/G | 13.0 | 1333 | 100 | 1.7 | Yellow |
| NL-120/G | 14.0 | 1460 | 120 | 2.2 | Yellow |
