Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, IP68
  • Surface Treatment：Electroplating
  • Color：Metalic
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M
  • Transport Package：Polybag+Label Export Carton Box
  • Specification：Metric
  • Trademark：Jixiang
  • Origin：Zhejiang; China
  • HS Code：8547909000
  • Production Capacity：50000PCS,Week

Description

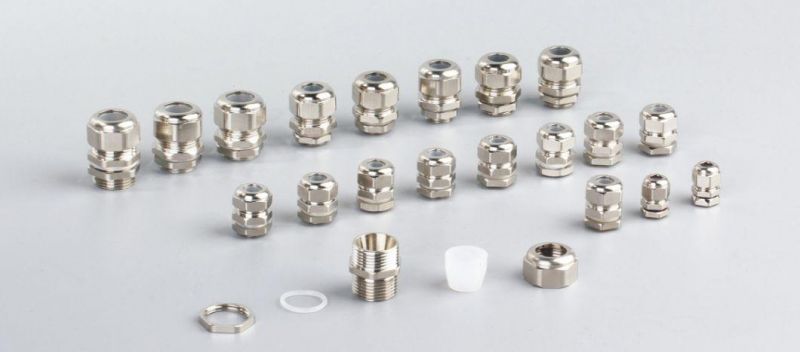

Product Name:Silicon Rubber cable glandMain material:Nickel-plated brassStandard size:M8-M20; PG7-PG13.5Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is available

Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68

AG itemCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)cable gland M8x12-48512M10x1.252-410514M12x1.52-412714M12x1.54-612714M14x1.54-614716M14x1.52-414716M16x1.56-816820M18x1.56-818820M18x1.58-1018820M20x1.58-1020822M20x1.510-1220822cable gland PG72-412.5714PG74-612.5714PG94-615.2818PG96-815.2818PG116-818.6820/21PG118-1018.6820/21PG13.58-1020.4822PG13.510-1220.4822

More size information, kindly contact us directly.. We provide customization service !

Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68                                                                                    Company ShowSilicon Rubber Metal Cable Gland Waterproof Brass Material IP68Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68Silicon Rubber Metal Cable Gland Waterproof Brass Material IP68

We welcome your inquiry

You can click here to start online customization for the design you want.
