• Model NO.：PSR8-20
• Specification：CE, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：853670000
• Production Capacity：20000 Sets,Month

Basic Info.

Model NO. PSR8-20 Specification CE, SGS, ISO Trademark OPTELEC Origin China HS Code 853670000 Production Capacity 20000 Sets/Month

Product Description

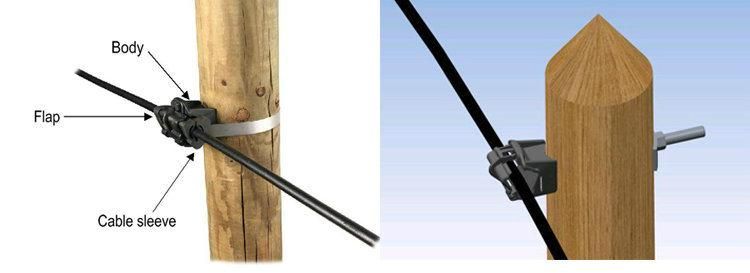

^{Multiple orientation suspension clamp}


Fixing
-With bolt Ø 14 mm, width between flats of the bolt head shall be 21 mm +/-1 mm,Maximum torque value of the bolt : 20 Nm

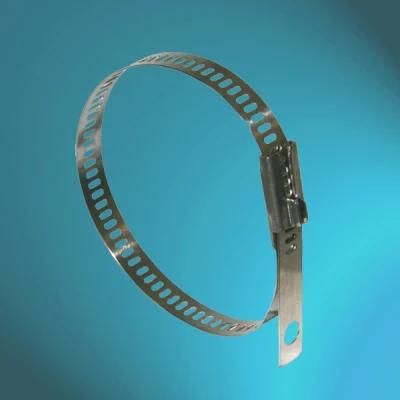

-With steel strap 20 mm.

Complementary function
During the tensioning of the cable, it may be positioned in the clamp body, without fitting the sleeve in order to ease the sliding.

Capacity	Ø 8 - 20 mm
Vertically strength	350 daN
Horizontally strength	120 daN
Deflection angle	25° maxi

SI. No.	Details	Particulars
1	Type of Clamp	Suspension Clamp
2	Type of design	Mounting clamp with Insert arrangement. Multiple orientation allowability
3	Cable Diameter Range	Ø8 - Ø20mm
4	Mounting	Using Stainless Steel Strap or Bolts

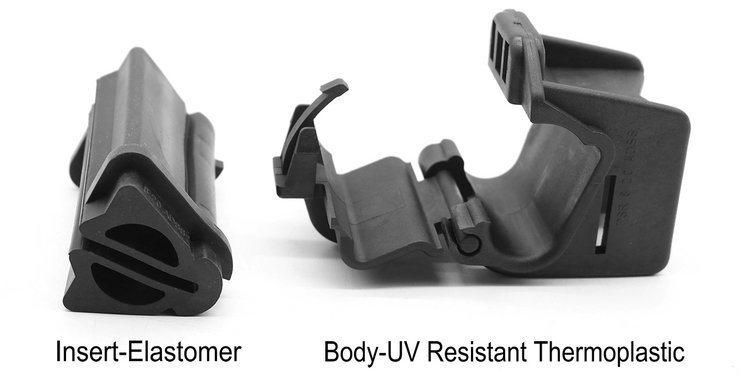

5	Type & Grade of the Material	Clamp Body -- UV Resistant Thermoplastic
		Insert --Elastomer
6	Minimum Breaking Load (in KN)	3.5 kN
7	Weight	160g
