• Model NO.：M8-18
• Seal Ring：Silicone
• Sealing Insert：Silicone
• Benefit：Samples
• Function：Protect Wires Safely
• Transport Package：as Standard Carton
• Specification：M8-M18
• Trademark：Jixiang
• Origin：Zhejiang Province, China
• HS Code：33039649
• Production Capacity：1000 PCS , Week

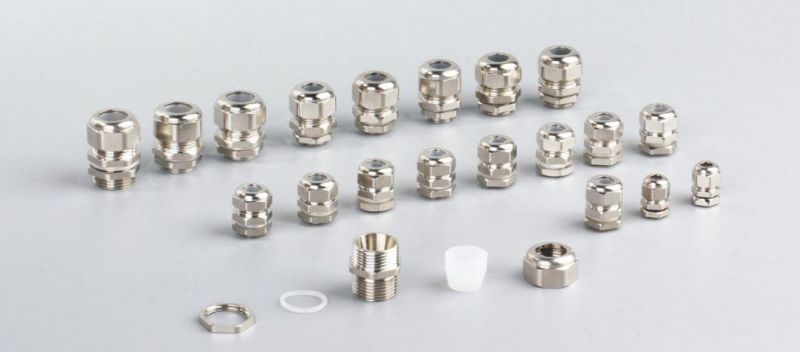

Product Name:Silicon Rubber cable glandMain material:Nickel-plated brassStandard size:M8-M20; PG7-PG13.5Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is available

AG itemCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)cable gland M8x12-48512M10x1.252-410514M12x1.52-412714M12x1.54-612714M14x1.54-614716M14x1.52-414716M16x1.56-816820M18x1.56-818820M18x1.58-1018820M20x1.58-1020822M20x1.510-1220822cable gland PG72-412.5714PG74-612.5714PG94-615.2818PG96-815.2818PG116-818.6820/21PG118-1018.6820/21PG13.58-1020.4822PG13.510-1220.4822

More size information, kindly contact us directly.. We provide customization service !

Cable gland packing Details: Poly bag with label + Standard export carton with label.
Delivery Details: Normally 7 working days after received the payment.
                                                                                    Company Show

YUEQING JIXIANG CONNECTOR CO.,LTD

We're a professional manufacturer of various kinds of cable glands and cable connectors. JIXIANG combines research,
production and sales. The main products are metal cable glands and nylon cable glands.
We firmly believe that market is the key to the development of enterprises.
Thus, we always take the high quality as our essential principle.Our products are approved by CE, IP68, ROHS, EX ATEX, TUV and ISO9000.
It was widely used in electronic, machinery, instrument, electrical appliances and other industrial fields.

We welcome your inquiry

You can click here to start online customization for the design you want.
