Single Wall 2: 1 Heat Shrink Tubes with UL
Ease Cable Termination&Accessories Co., Ltd.- Certification：UL, RoHS, ISO, CE
- Color：Black, White, Yellow, Blue, Green
- IP Rating：IP65
- Usage：Electric Wire
- Material：Polyolefin
- Type：Heat Shrinkable
Base Info
- Model NO.：HS-SW
- Application：Insulators, Electrical Winding Insulation
- Thermal Rating：125t
- Maximum Voltage：600V
- Transport Package：100m,Roll or Customized
- Specification：UL, RoHS
- Trademark：ES
- Origin：China
- HS Code：39173200
- Production Capacity：5000000, 000 M,Month
Description
SPECIFICATIONSMATERIAL:POLYOLEFIN (CROSSLINKED)FEATURE:FLAME RETARDANTVOLTAGE:600 VSTANDARD:UL 224 125°C & RoHSWALL TYPE:SINGLESHRINK TEMP:90°CWORK TEMP:-55°C~125°CRATIO:2:1UL FILE:E197895
EASE CODEAS SUPPLIED (mm)AFTER RECOVERY (mm)Inside DiameterWall ThicknessInside DiameterWall ThicknessmminchmmmminchmmHS-SW-1.2/0.6-LT≥1.23/640.20 ± 0.08≤0.63/1280.40 ± 0.08HS-SW-1.6/0.8-LT≥1.61/160.20 ± 0.08≤0.81/320.40 ± 0.08HS-SW-2.4/1.2≥2.43/320.20 ± 0.09≤1.03/640.42 ± 0.08HS-SW-3.2/1.6≥3.21/80.25 ± 0.09≤1.51/160.48 ± 0.10HS-SW-4.8/2.4≥4.83/160.25 ± 0.09≤2.03/320.54 ± 0.10HS-SW-6.4/3.2≥6.41/40.28 ± 0.10≤3.01/80.50 ± 0.10HS-SW-9.5/4.7≥9.53/80.30 ± 0.12≤4.53/160.72 ± 0.12HS-SW-12.7/6.3≥12.71/20.30 ± 0.12≤6.01/40.72 ± 0.12HS-SW-16/8≥16.05/80.36 ± 0.12≤8.05/160.70 ± 0.12HS-SW-19.1/9.5≥19.13/40.38 ± 0.15≤10.03/80.80 ± 0.15HS-SW-25.4/12.7≥25.410.42 ± 0.15≤12.51/20.90 ± 0.15HS-SW-32/16≥32.01-1/40.45 ± 0.15≤15.05/80.97 ± 0.15HS-SW-38.1/19≥38.11- 1/20.50 ± 0.15≤21.03/41.10 ± 0.15HS-SW-50.8/25.4≥50.820.50 ± 0.15≤27.011.10 ± 0.15HS-SW-76.2/38.1≥76.230.70 ± 0.30≤38.11-1/21.25 ± 0.20HS-SW-101.6/50.8≥101.640.70 ± 0.30≤50.821.25 ± 0.20HS-SW-127/63.5≥127.050.70 ± 0.30≤63.52-1/21.40HS-SW-152.4/76.2≥152.460.70 ± 0.30≤76.231.40HS-SW-177.8/88.9≥177.870.70 ± 0.30≤88.93-1/21.40HS-SW-203.2/101.6≥203.280.70 ± 0.30≤101.641.40HS-SW-228.6/114.3≥228.690.70 ± 0.30≤114.34-1/21.40
TECHNICAL DATA:PROPERTYDATACONDITIONTensile Strength≥10.4MPa Tensile Strength After Aging≥7.3MPa158°C ± 1.0°C, 168 hrsElongation≥200% Elongation After Aging≥100%134°C 60 daysLongitudinal Change<±5% Radial Shrinking Ratio≥50% FlammabilityVW-1 Dielectric StrengthNo BreakdownAt 1 Min, AC2500VVolume Resistivity≥10 * 1012 Ω.cm CorrosionNo Corrosion Copper Stability≥100% Concentricity70%

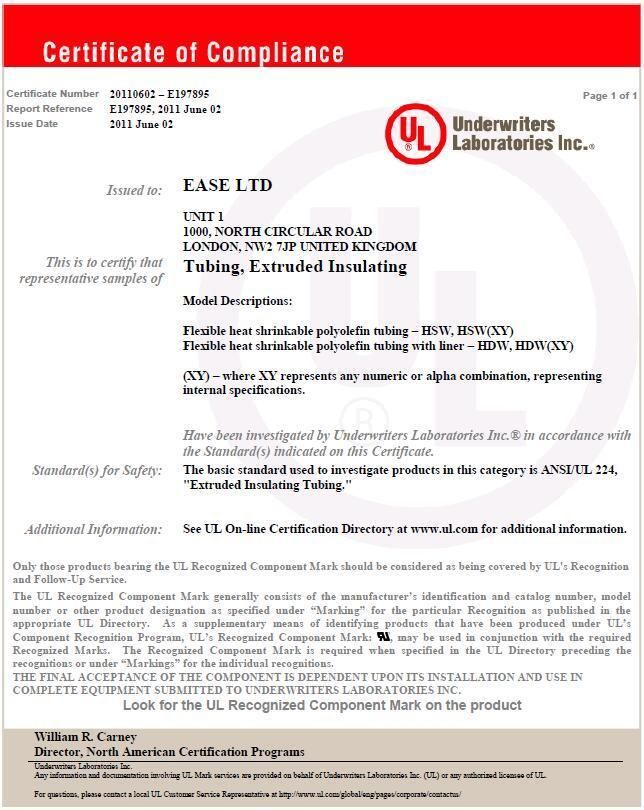

UL CERTIFICATE:

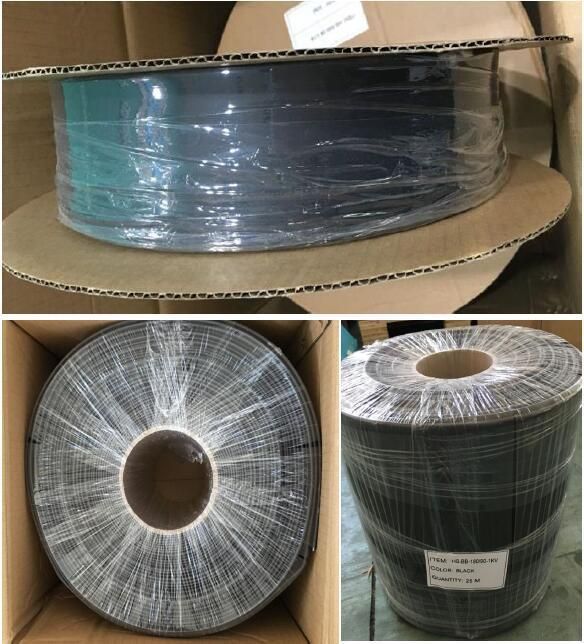

PACKAGE:

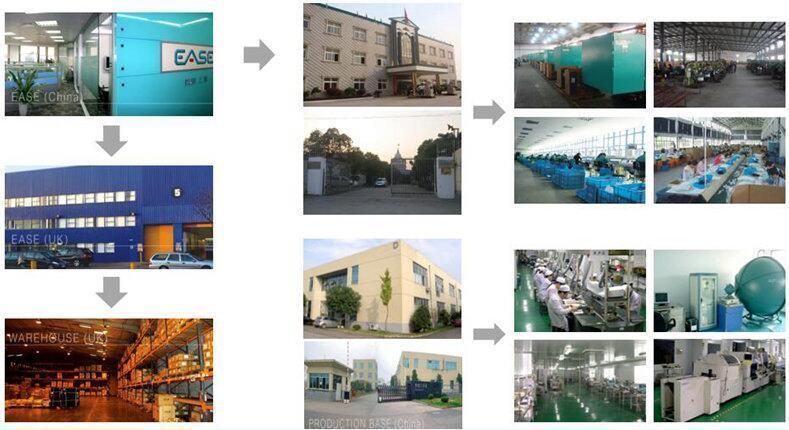

FACILITIES:
EXHIBITION:
Why Choose EASE?
1. Professional operation experience
2. Samples available for quality test.
3. Low MOQ, Low Price.
4. Safe packing and prompt delivery.
5. Sizes can be customized totally as request.
