• Model NO.：OPXW
• Origin：China
• HS Code：8536
• Production Capacity：30000 Set, Per Month

Basic Info.

Model NO. OPXW Origin China HS Code 8536 Production Capacity 30000 Set/ Per Month

Product Description

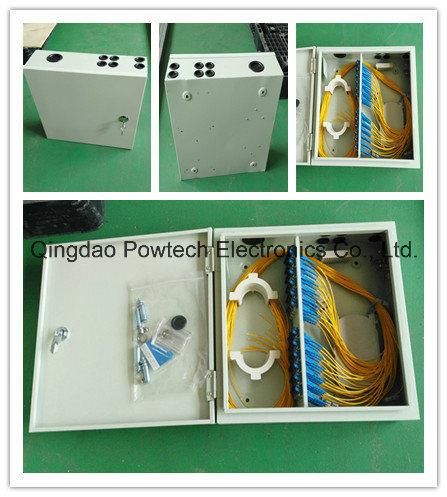

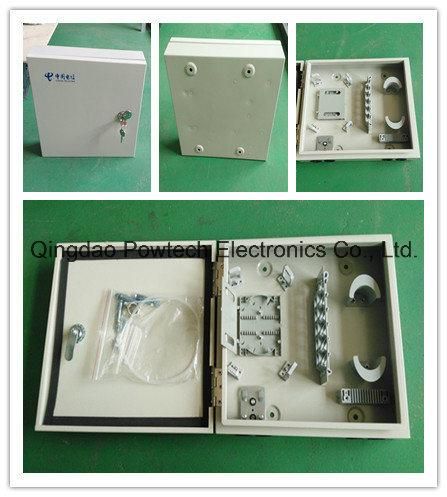

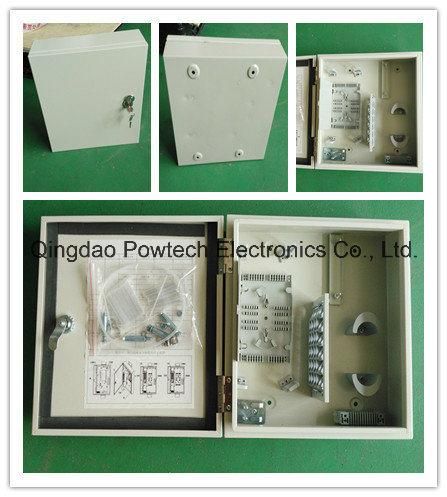

Wall Mount Optical Distribution Frame

Description:
1: Wall Mount Optical Distribution Frame
2: Suitable for 19'' standard structure
3: Easy to operate and convenient maintenance

FEATURES:

1: Optical distribution box is used at optical access network terminal, it acts as the opitcal distribution and fusion.

2: Box body is made of metal material, it looks nice in shape and its operation is convenient, anti-ageing and corrosion can be assured by the adoption of SMC compound materials

3: The sealing performance meets the IP65-level requirements of GB4208 standard, thus, it is suitable for outdoor distribution

4: It is the combination of three funcions: Optical fusion, store distribution

5: Adaptor is installed with a certain angel. Maintenance is easy, transmission loss is low

6: It suits to common optical fiber cable, also to band optical cables fusion

7: Designed by full modulation, unit box has functions as optical fiber fusion, tray storing and distribution, each fusion module can be single taken out to meet the demands for operation frame

24  cores	2  U	49x30.5x8.9cm
48  cores	3  U	49x30.5x13.35cm
72  cores	4  U	49x30.5x17.8cm
96  cores	5  U	49x30.5x22.25cm
