• Model NO.：OPX
• Condition：New
• Access：Front Access
• Install：Rack-Mount
• High：1u
• Transport Package：Carton
• Specification：12 fiber
• Trademark：Powtech
• Origin：China
• HS Code：85389000
• Production Capacity：500PCS,Month

Basic Info.

Model NO. OPX Condition New Access Front Access Install Rack-Mount High 1u Transport Package Carton Specification 12 fiber Trademark Powtech Origin China HS Code 85389000 Production Capacity 500PCS/Month

Product Description

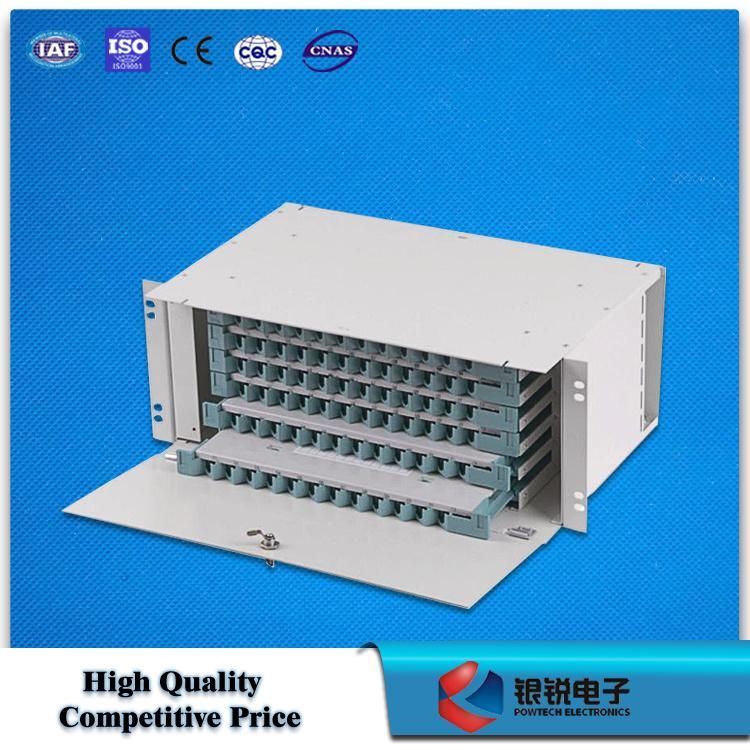

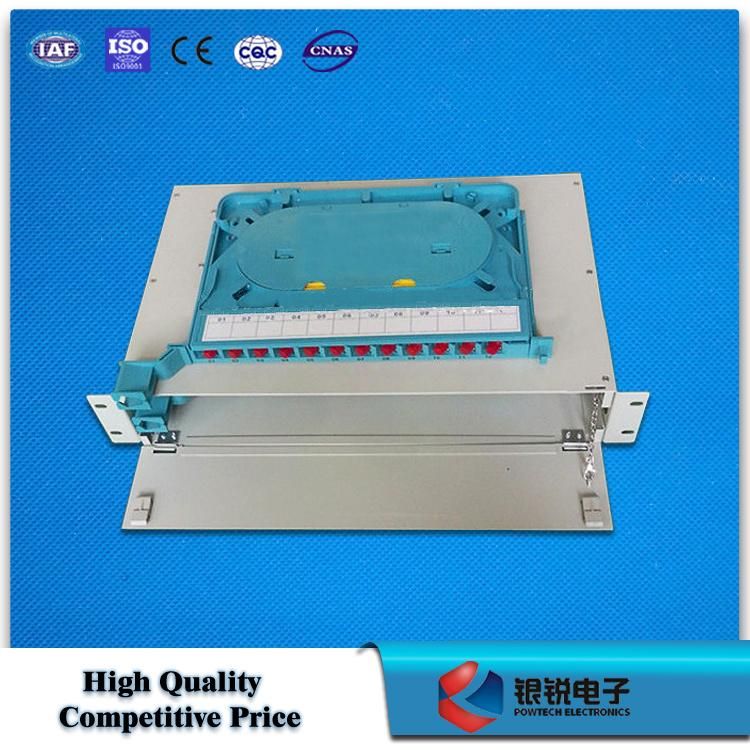

Fiber Optic Terminal Box



Description:
Its main function is to terminate the fiber optic cable and provide connection access to the cable's individual fibers. Fiber distrbution units are termination units, which are designed to provide a secure, organized chamber for housing connectors and splice units.  Rack mount panels is usually 19" or 23" universal width. The height of patch panel can be 1u, 2u, 3u, 4u, 6u, etc. The opening of the optical fiber patch panels can be slidable or fixed or revolving.
optical distribution frame
19'' standard rack
Suitable for ribbon and single fiber
Low IL , high RL
Fiber terminal box Features:
v Standard size, light weight and reasonable structure
v Splice tray inside changeable
v 19'' standard rack
v Suitable for ribbon and single fiber
v Various panel plate to fit different adapter interface
v Front mark on the plate is easy for identification and operation

Technical parameter:
(1) Insertion loss: <0.3dB
(2) Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
(3) Insulating resistance between the box and the earthing device: 1000MΩ /500VDC
(4)Voltage resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over.
Technical data sheet:

Fiber capacity	ODF type	Adaptor type	Pigtails
12 ports	19" fixed or sliding type	FC	with pigtails
24 ports	19" fixed or sliding type	SC	with pigtails
48 ports	19" fixed or sliding type	LC	with pigtails
72ports	19" fixed or sliding type	E2000	with pigtails
96ports	19" fixed or sliding type	E2000	with pigtails

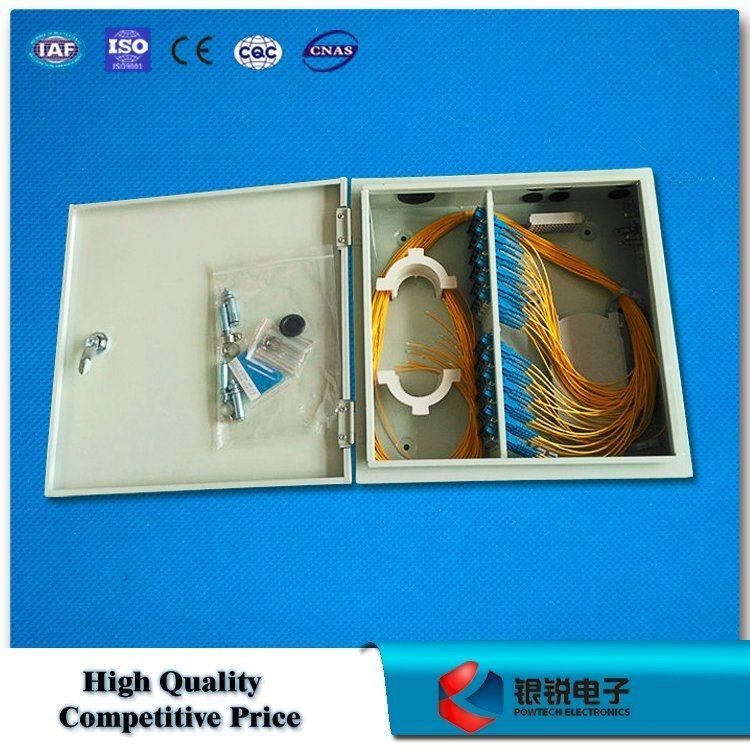

Detailed Images:

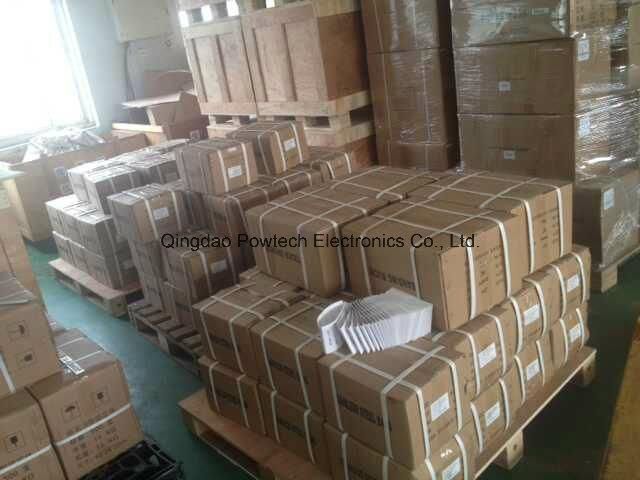

Warehouse:
