• Model NO.：S3T
• Termal Endurance：125 ºC
• Semi-Rigid Outer Layer：Cross Linked Polyolefin
• RoHS Compliant：EVA Adhesive
• Thermal Melt Adhesive：Electrical Wiring
• Raychem：Atum
• Sealing Protection：Cable Insulation
• Gas Pipeline Protection：Direct Buried
• Cable Sealing：Wire Protection
• Transport Package：Neutral Packaging
• Trademark：UPM
• Origin：Dalian China
• HS Code：39173900

S3(t) Flame Retardant Adhesive Lined Thin Wall Heat Shrink Tube Features Co-extruded dual wall tube Operating temperature: -40~135 ºC Cross-linked flexible polyolefin outer layer Shrink temperature: 125 ºCThermal melt adhesive liner  High shrink ratio: 3:1& 4:1High flame retardant VW-1(outer layer)  RoHS compliant ApprovalsUL approval File No.: E341796Technical DataPropertyTest method          Values          PhysicalTensile strengthWhen test at 500mm/min.   ≥12 MPa Breakdown elongationWhen test at 500mm/min.    ≥300%   Aging                       (158ºC /168hrs)Tensile strengthWhen test at 500mm/min.   ≥10MPaBreakdown elongationWhen test at 500mm/min.    ≥200% Density    --1.15~1.25 Thermal endurance    --125 ºC Hardness (Shore D)    --  ≤ 40 HD  Water absorption (23ºC/24hrs)    --    ≤0.5% Low temperature flexibility(-30ºC/1hr)    --No cracking Peel strength to steel ASTM D267180N/25mm Peel strength to XLPEASTM D2671110N/25mm Heat shock (250ºC/4hrs)    --No cracking,No drop, No flow(outer layer only)ElectricalVolume resistivityASTM D2671 ≥1014 Ω.cm Dielectric strength(2500V AC/60s)ASTM D2671≥ 12KV/mm Dielectric  breakdown voltage         --≥ AC 2500V Dielectric voltage Withstand   1min.AC2500VNo breakdown  Aging(158 ºC/168hrs)  Dielectric  breakdown voltage         --AC 2500V min. and more than 50% of
the value obtained with unaged sampleDielectric voltage withstand   1min.AC2500VNo breakdownChemical  Flammability(outer layer only)VW-1Pass Copper corrosion(158ºC/168hrs) 500mm/minElongation≥100%Fluid resistance 23ºC/24hrsDiesel fuel(bs2869 class A1)ISO 37Tensile strength ≥7 MPaHydraulic fluid(H-515)Breakdown elongation≥300%Lubricating oil(O-149)Peel strength to steel 60N/25mmDimensions3:1ReferenceAs supplied(mm)After recovered(mm)Standard lengthUPM S3(t)ID min.ID max.WT nom.mShrink Ratio: 3:1    3.2/1.03.2 1.0 1.0 200 4.8/1.64.8 1.6 1.0 100 6.4/2.16.4 2.1 1.0 100 7.9/2.67.9 2.6 1.4 50 9.5/3.29.5 3.2 1.4 50 12.7/4.212.7 4.2 1.7 1.22 15.0/5.015.0 5.0 1.8 1.22 19.1/6.019.1 6.0 2.2 1.22 25.4/8.025.4 8.0 2.5 1.22 30.0/10.030.0 10.0 2.5 1.22 39.0/13.039.0 13.0 2.5 1.22 51.0/17.051.0 17.0 2.6 1.22 Shrink Ratio: 4:14.0/1.04.01.0 1.0 1.22 6.0/1.56.01.5 1.0 1.22 8.0/2.08.02.0 1.0 1.22 12.0/3.012.03.0 1.4 1.22 16.0/4.016.04.01.7 1.22 20.0/5.020.05.0 1.8 1.22 24.0/6.024.06.02.2 1.22 32.0/8.032.08.02.5 1.22 52.0/13.052.0 13.0 2.5 1.22  ID=Internal DiameterWT=total wall thicknessTypical application      Ideal for applications including connector-to-cable sealing, wire harness bundles and splices        where insulation, corrosion resistance and mechanical stress relief are required.Ordering      Standard color : Black     Special colors(eg.White,Red,Yellow,Green,Clear) are available on request      Standard packaging on spools and/or 1.22m/pc     Please specify specification, color, quantity when orderingCross referenceRaychem/ Tyco :ATUM

Frequently Asked Q & A

Q1. You are a manufacturer or trading company?

A: We are a leading manufacturer of shrinkable materials,with best price,high quality and short lead time.
Q2. Can you accept sample orders?

A:Yes, we can accept sample orders and we can also provide free samples for your test if necessary.

Q3. What is your MOQ?

A:Normally, for standard thin wall heat shrink, MOQ is 300m. For standard medium/heavy wall tube MOQ is 500m per size.

Q4. What are your payment terms?

A: As usual, the trade term is FOB Dalian. For order amount less than 10,000 USD, it should be 100% T/T in advance. For order amount over 10,000 USD, 30% deposit and 70% balance against copy of BL is acceptable.

Q5. How can I get my order?

A: Per your requirements, we will arrange the cargo delivered by express (e.g. TNT, DHL, FedEx ) ,by land,by air or by sea. After that, we will give you the tracking number or other relative files for your reference.

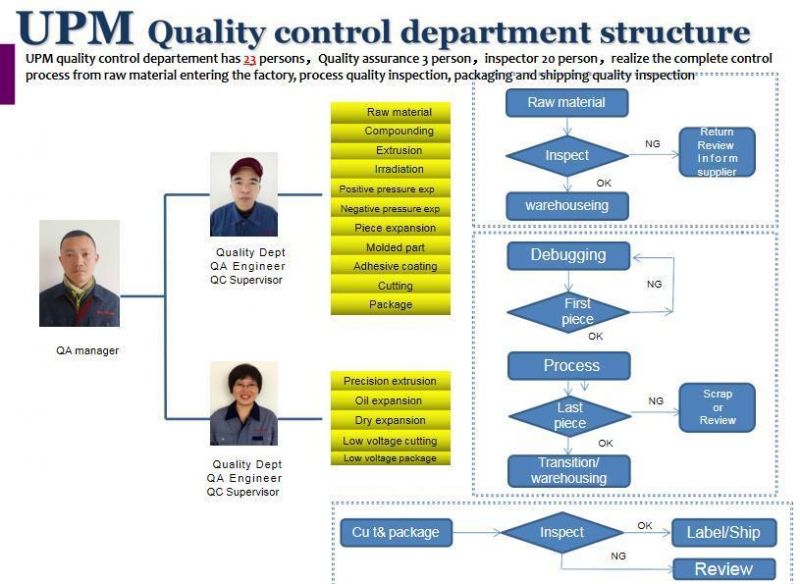

Q6. How about your quality?

A: We are a trust worthy supplier for GE,Siemens for more than 10 years. Most of the products got the CE,UL,DNV,CCS and Rohs approval. Let's start with a small trial order or free samples before the formal order, then you will get a clear image about the product quality and the relevant cost for transportation.

Q7. How is the delivery time?
A: Usually within 3 weeks.

Q8. Could you offer certificate of origin (e.g. Form-A,Form-E,Form-F,Form-R)?
A: It is totally not a problem. To help you enjoy the tariff concession,we can prepare the relevant certificate of origin.
