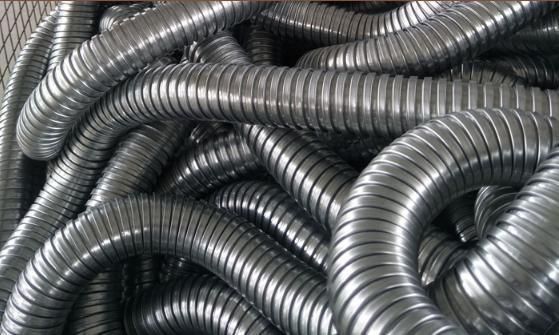

UL Standard PVC Coated Liquid Tight Flexible Conduit 3/8"-4"
TOPELE ENTERPRISE CO., LTD.- Color：Grey
- IP Rating：IP68
- Surface Treatment：Galvanised
- Application：Electrical Wiring
- Material：Carbon Steel
- Certification：UL
Base Info
- Model NO.：LIQUID TIGHT CONDUIT
- Length：30mm or as Customers′ Requirements
- Inside Diameter：17.5-114.20
- Transport Package：Packed in Bundles with Woven Bag
- Specification：3,8"-4"
- Trademark：TOPELE
- Origin：Hangzhou, China
- HS Code：72169100
Description
TOPELE#SIZE Inside Diameter Outside Diameter Min.Bend Meters Min(mm) Max(mm) Min(mm) Max(mm) GFC01 3/8" 12.3 12.80 17.50 18.00 60 30 GFC02 1/2" 15.8 16.30 20.80 21.30 80 30 GFC03 3/4" 20.70 21.20 26.20 26.70 100 30 GFC04 1" 26.00 26.60 32.70 33.40 150 30 GFC05 1-1/4" 34.70 35.40 41.40 42.20 180 20 GFC06 1-1/2" 40.00 40.60 47.40 48.30 200 20 GFC07 2" 51.30 51.90 59.40 60.30 250 15 GFC08 2-1/2" 63.00 63.60 72.10 72.002 300 10 GFC09 3" 78.00 78.70 87.90 88.90 450 10 GFC10 4" 101.60 102.60 113.20 114.20 600 5
Packing & Shipping

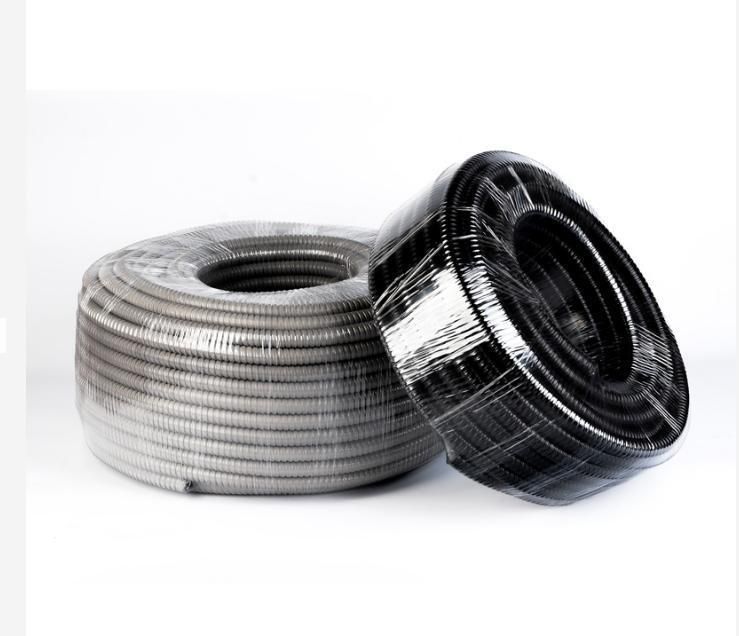

Flexible conduit are packed in bundles with woven bag, we also can put customers' sticker on pipes,woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table .
