• Model NO.：AQXY
• Span：100m
• Suitable Cable：ADSS
• Transport Package：Wooden Case
• Specification：100m span
• Trademark：Powtech
• Origin：China
• HS Code：85447000
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AQXY Span 100m Suitable Cable ADSS Transport Package Wooden Case Specification 100m span Trademark Powtech Origin China HS Code 85447000 Production Capacity 10000PCS/Month

Product Description

Cheap Price Line Fittings/O Type Suspension Clamp

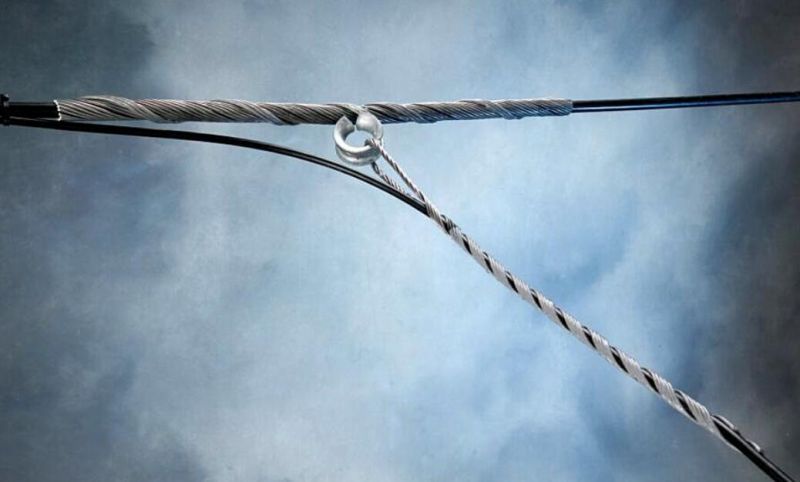

The wire suspension clamp are designed to connect ADSS cable to pole/tower in the straight line. They feature in handiness, ease, with certain load capacity to resist moving.

Application:
1.The span should be less than 100m.
2.The poles/towers with corner angle less than 15°
3.It is mainly designed for ADSS cable which are constructed on the same poles with 10kv electric power for the city zones.

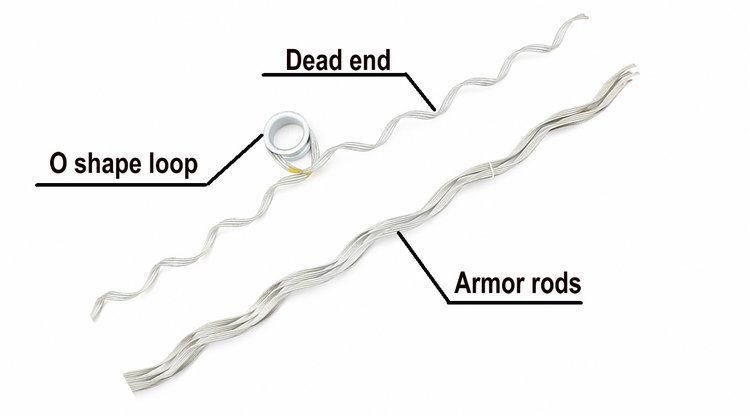

Configuration:
1.O-shaped hanging loop
2.Reinforcing armor rod
3.Dead-end rods:

Technical Data Sheet:
Maximum tensile force:>10kN
Recommended Span length:100m

Product Model	Cable Diameter(mm)	Dead-end Armor Rod(mm )	Outer Armor Rod(mm)
AQXY-100-**	9.4-15	1000	800
AQXY-100-**	15.1-18.5	1300	800
