IP68 Brass Pg7 Cable Gland with CE

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Electroplating
  • Color：Metallic Color
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M , PG , NPT , G
  • Cable Gland：Waterproof
  • Main Material：Nickel-Plated Brass
  • Claw：Nylon (PA66)
  • Seal & O Ring：Rubber
  • Thread Length：Standard & Customization
  • Other Size：Customization
  • Transport Package：Standard Export Carton
  • Trademark：JXLJQ
  • Origin：China Mainland
  • HS Code：8547901000
  • Production Capacity：50000PCS,Month

Description

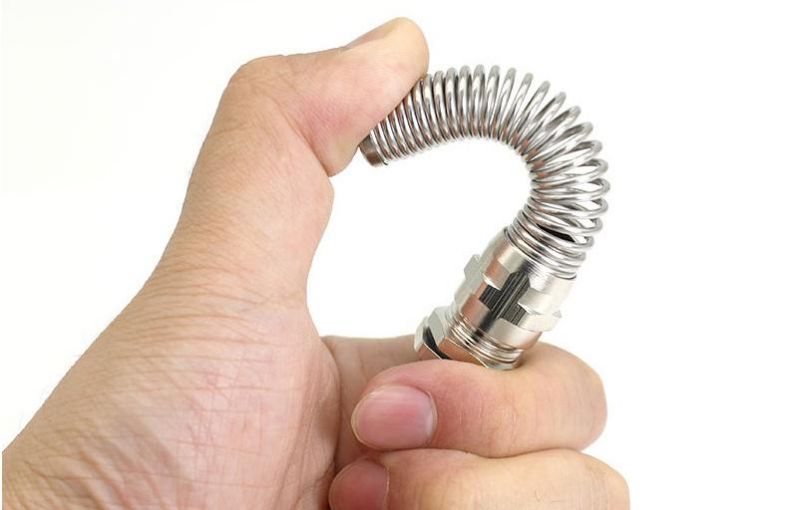

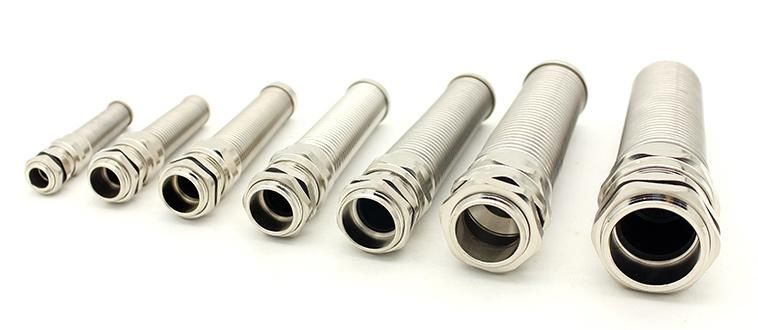

Product Name:Flexible cable glandMain material:Nickel-plated brassStandard size:M12-M25; PG7-PG21Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is availableIP68 Brass Pg7 Cable Gland with CEIP68 Brass Pg7 Cable Gland with CESizesCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)M12x1.53-6.512714M16x1.54-816816M20x1.56-1220822cM22x1.510-1422824M25x1.5A13-1825930M25x1.5B9-1625930.........................PG73-6.512.5714PG94-815.2817PG115-1018.6820PG13.56-1220.4822PG16A10-1422.5924PG16B6-1222.5924PG21A13-1828.3930PG21B9-1628.3930

More size information, kindly contact us directly.. We provide customization service !
