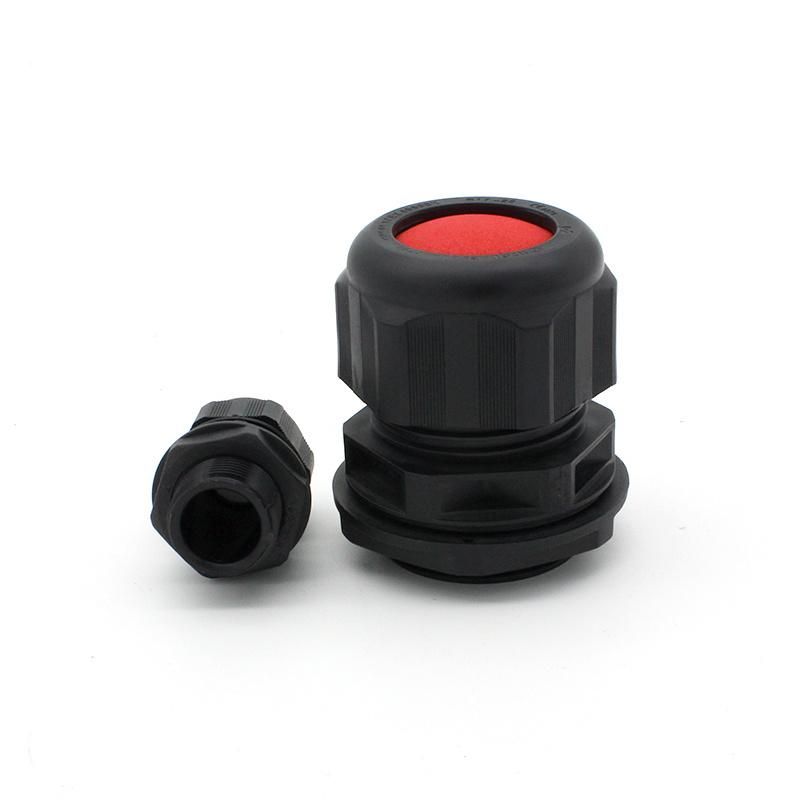

Nylon Iecex Atex Explosion -Proof Plastic Cable Gland

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE
  • Surface Treatment：Baking Paint
  • Color：Black
  • IP Rating：IP68
  • Material：Nylon
  • Type：Straight Head

Base Info

  • Model NO.：M12
  • Fuction：Protect Wires Safely
  • Benefit：Free Samples
  • Temperature：-40 to 100 Degree
  • Claw：PA
  • Sealing Ring：PA
  • Sealing Rubber：Plastic
  • Customization：Different Colors
  • Transport Package：100 PCS Per Bag
  • Specification：m type
  • Trademark：JIXIANG
  • Origin：Zhengjiang Province, Cn
  • HS Code：33039649
  • Production Capacity：30000 PCS , Week

Description

Material: Nylon Cable GlandClaw: PASealing and Sealing Ring: NBRApprovals: IECEX,  ATEXProtection Rate: IP66ColorBlack(RAL9005),other colors can be designed at requests.Temperature Resistance: -40 Degree to 100 Degree, short time to 120 DegreeFunction:Extremely easy installation, simply insert cable through the assembled gland and tighten gland locknut till cable is secured.

CodeEntry ThreadDiameter of cable
A01M16*1.54-9MM
A02M20*1.55.5-13MM
A03M25*1.58-17MM
A04M32*1.512-21MM
A05M40*1.517-28MM
A06M50*1.522-35MM
A07M63*1.527-48MM
