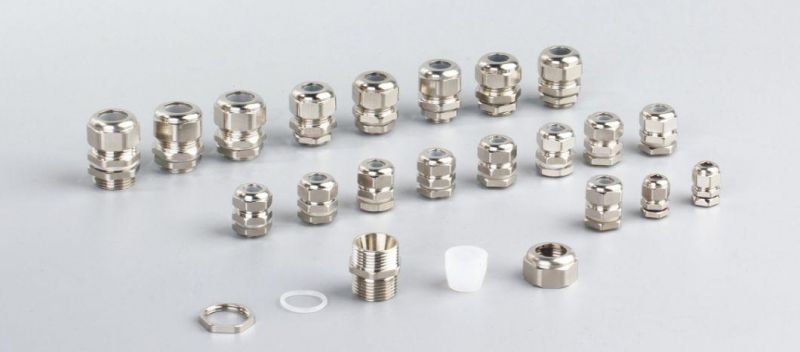

M12 Silicon Rubber Insert Cable Gland Covers Waterproof IP68 Cable Connector

Yueqing Jixiang Connector Co., Ltd.
  • Certification：CCC, RoHS, ISO, CE, IP68
  • Surface Treatment：Electroplating
  • Color：Metalic
  • IP Rating：IP68
  • Material：Brass
  • Type：Straight Head

Base Info

  • Model NO.：M8-M100, PG7-PG63
  • Advantages：Free Sample
  • Certificate：RoHS, CE, ISO9001
  • Name of Brand：Jixiang
  • Protection Level：IP68
  • Transport Package：Polybag+Label Export Carton Box
  • Specification：Metric
  • Trademark：Jixiang
  • Origin：Zhejiang; China
  • HS Code：8547901000
  • Production Capacity：50000PCS,Week

Description

Product Name:Silicon Rubber cable glandMain material:Nickel-plated brassStandard size:M8-M20; PG7-PG13.5Certification:RoHS, CE, TUV, IP68, ISO9001Notes:Customization service is available

M12 Silicon Rubber Insert Cable Gland Covers Waterproof IP68 Cable Connector

AG itemCable Range(mm)Thread O.D.(mm)Thread Length(mm)Spanner Size(mm)cable gland M8x12-48512M10x1.252-410514M12x1.52-412714M12x1.54-612714M14x1.54-614716M14x1.52-414716M16x1.56-816820M18x1.56-818820M18x1.58-1018820M20x1.58-1020822M20x1.510-1220822cable gland PG72-412.5714PG74-612.5714PG94-615.2818PG96-815.2818PG116-818.6820/21PG118-1018.6820/21PG13.58-1020.4822PG13.510-1220.4822

More size information, kindly contact us directly.. We provide customization service !
