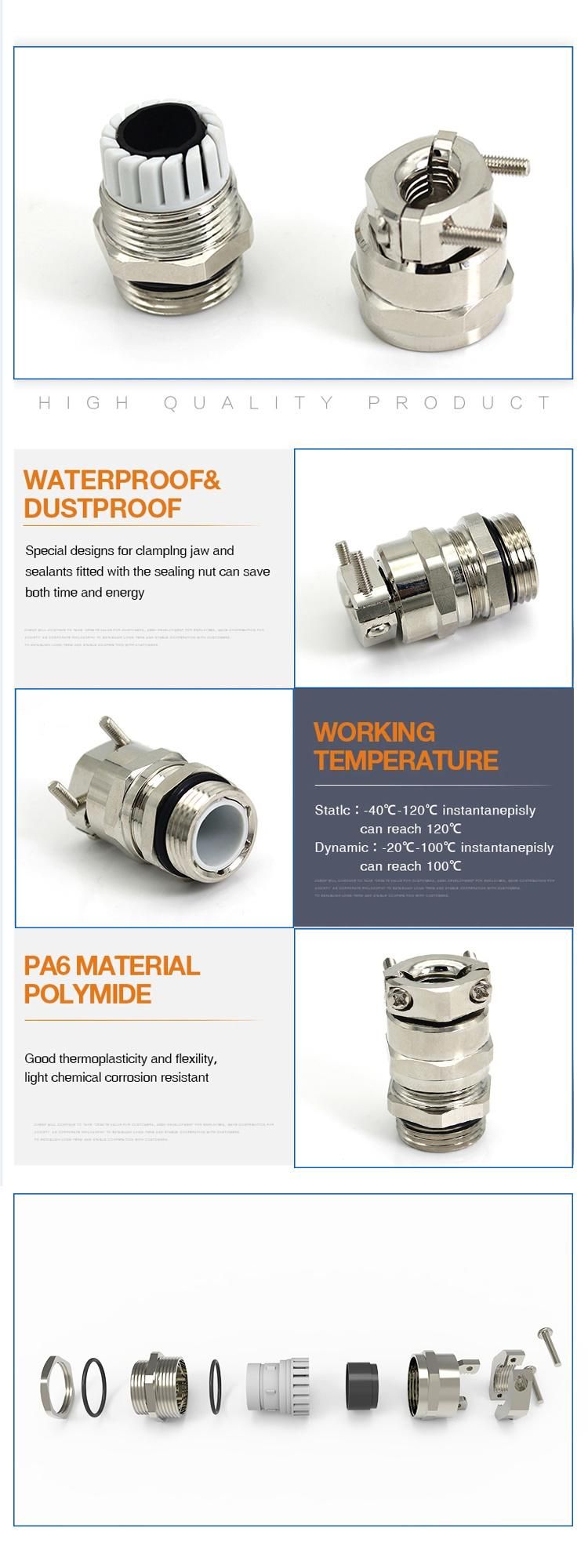

Double-Locked Metal Cable Gland Brass IP67 M20*1.5
Yueqing Jixiang Connector Co., Ltd.- Certification：CCC, ISO, CE, TUV
- Surface Treatment：Electroplating
- Color：Metallic Color
- IP Rating：IP68
- Material：Brass
- Type：Straight Head
Base Info
- Model NO.：M & PG series
- Samples：Available
- Transport Package：100,50 PCS Per Bag
- Trademark：JIXIANG
- Origin：Zhengjiang Province, Cn
- HS Code：33039649
- Production Capacity：30000 PCS , Week
Description
Metric threadCode Thread O.D
(mm) Cable range
(mm) Thread length
GL(mm) Spanner Size
(mm) Panel Mounting Hole
(mm) JX-M12A-DL 12 3-6.5 5 14 12-12.3 JX-M12B-DL 12 4-8 6 17 12-12.3 JX-M14-DL 14 4-8 6 17 14-14.3 JX-M16A-DL 16 4-8 6 17 16-16.3 JX-M16B-DL 16 5-10 6 20 16-16.3 JX-M18-DL 18 5-10 6 20 18-18.3 JX-M20A-DL 20 6-12 6.5 22 20-20.3 JX-M20B-DL 20 10-14 6.5 24 20-20.3 JX-M22-DL 22 10-14 6.5 24 22-22.3 JX-M24-DL 24 10-14 6.5 24/27 24-24.3 JX-M25-DL 25 13-18 7 30 25-25.3 JX-M27-DL 27 13-18 7 30 27-27.3 JX-M28-DL 28 13-18 7 30 28-28.3 JX-M30-DL 30 13-18 8 30/32 30-30.3 JX-M32-DL 32 18-25 8 40 32-32.3 JX-M33-DL 33 18-25 8 40 33-33.3 JX-M36-DL 36 18-25 8 40 36-36.3 JX-M37-DL 37 18-25 8 40 37-37.3 JX-M40-DL 40 22-32 8 50 40-40.3 JX-M42-DL 42 22-32 8 50 42-42.3 JX-M47-DL 47 22-32 8 50 47-47.3 JX-M48-DL 48 22-32 8 50/52 48-48.3 JX-M50-DL 50 32-38 9 57 50-50.3 JX-M54-DL 54 32-38 9 57 54-54.3 JX-M56-DL 56 32-38 9 57/59 56-56.3 JX-M60-DL 60 37-44 10 64 60-60.3 JX-M63-DL 63 37-44 10 64/68 63-63.3 JX-M64-DL 64 37-44 10 64 64-64.3 Code Thread O.D
(mm) Cable range
(mm) Thread length
GL(mm) Spanner Size
(mm) Panel Mounting Hole
(mm) JX-PG7-DL 12.5 3-6.5 5 14 12.5-12.8 JX-PG9-DL 15.2 4-8 6 17 15.2-15.5 JX-PG11-DL 18.6 5-10 6 20 18.6-18.9 JX-PG13.5-DL 20.4 6-12 6.5 22 20.4-20.7 JX-PG16-DL 22.5 10-14 6.5 24 22.5-22.8 JX-PG21-DL 28.3 13-18 7 30 28.3-28.6 JX-PG29-DL 37 18-25 8 40 37-37.3 JX-PG36-DL 47 22-32 8 50 47-47.3 JX-PG42-DL 54 32-38 9 57 54-54.3 JX-PG48-DL 59.3 37-44 10 64 59.3-59.6
Welcome to send inquiry to us..(We provide customization service)
